Weiler E2850 - Machine - 10 Hour Grease

1

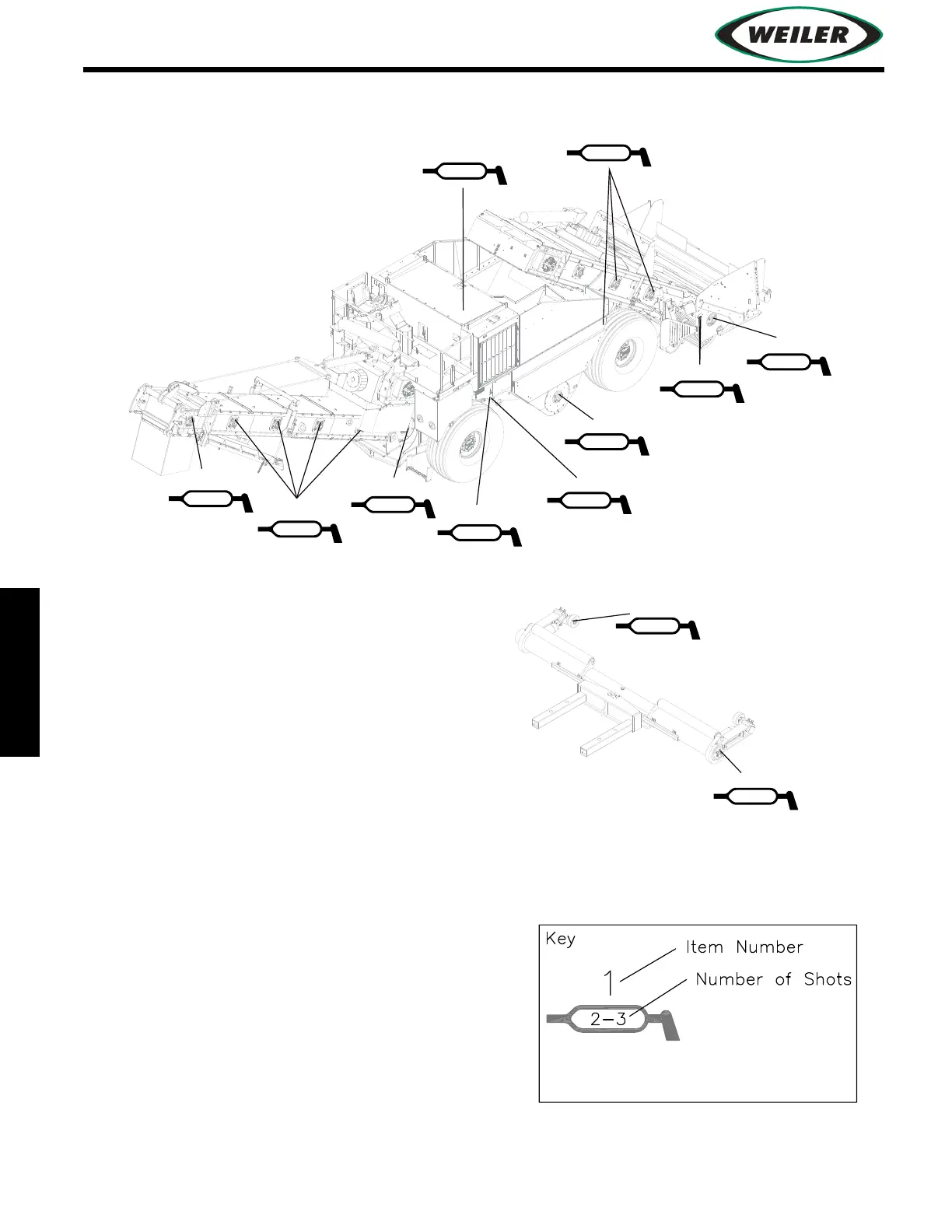

WEILER E2850 REMIXING TRANSFER VEHICLE
5-36
Maintenance
5
Maintenance Procedures
Machine - 10 Hour Grease
3
Under Hood
2*
4*
5*
7*
8*
7*
9
2
1 Each Roller
10
1 Each Extension
12
5
12
12
2
12
12
12
12
6*
12
1
2
* Indicates grease points are located on both
sides of machine.
5
Item Description Item No.
Clutch Throw-Out Collar . . . . . . . . . . . . . . . . 1
Discharge Conveyor Footshaft Bearings . . . . 2
Discharge Conveyor Headshaft Bearing . . . . 3
Discharge Conveyor Idler Bearings . . . . . . . . 4
Elevator Auger/Footshaft Bearings . . . . . . . . 5
Elevator Idler Bearings . . . . . . . . . . . . . . . . . . 6
Conveyor Auger/Footshaft Bearings. . . . . . . . 7
Conveyor Idler Bearings . . . . . . . . . . . . . . . . . 8
Truck Hitch Rollers . . . . . . . . . . . . . . . . . . . . . 9
Truck Hitch Extensions. . . . . . . . . . . . . . . . . . 10
