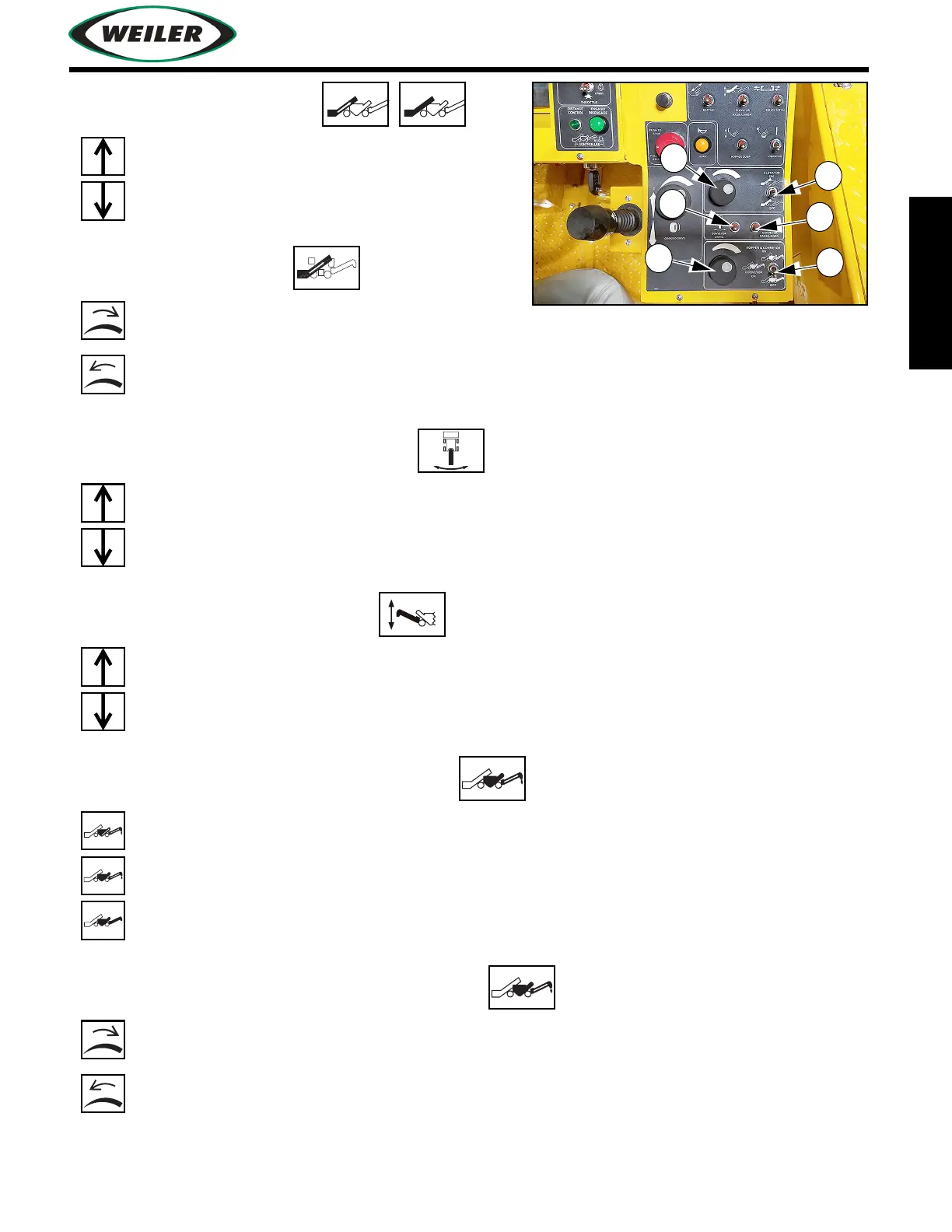

Machine Controls
2
Machine Controls
(12)
Elevator On/Off Switch
(13) Elevator Speed Dial
(14) Conveyor Swing Direction Switch
(15) Conveyor Raise/Lower Switch
(16) Hopper & Discharge Conveyor Switch
(17) Hopper & Discharge Conveyor Speed Dial
Push up to turn elevator on.
Push down to turn elevator off.
Turn CW to increase elevator forward speed.
Turn CCW to decrease elevator forward speed.
Push up to swing conveyor left.
Push down to swing conveyor right.
Push up to raise conveyor.
Push down to lower conveyor.
Push up to turn hopper and discharge
conveyor on.
Center to turn discharge conveyor on.
Push down to turn hopper and discharge
conveyor off.
Turn CW to increase conveyor forward speed.
Turn CCW to decrease conveyor forward
speed.
17
15
13
14
12
16
