Weiler E2850 - Dump Hopper Control Stations; Quicklub Greaser Manual Cycle Start Switch (Optional); Quicklub Indicator Light; Hopper Cleanout Door Switch

WEILER E2850 REMIXING TRANSFER VEHICLE
2-13
Machine Controls
2
Machine Controls
(6)
Quicklub® Greaser Manual Cycle Start Switch (Optional)
(7) Quicklub Indicator Light
Illuminates during lubrication cycle.

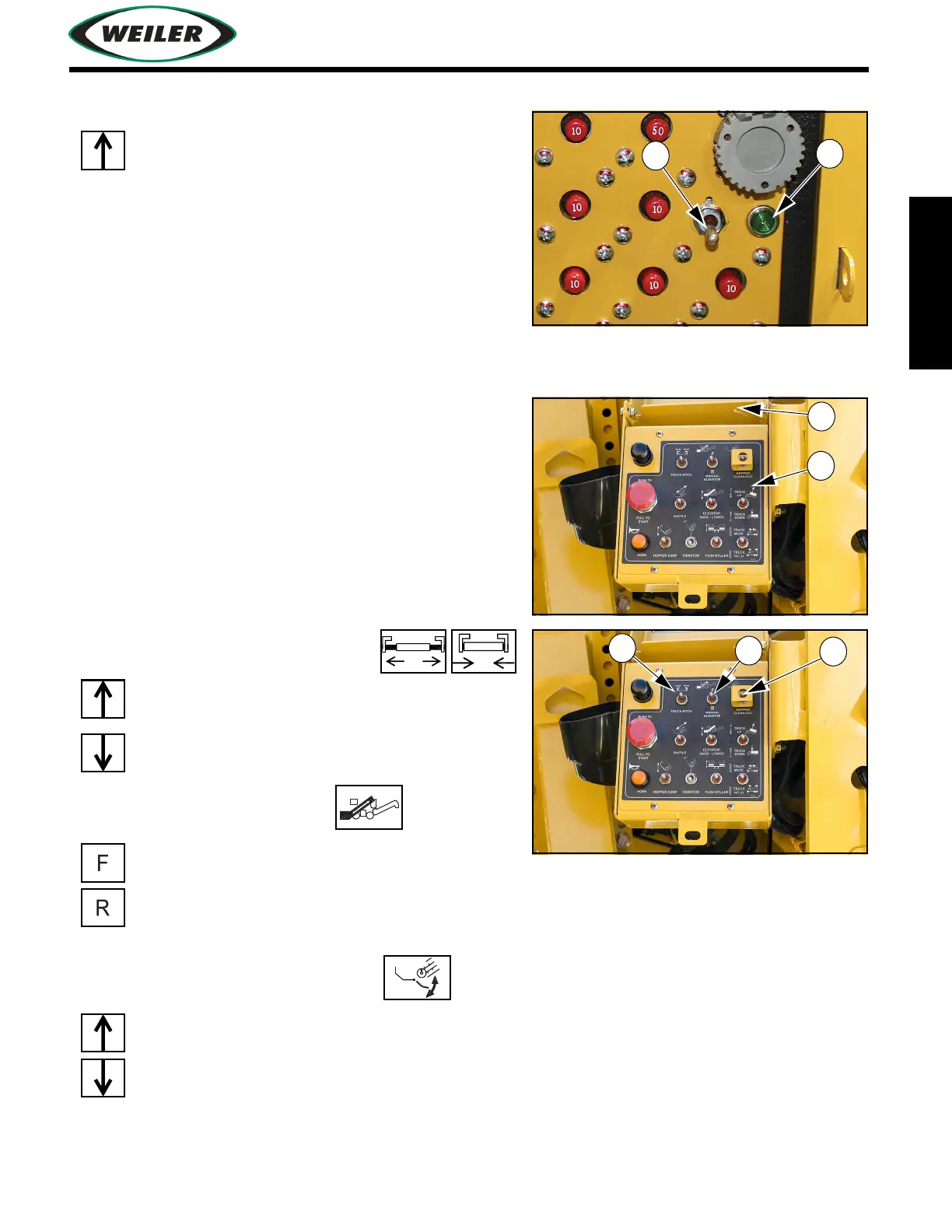

Dump Hopper Control Stations
Dump hopper control stations (A) are provided at rear of
dump hopper, on left and right sides of machine.
Dump hopper control stations are equipped with a light
for low-light use and a lockable hinged vandal cover (B)
to deter vandalism.
(1) Truck Hitch Switch (Optional)
(2) Manual Elevator Switch .
(3) Hopper Cleanout Door Switch
NOTICE: Do not lower elevator with dump hopper cleanout door open. Machine damage may result.
Press up and hold for two seconds to manually
start an additional lubrication cycle.
Push up to release truck wheels.
Push down to capture truck wheels.
Push up for forward.
Push down for reverse.
Push up to close hopper cleanout door.
Push down to open hopper cleanout door.
6
7
A
B
1
2
3
