WEILER E2850 REMIXING TRANSFER VEHICLE
2-14

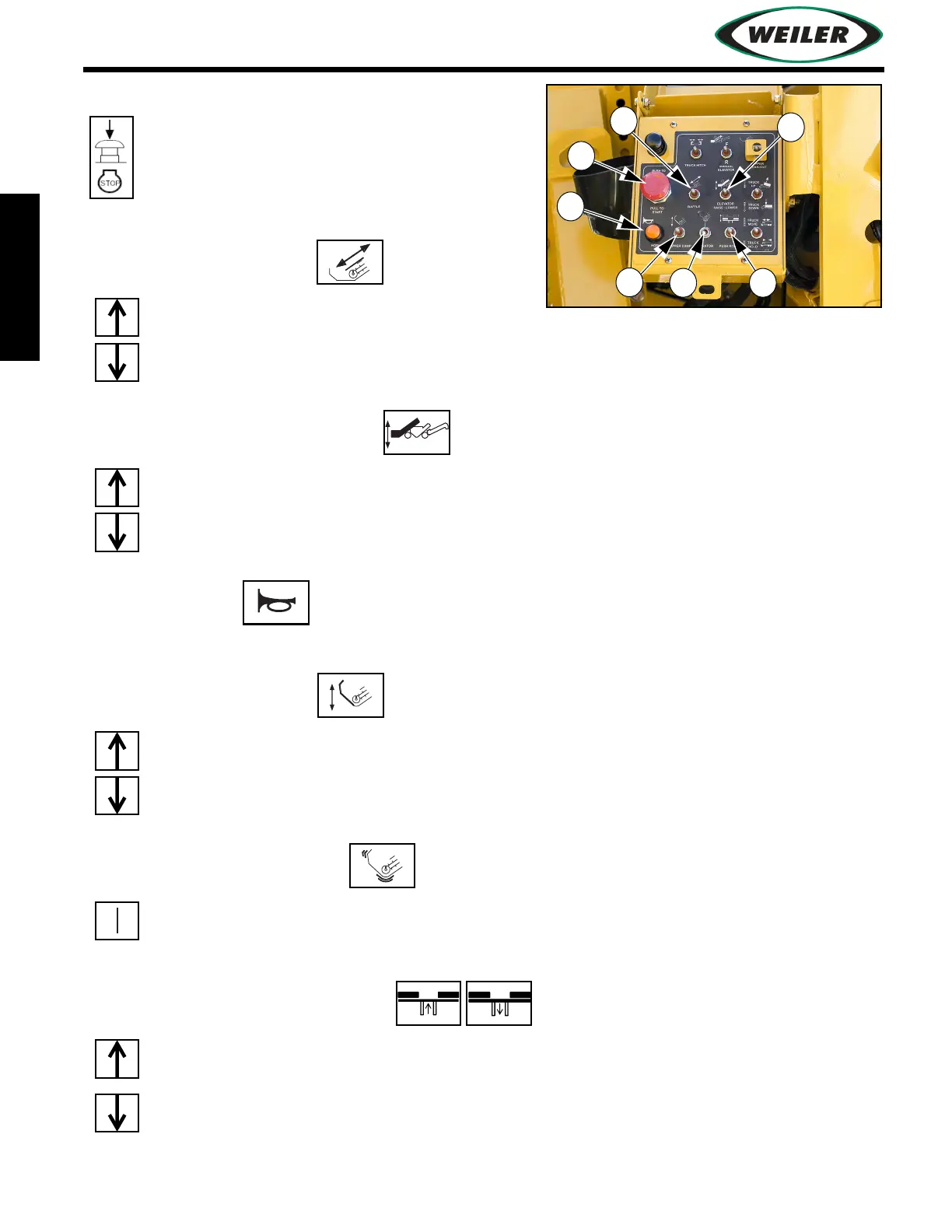

Machine Controls
2
Machine Controls
(4)
Engine Stop Button
(5) Hopper Baffle Switch
(6) Elevator Raise/Lower Switch
(7) Horn Button
Press to sound horn.
(8) Hopper Dump Switch
(9) Hopper Vibrator Switch
(10) Push Roller Extension Switch
Press in to stop engine quickly.
Pull out to enable engine startup.
Push up to open hopper baffle.
Push down to close hopper baffle.
Push up to raise elevator.
Push down to lower elevator.
Push up to raise dump hopper.
Push down to lower dump hopper.
Push up and hold to turn on vibrator.
Push up to extend push rollers.
Push down to retract push rollers.
8
5
6
7
9 10
4
