Weiler E2850 - Discharge Conveyor Lift Cylinder - Grease; Discharge Conveyor Swing Cylinders - Grease; Elevator Frame Pivot - Grease

WEILER E2850 REMIXING TRANSFER VEHICLE
5-43
Maintenance
5

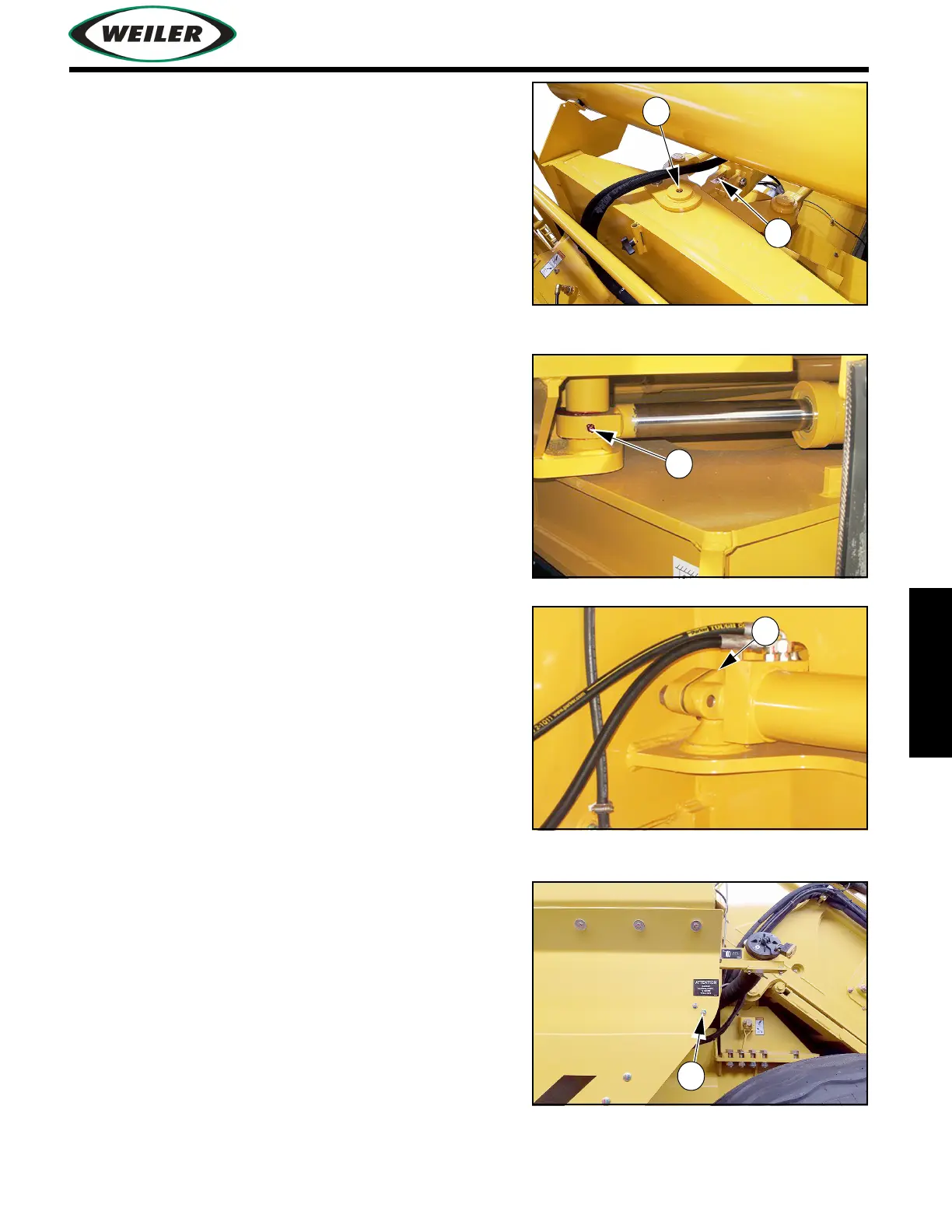

Maintenance Procedures
(6) Discharge Conveyor Frame Pivot Upper -
Grease
Two shots - one fitting on upper pivot frame
(7) Discharge Conveyor Lift Cylinder - Grease
Two shots - one fitting on cylinder barrel.
(8) Discharge Conveyor Swing Cylinders - Grease
Two shots - four fittings (two cylinders, two fitting on
each cylinder).
(9) Elevator Frame Pivot - Grease
Four shots - two fittings, one fitting on each side of
frame.
6
7
8
8
9
