WEILER E2850 REMIXING TRANSFER VEHICLE
2-30
Machine Controls
2
Machine Controls

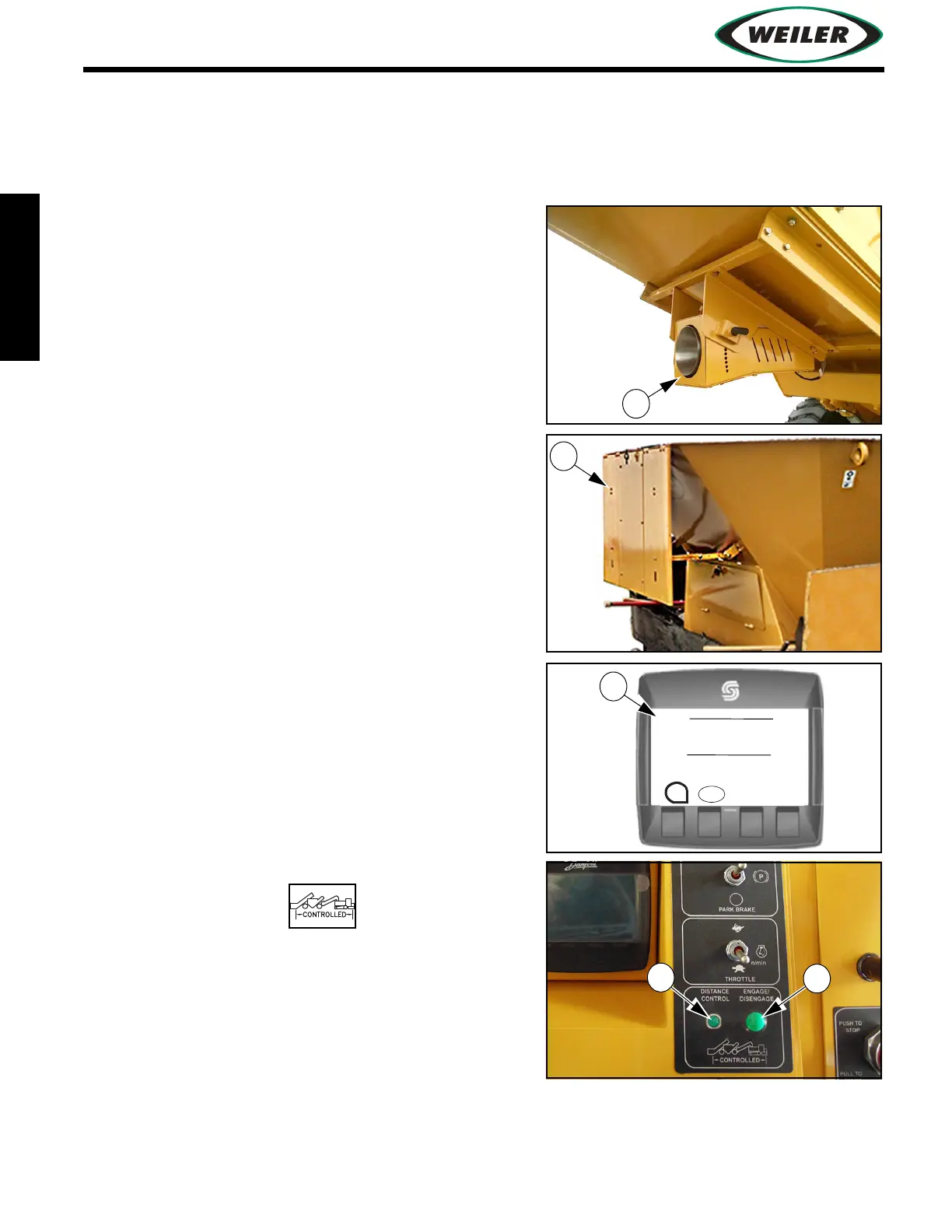

Distance From Paver Control System (Optional)
The Distance From Paver Control System maintains a set distance between the transfer vehicle and
asphalt paver by automatically adjusting ground drive speed. The system uses a sensor mounted on
the discharge conveyor to read the distance to a target mounted on the asphalt paver.
(1) Distance From Paver Control Sensor
Mounted on the discharge conveyor.
(2) Distance From Paver Control Target
Mounted on the paver.
(3) Electronic Display Screen
(4) Distance From Paver Control Engage/
Disengage Button
Push once to engage distance from paver control.
Push again to disengage distance from paver control.
(5) Distance From Paver Control LED Light
Illuminates when distance from paver control
system is engaged.
Refer to
"Distance From Paver Control System (Optional)", page 3-38 for additional information.
1
2
SET DISTANCE
0.0 FEET
ESC
ENGINE 0 RPM
SPEED 0 FPM
FUEL 0 PERCENT
GEN.
ON
ACTUAL DISTANCE
0.0 FEET
3
5
4
