Weiler E2850 - Machine - 500 Hour Grease

WEILER E2850 REMIXING TRANSFER VEHICLE
5-45
Maintenance
5
Maintenance Procedures

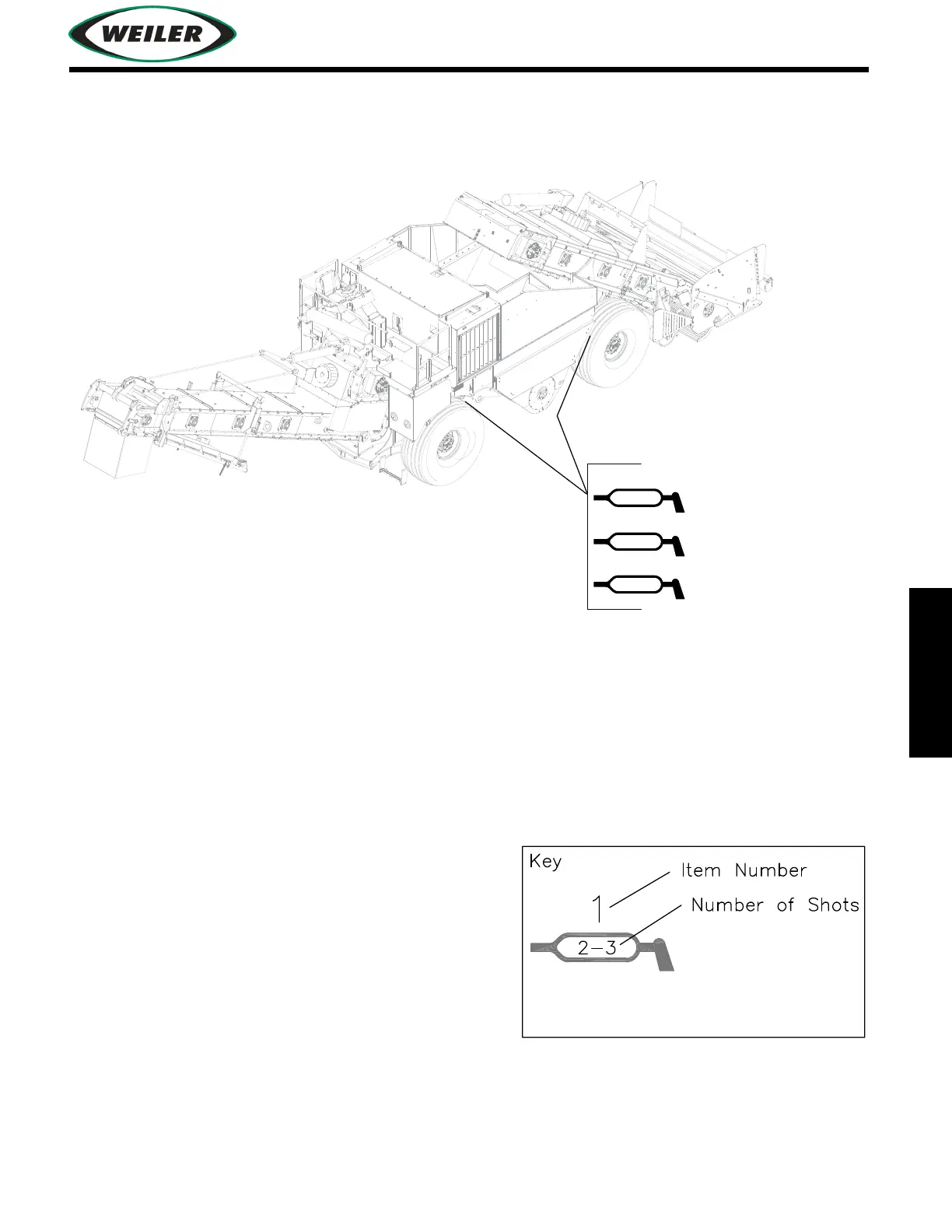

Machine - 500 Hour Grease
* Indicates grease points are located on both
sides of machine.
2
2*
2
3*
2
1*
Item Description Item No.
Steering Cylinders . . . . . . . . . . . . . . . . . . . . . . 1
Steering Knuckles . . . . . . . . . . . . . . . . . . . . . . 2
Tie-Rod Ends . . . . . . . . . . . . . . . . . . . . . . . . . . 3
