Machine Controls
2
Machine Controls
Conveyor Service Control Station

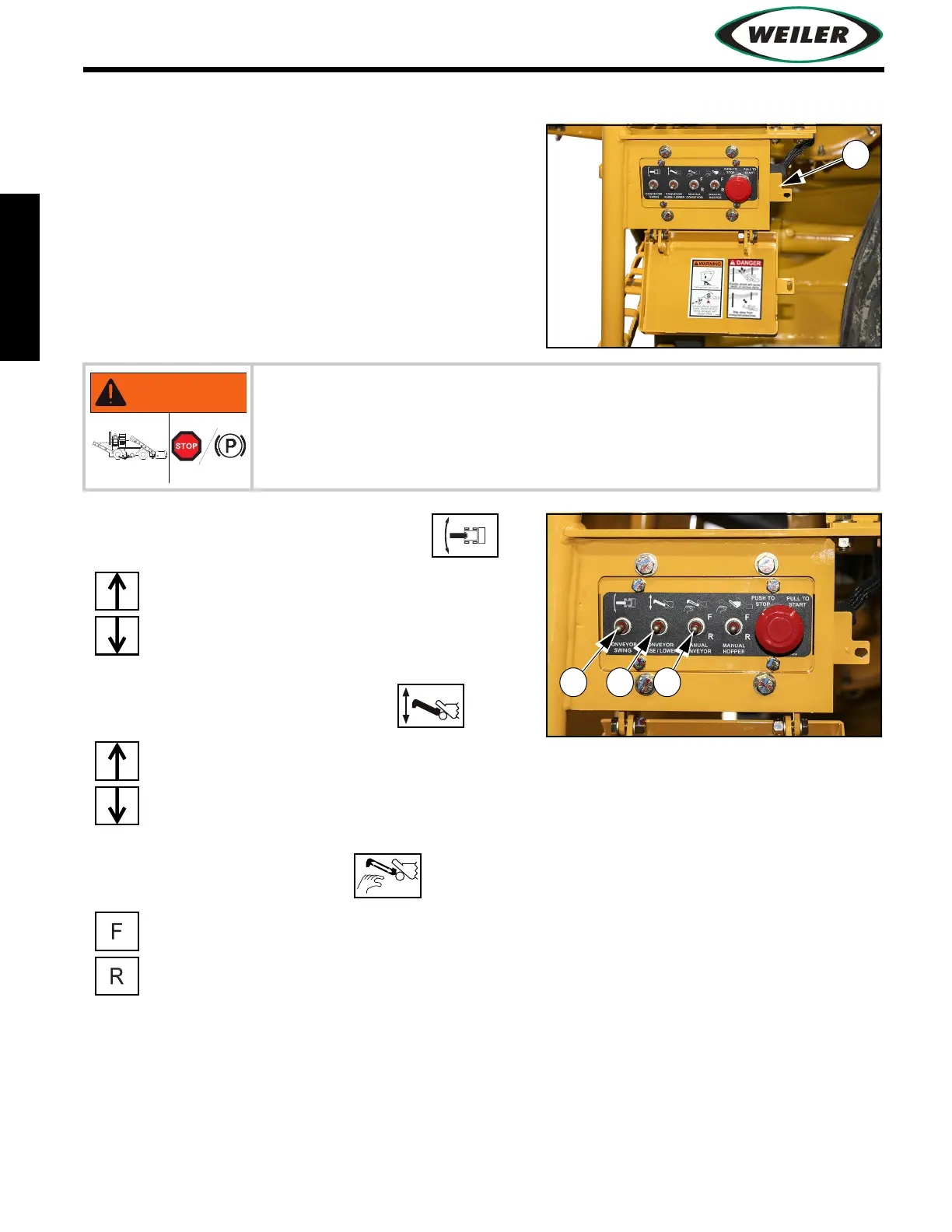

The conveyor service control station (A) is located on
ladder at right rear of machine and is lockable to deter
vandalism.
(1) Conveyor Swing Direction Switch
(2) Conveyor Raise/Lower Switch
(3) Manual Conveyor Switch
WARNING
Death or serious injury may result if machine moves while operating the
controls.
Ensure machine ground drive is stopped and park brake is engaged before
using conveyor station controls.
Push up to swing conveyor left.
Push down to swing conveyor right.
Push up to raise conveyor.
Push down to lower conveyor.
Push up for forward.
Push down for reverse.
A
1 2 3
