Weiler E2850 - Left Control Panel; Platform Shift Switch; Extraction Fans Switch; Front Hopper Baffle Switch

WEILER E2850 REMIXING TRANSFER VEHICLE
2-5
Machine Controls
2
Machine Controls

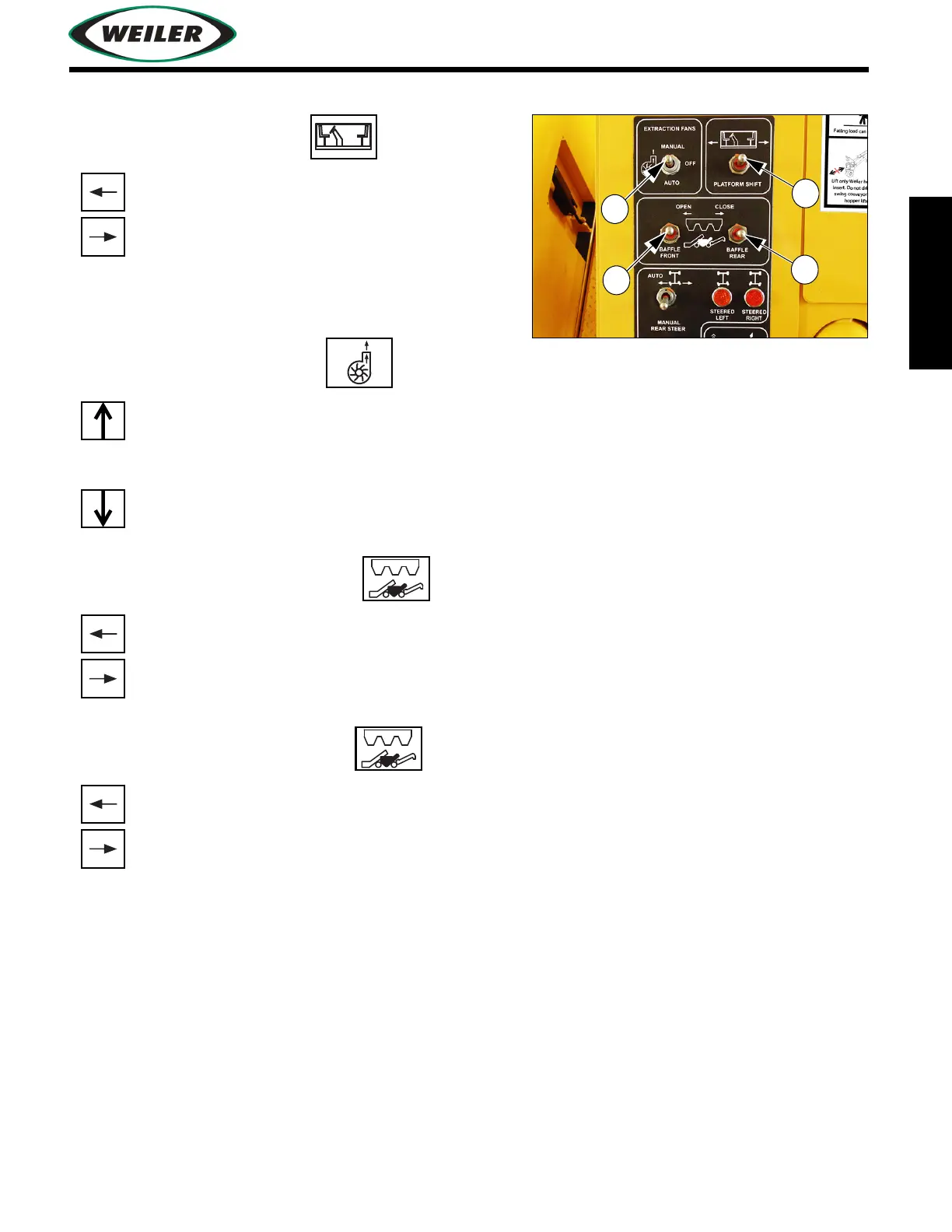

Left Control Panel
(1) Platform Shift Switch
NOTICE: Platform shift lock must be disengaged prior
to operating platform shift.
(2) Extraction Fans Switch
(3) Front Hopper Baffle Switch
(4) Rear Hopper Baffle Switch
Push left to shift platform left.
Push right to shift platform right.
Push up to turn fans on in manual mode (always on).
Center to turn fans off.
Push down to turn fans on in automatic mode (fans
turn on and off automatically with elevator).
Push left to open front hopper baffle.
Push right to close front hopper baffle.
Push left to open rear hopper baffle.
Push right to close rear hopper baffle.
1
2
3
4
