Weiler E2850 - Windrow Assembly Installation

WEILER E2850 REMIXING TRANSFER VEHICLE
3-21
Operating Instructions
3
Preparing Machine

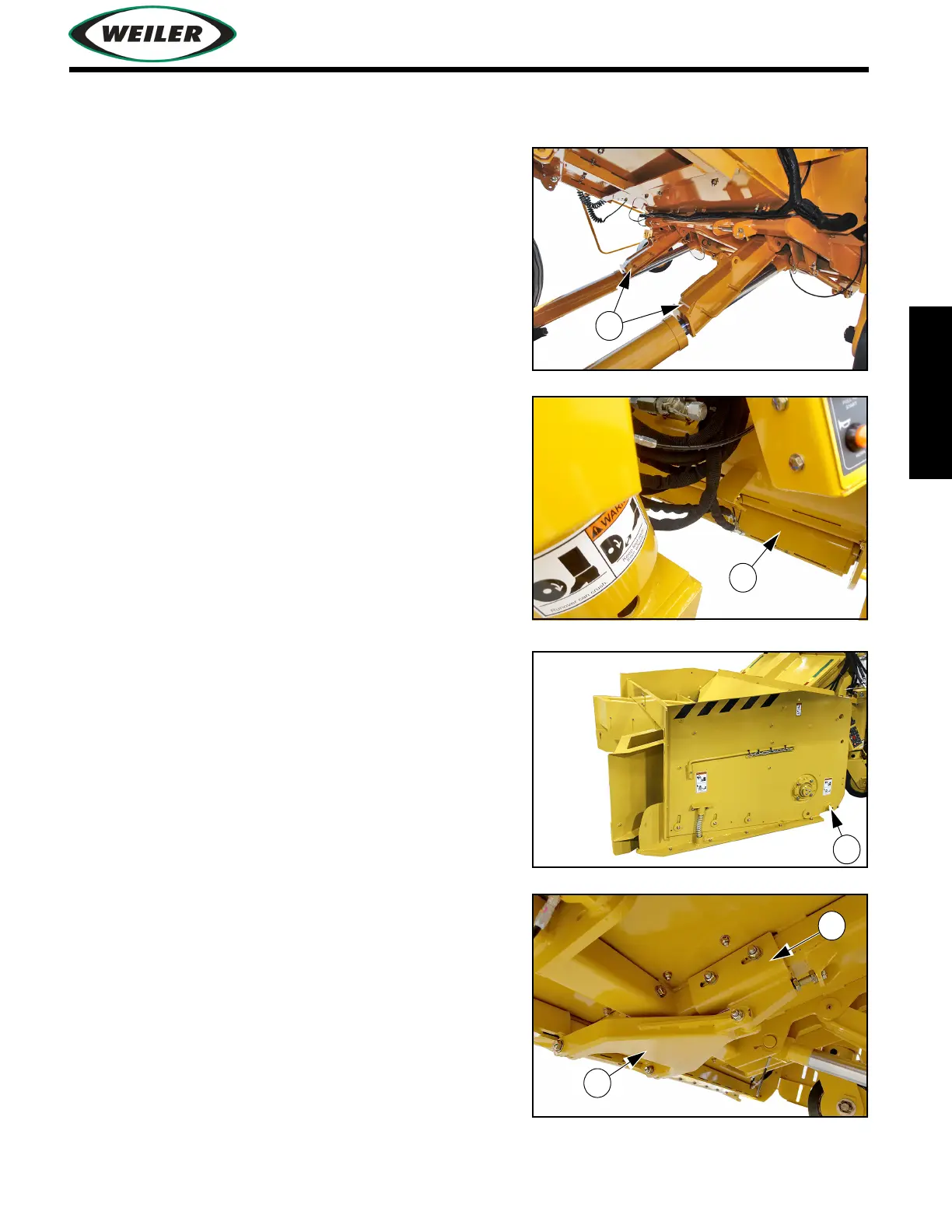

Windrow Assembly Installation
1. Fully raise elevator. Turn engine off and remove ignition key.
2. Engage both elevator lift cylinder stops (1), or
securely support elevator with suitable blocking.
3. Using a suitable lifting device, position scraper
mount assembly (2), with grader edges attached,
under dump hopper. Attach scraper mount assembly
to elevator with two pins (3).
4. Install center pivot, sheer pin plate(4), and sheer pin
linkage (5).
Leave center pivot loose to ease installation. Tighten
after sheer pin plate and sheer pin linkage have
been installed.
1
2
3
4
5
