WEILER E2850 REMIXING TRANSFER VEHICLE
2-35
Machine Controls
2
Machine Controls

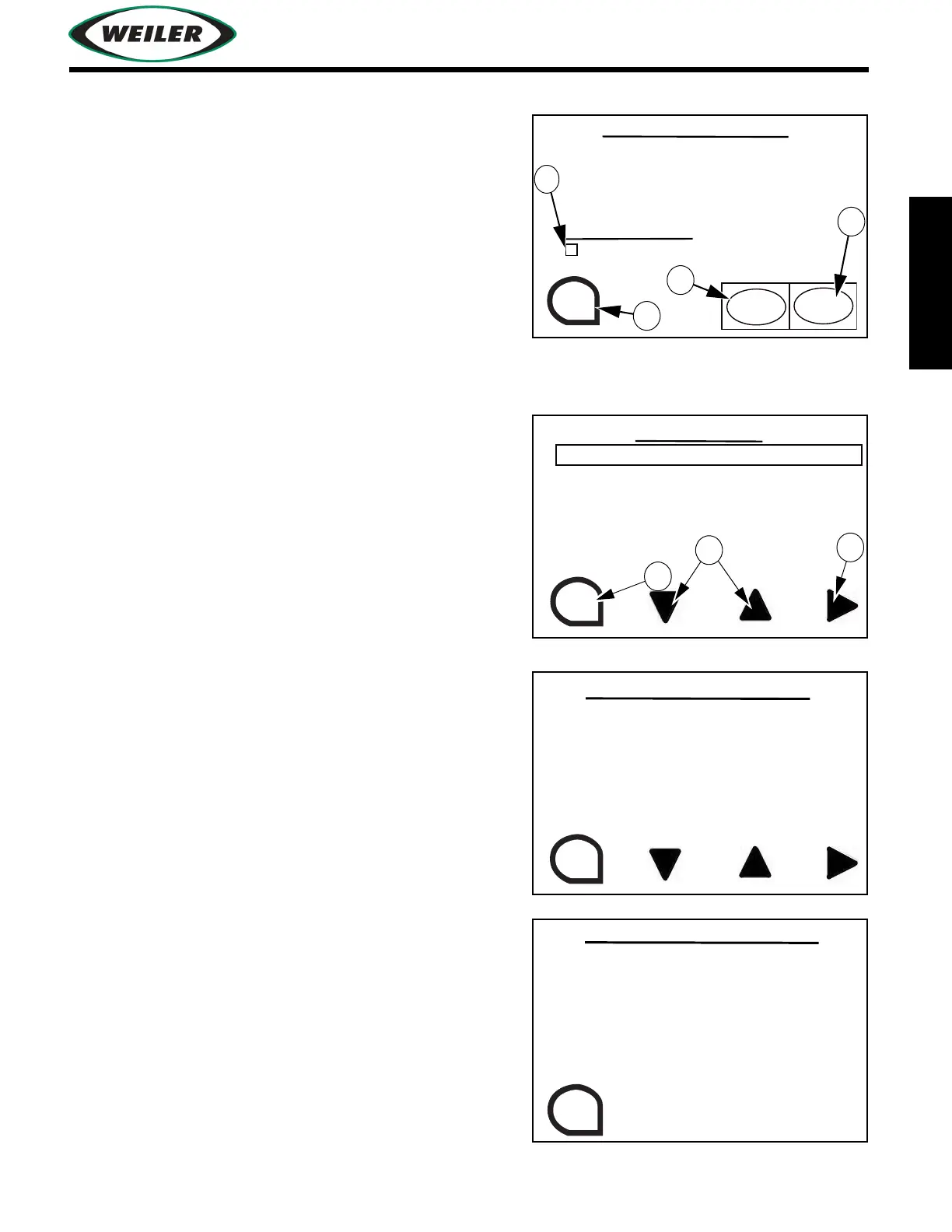

Conveyor Spray Down Control Screen
(1) ESC Button
Press to exit to previous screen.
(2) CYCLE START Button
Press to run conveyor spray down cycle.
(3) MODE button
Press to enter tire spray down screen.
Time remaining in conveyor spray down cycle is displayed
(A).
Menu Screen Display
(1) Use up and down buttons to move box over selection
of screen to enter.
(2) Press to enter selected screen.
(3) Press to exit to previous screen.
View Engine Diagnostics 1 Screen
(1) Press to exit to previous screen.
The up, down, and enter arrows do not function in
diagnostics screens.
View Engine Diagnostics 2 Screen
(1) Press to exit to previous screen.
WASH DOWN CONTROL
WARNING! CONVEYOR WASH
WILL TURN ON ALL FEEDER
CHAINS WHEN ACTIVATED
CONVEYOR WASH (MANUAL ACTIVE)
ESC
SEC. REMAINING
CYCLE
START
MODE
CONVEYOR WASH MODE
1
2
3
A
MENU SCREEN
ESC
VIEW ENGINE DIAGNOSTICS 1
VIEW ENGINE DIAGNOSTICS 2
VIEW DRIVE DIAGNOSTICS
VIEW ELEVATOR/CONVEYOR DIAGNOSTICS
SENSOR DIAGNOSTICS
VIEW CAN
SYSTEM SETTINGS
VIEW ERRORS
3
2
1
VIEW ENGINE DIAGNOSTICS 1
ESC
ENGINE SPEED
PERCENT LOAD
COOLANT TEMPERATURE
FUEL PRESSURE
FUEL LEVEL
FUEL SENSOR SIGNAL
OIL PRESSURE
BOOST PRESSURE
HYDRAULIC OIL TEMPERATURE
THROTTLE SWITCH
0 RPM
0 PERCENT
0
O
F
0 PSI
0 PERCENT
0 (mV)
0 PSI
0 kPa
0
O
F
HIGH
VIEW ENGINE DIAGNOSTICS 2
ESC
HOURS
BATTERY
GENERATOR
MANIFOLD TEMPERATURE
ELEVATOR PRESSURE
STORAGE PRESSURE
CONVEYOR PRESSURE
0.0 HRS.
0.0 VDC
0 (ON/OFF)
0
O
F
0 PSI
0 PSI
0 PSI
