Weiler E2850 - Page 235

Schematics
C
WEILER E2850 REMIXING TRANSFER VEHICLE
C-43
Schematics

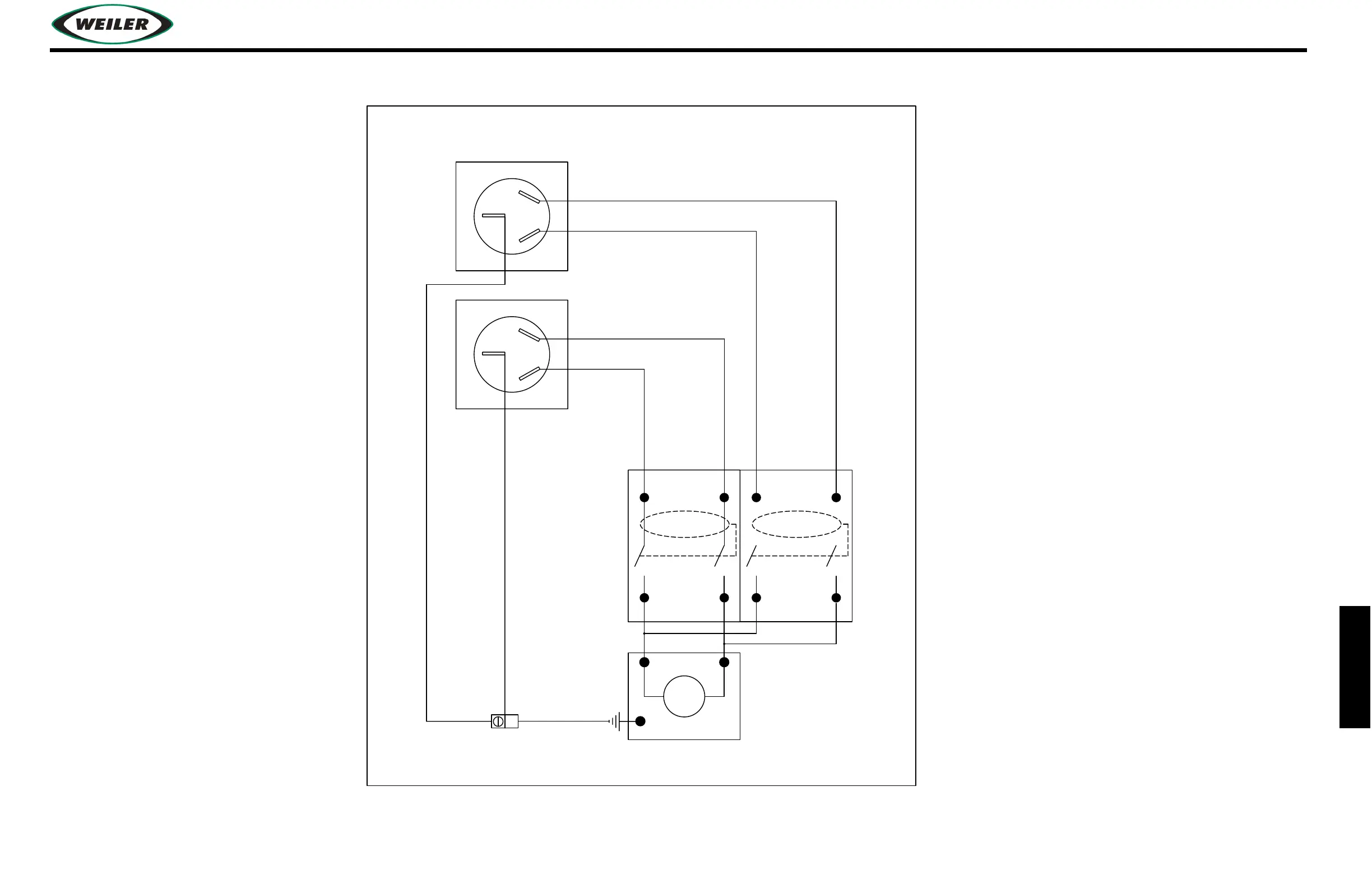

ELECTRICAL SCHEMATIC – S/N 1144–1149 (INCLUDES AUSTRALIA MACHINE)
AUSTRALIAN WIRING COLORS
RED - ACTIVE (POWER)
BLACK - NEUTRAL
GREEN - EARTH (GROUND)
RED GRN
E
AN
2 N
1
N
2 NN
1
NA
E
22707
GENERATOR 10kw 50HZ
w/P2 CAPACITOR
38692
10A CIRCUIT BREAKER
240V, TYPE QOU, 2 POLE
38692
10A CIRCUIT BREAKER
240V, TYPE QOU, 2 POLE
38693
RCD OUTLET, 10A-230V
50/60HZ 2 POLE
PLATFORM OUTLET
38693
RCD OUTLET, 10A-230V
50/60HZ 2 POLE
FRONT ELEV. OUTLET
15165
GROUND LUG
E2850-134
12GA RED10GA RD
10GA BK 12GA BLACK
12GA GREEN
12GA BLACK
12GA RED
10GA GREEN
12GA GREEN
PAGE 9
