WEILER E2850 REMIXING TRANSFER VEHICLE
C-48
Schematics

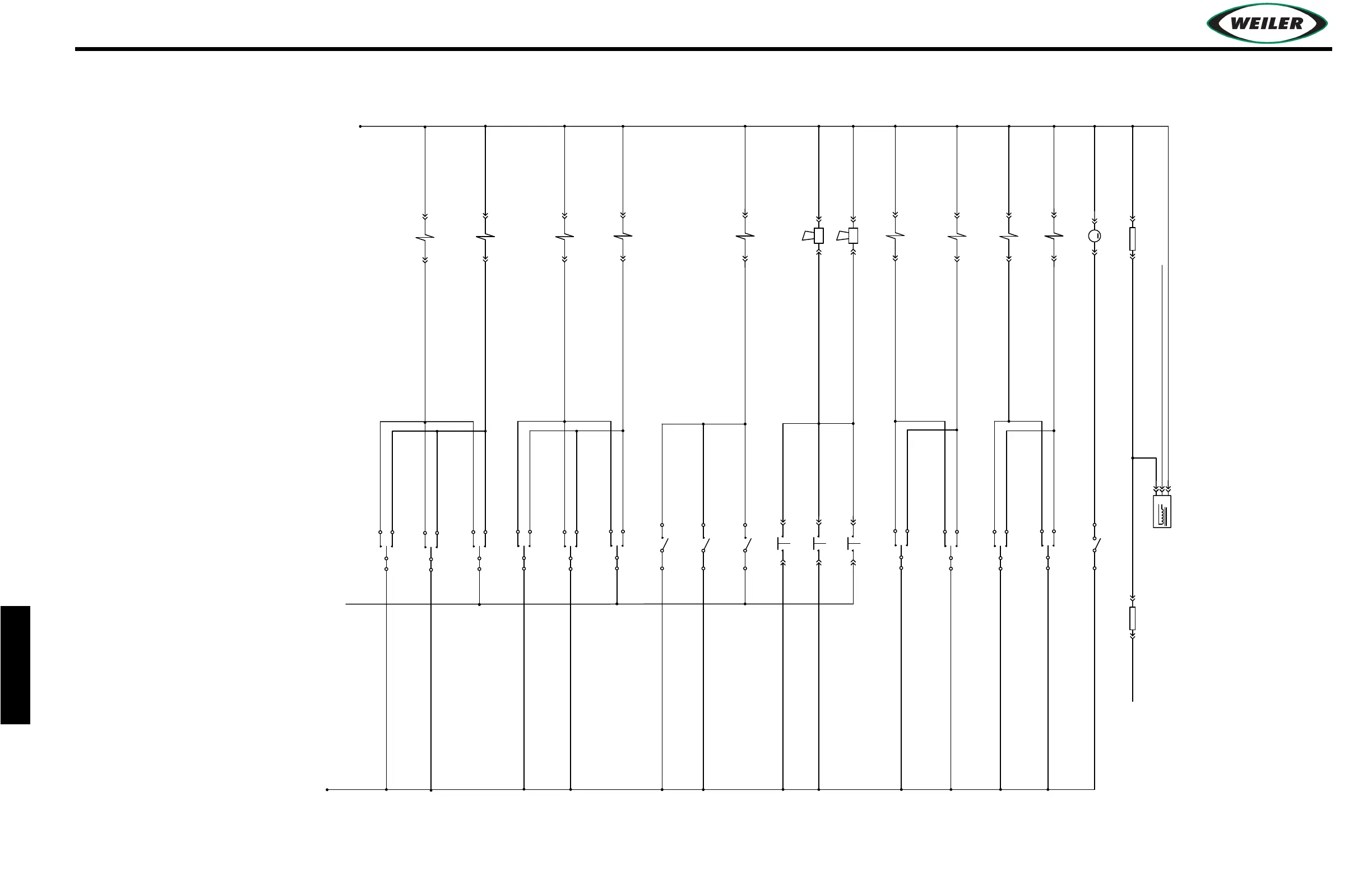

ELECTRICAL SCHEMATIC – S/N 1150–1153
TO MICRO #2 CB-10
250 ohm
TO MICRO #2 PIN C2P2
GROUND SPEED
250 ohm
GND
SIG
B
C
+V
A
9791
LH REMOTE HORN
ORANGE 3931
VIBRATOR
ORANGE 3931
LH REMOTE PUSH ROLLER
3
RH REMOTE PUSH ROLLER
RH REMOTE HOPPER CLEAN OUT
LH REMOTE HOPPER CLEAN OUT
SPRAY DOWN WAND
RH REMOTE HORN
HORN
ORANGE 3931
2
2
2
2
2
1
1
3
1
3 1
3
1
1
2
VIBRATOR ON
PUSH ROLLER IN "A" COIL
PUSH ROLLER OUT "B" COIL
HOPPER CLEAN OUT CLOSE "B" COIL
HOPPER CLEAN OUT OPEN "A" COIL
SPRAY DOWN
DC MOTOR
REAR HORN 8160
FRONT HORN 8160
2A
2A 2A
2A
3.5A
2A
M
1
3
ELEV BAFFLE
3
LH REMOTE VIBRATOR
LH REMOTE ELEV BAFFLE
RH REMOTE ELEV BAFFLE
RH REMOTE VIBRATOR
3
3
1
HOPPER DUMP
RH REMOTE HOPPER DUMP
LH REMOTE HOPPER DUMP
2
2
2
2
2
2
2
2
3
1
1
3
1
1
3
BAFFLE CLOSE "B" COIL
BAFFLE OPEN "A" COIL
HOPPER DUMP LOWER "B" COIL
HOPPER DUMP RAISE "A" COIL
2A
2A
2A
2A
C1435518
9791
6129
6128 6128 6128 6128
6132
6132 6132
6128
6128
6128 6128 6128 6128
3
100-YL
101-BU
18-OR
69-TN
68-GN 67-BR
52-GY
51-PK
79-YL
80-YL w/RD
65-TN w/RD 66-BU w/RD
63-BR w/RD
64-PU w/WH
FROM PAGE 4
FROM PAGE 4
FROM PAGE 4
PAGE 5
