5.4 d: Reference Settings
YASKAWA ELECTRIC SIEP C710616 27G YASKAWA AC Drive A1000 Technical Manual 199
Parameter Details
5
• Multi-Step Speed 2
When setting terminal A3’s analog input to
Multi-Step Speed 2, set H3-06 (Terminal A3 Function Selection) to 2
(Auxiliary frequency reference 1). When setting d1-02 (Frequency Reference 2) to Multi-Step Speed 2, set H3-06 to F
(Through mode).
• Multi-Step Speed 3
When setting terminal A2’s analog input to
Multi-Step Speed 3, set H3-10 (Terminal A2 Function Selection) to 3
(Auxiliary frequency reference 2).
When inputting 0 to 10 V to terminal A2
’s analog input, set H3-09 to 0, and DIP switch S1 on the control circuit
terminal board to V (voltage).

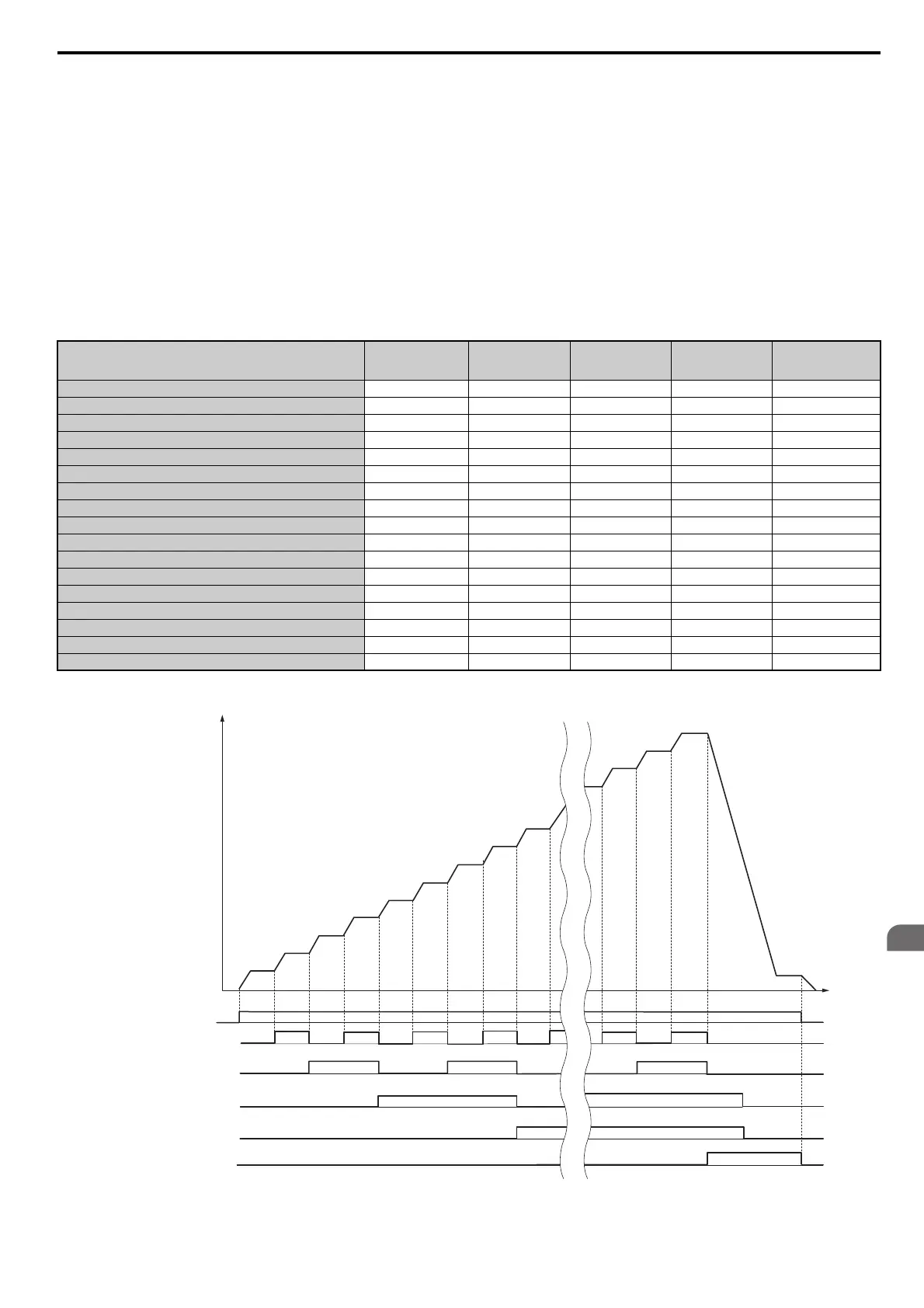

The different speed references can be selected as shown in Table 5.18. Figure 5.45 illustrates the multi-step speed
selection.
Table 5.18 Multi-Step Speed Reference and Terminal Switch Combinations
Figure 5.45
Figure 5.45 Preset Reference Timing Diagram
Reference
<1> The Jog frequency overrides whatever frequency reference is being used.
Multi-Step
Speed
H1-=3
Multi-Step
Speed 2
H1-=4
Multi-Step
Speed 3
H1-=5
Multi-Step
Speed 4
H1-=32
Jog Reference
H1-=6
Frequency Reference 1 (set in b1-01) OFF OFF OFF OFF OFF
Frequency Reference 2 (d1-02 or input terminal A1, A2, A3) ON OFF OFF OFF OFF
Frequency Reference 3 (d1-03 or input terminal A1, A2, A3) OFF ON OFF OFF OFF
Frequency Reference 4 (d1-04) ON ON OFF OFF OFF
Frequency Reference 5 (d1-05) OFF OFF ON OFF OFF
Frequency Reference 6 (d1-06) ON OFF ON OFF OFF
Frequency Reference 7 (d1-07) OFF ON ON OFF OFF
Frequency Reference 8 (d1-08) ON ON ON OFF OFF
Frequency Reference 9 (d1-09) OFF OFF OFF ON OFF
Frequency Reference 10 (d1-10) ON OFF OFF ON OFF
Frequency Reference 11 (d1-11) OFF ON OFF ON OFF
Frequency Reference 12 (d1-12) ON ON OFF ON OFF
Frequency Reference 13 (d1-13) OFF OFF ON ON OFF
Frequency Reference 14 (d1-14) ON OFF ON ON OFF
Frequency Reference 15 (d1-15) OFF ON ON ON OFF
Frequency Reference 16 (d1-16) ON ON ON ON OFF
Jog Frequency Reference (d1-17) <1>     ON
Time
Frequency
reference
FWD (REV) Run/Stop
d1-01
(A1)
d1-02
(A2)
d1-04
d1-05
d1-06
d1-07
d1-17
d1-09
d1-08
d1-14
d1-15
d1-16
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
d1-03
(A3)
Multi-step Speed Ref. 2
Multi-step Speed Ref. 3
Jog Reference
Multi-step Speed Ref. 1
Multi-step Speed Ref. 4
