Wire Gauges and Tightening Torques
Wire gauge and torque specifications are listed in Table 8.10. For simpler and more reliable wiring, use crimp ferrules on
the wire ends. Refer to the option manuals for
the wire size and torque specifications of other options.

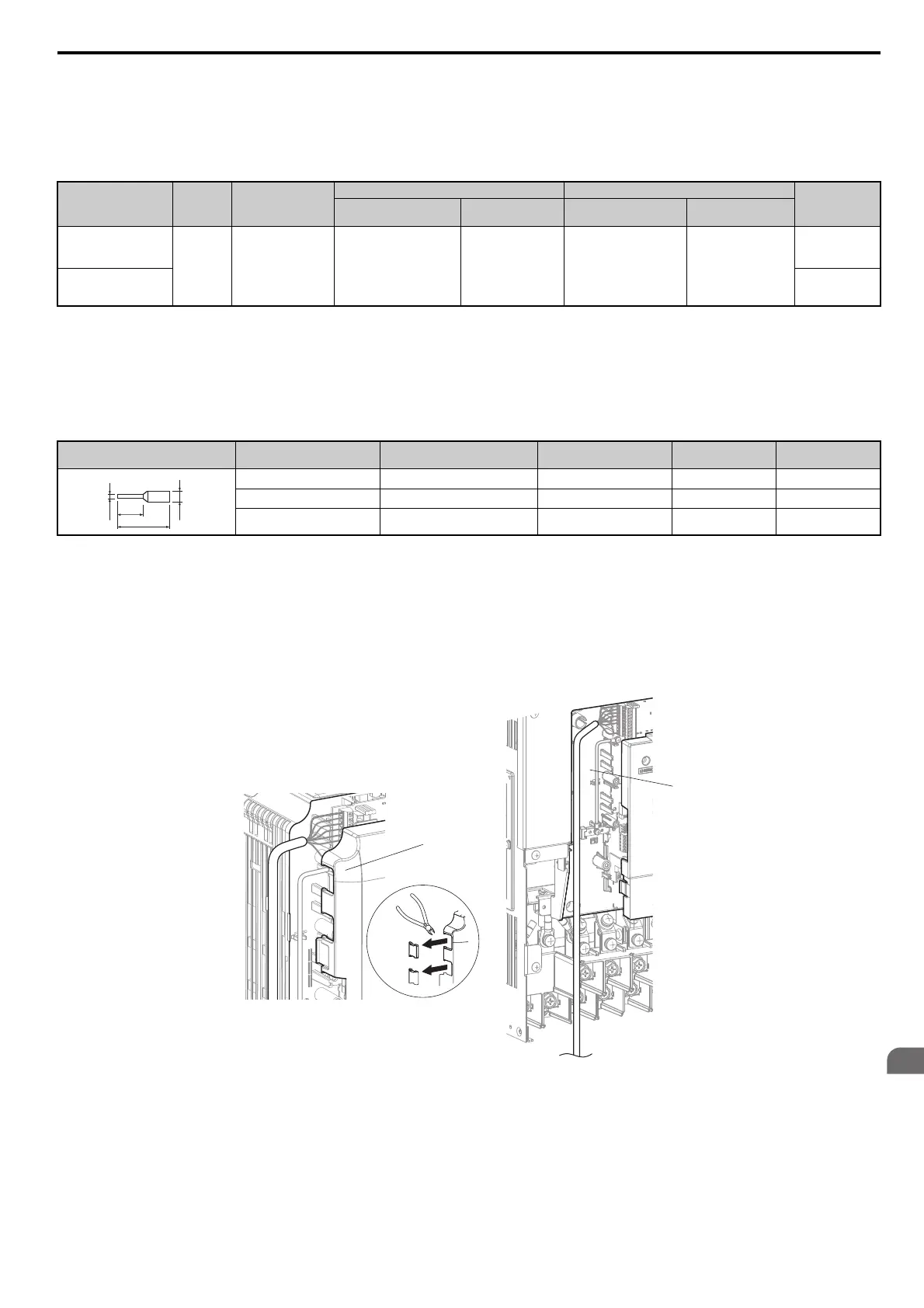

Table 8.10 Wire Gauges and Tightening Torques
Crimp Terminals
YASKAWA recommends using CRIMPFOX 6 by Phoenix Contact or equivalent crimp terminals with the specifications
listed in Table 8.11 for wiring to ensure proper connections.
Note: Properly trim wire ends so loose wire ends do not extend from the crimp terminals.
Table 8.11 Crimp Terminal Sizes
6. Route the option wiring.
Depending on the drive model, some drives may require routing the wiring through the side of the front cover to
the outside. For drive models CIMR-A2A0004 through 2A0040 and 4A0002 through 4A0023, cut out the
perforated openings on the left side of the drive front cover as shown in Figure 8.14-A and leave no sharp edges
to damage wiring. 
Route the wiring inside the enclosure as shown in Figure 8.14-B for drive models CIMR-A2A0056 through
2A0415 and 4A0031 through 4A1200 that do not require routing through the front cover.
Figure 8.12
Figure 8.14 Wire Routing Examples
Terminal Signal
Screw
Size
Tightening Torque
Nm
(inlb)
Bare Cable Crimp Terminals
Wire Type
Recomm. Gauge
mm
2
Applicable Gauges
mm
2
Recomm. Gauge
mm
2
Applicable Gauges
mm
2
A+, A–, B+,
B–, Z+, Z–,
SD, FE, IP, IG
M2
0.22 to 0.25
(
1.95 to 2.21)
0.75
(18 AWG)
Stranded wire:
0.25 to
1.0
(24 to 17 AWG)
Solid wire:
0.25 to 1.5
(24 to 16 AWG)
0.5
(2
0 AWG)
0.25 to 0.5
(24 to 20 AWG)
Shielded twisted
pair, etc.
a+, a–, b+,
b–,
z+, z–, SG
Shielded cable,
etc.
Wire Gauge
mm
2
Phoenix Contact Model
L
mm (in)
d1
mm (in)
d2
mm (in)
0.25 (24 AWG) AI 0.25 - 6YE 10.5 (13/32) 0.8 (1/32) 2 (5/64)
0.34 (22 AWG) AI 0.34 - 6TQ 10.5 (13/32) 0.8 (1/32) 2 (5/64)
0.5 (20 AWG) AI 0.5 - 6WH 14 (9/16) 1.1 (3/64) 2.5 (3/32)
A – Route wires through the openings
provided on the left side of the front
cover. <1>
(CIMR-A2A0004 to2A0040, 4A0002
to 4A0023)
<1> The drive will not meet IP20/NEMA 1, UL Type 1 requirements if wiring is exposed outside the enclosure.
B – Use the open space provided inside
the drive to route option wiring. 
(CIMR-A2A0056 to 2A0415, 4A0031
to 4A1200)
