3.9 Control Circuit Wiring
86 YASKAWA ELECTRIC SIEP C710616 27G YASKAWA AC Drive A1000 Technical Manual
NOTICE: Use shielded twisted-pair cables as indicated to prevent operating faults. Improper wiring practices could result in drive or
equipment malfunction due to electrical interference.
Connect control wires as shown in Figure 3.24 and Figure 3.25.
Figure 3.27

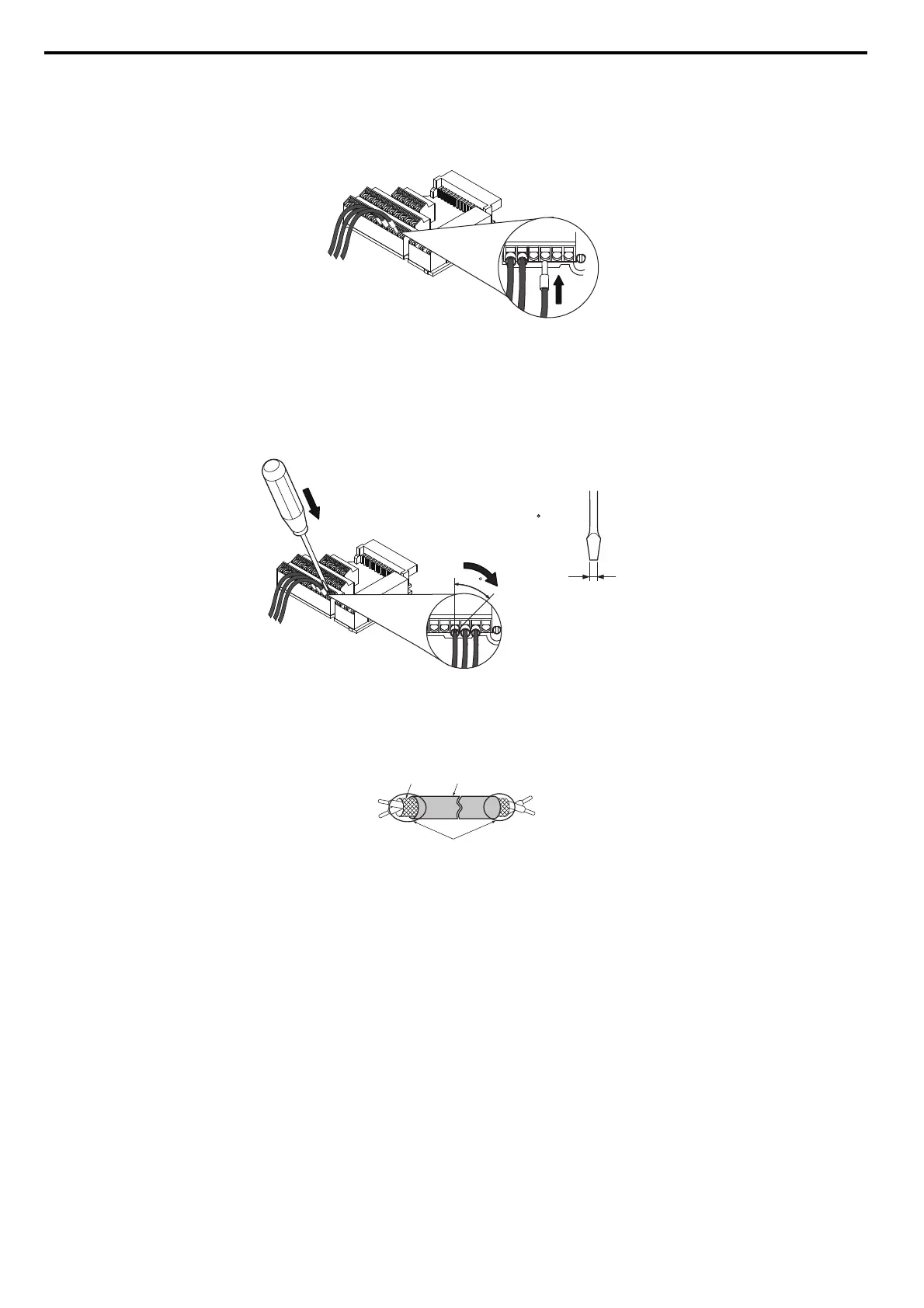

Figure 3.24 Terminal Board Wiring Guide
To disconnect control wires from the terminals use the procedure described in Figure 3.25. Grasp the wire where it
enters the terminal with a pair of pliers, then use
a straight-edge screw driver to release the terminal and pull the wire out.
If it fits tightly, e.g. if ferrules are used, turn the wire for about 45 and then pull it gently out. Use this procedure to
remove the wire jumper between terminals HC, H1 and H2 that is preinstalled at shipping.
Figure 3.28
Figure 3.25 Removing Wires from the Terminal Board
When setting the frequency by analog reference from an external potentiometer, use shielded twisted-pair wires (treating
wire ends as shown in Figure 3.26 and connect the shield to the ground terminal (E
[G]) of the drive.
Figure 3.29
Figure 3.26 Preparing the Ends of Shielded Cables
NOTICE: The analog signal wiring between the drive and the operator station or peripheral equipment should not exceed 50 meters
when using an analog signal from a remote source to supply the frequency reference. Failure to comply could result in poor system
performance.
A – Drive side D –Shield sheath (insulate with tape)
B – Insulation E –Shield
C – Control device side
Terminal Board
Control Wires
Push wire end
into terminal
Terminal Board
Control Wires
Push down to open
the terminal
Turn the wire ~ 45
and pull it out of the
terminal.
Use a screwdriver with a blade
width of max 2.5 mm and a
thickness of max 0.4 mm
45
E
B
C
D
