5-7
IM DLM6054-01EN
Vertical and Horizontal Control
5
6
7
8
9
10
11
12
13
14
15
16
17
18
Index
App
Vertical Position (POSITION)
You can move each waveform’s vertical display position within ±4 divisions.
When you change the vertical scale, the location of the vertical position mark does not change.
Use the POSITION knob to set the vertical position for each channel.
The POSITION knob is used to adjust the position of each channel. Press a key from CH1 to CH4
to select the channel whose vertical position you want to set. The LED between the SCALE and
POSITION knobs illuminates in the representative color for the selected channel (yellow, green,
magenta, or cyan).
Note
• If you change the vertical position when waveform acquisition is stopped, only the display position of the
waveform preview changes.
• If you change the vertical position after stopping waveform acquisition, the data that exceeds the

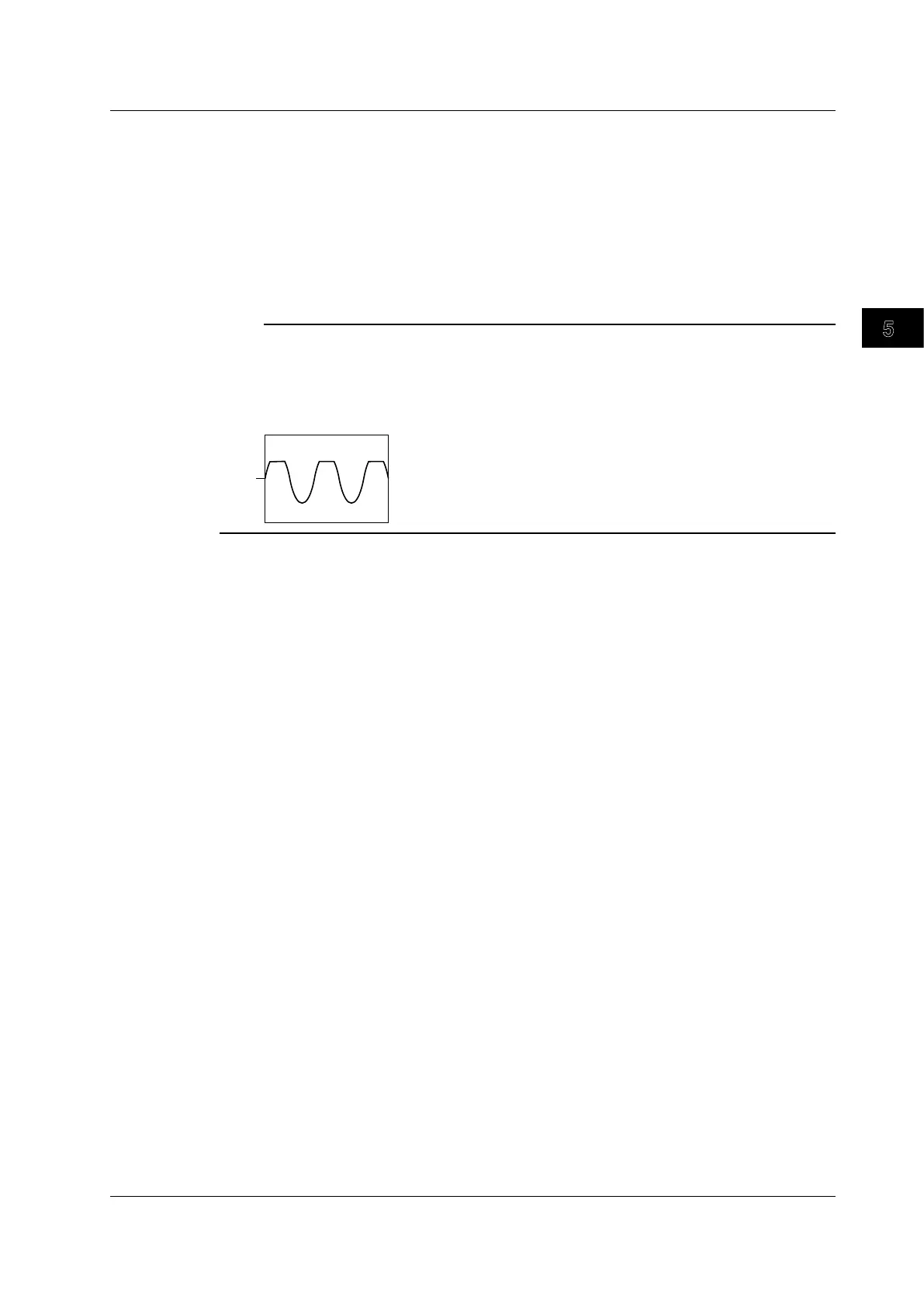

measurement range is handled as overflow data. As shown in the figure below, waveforms may appear
cut off when there is overflow data.
5.1 Vertical Axis Settings for Analog Input Signals
To Next Page
