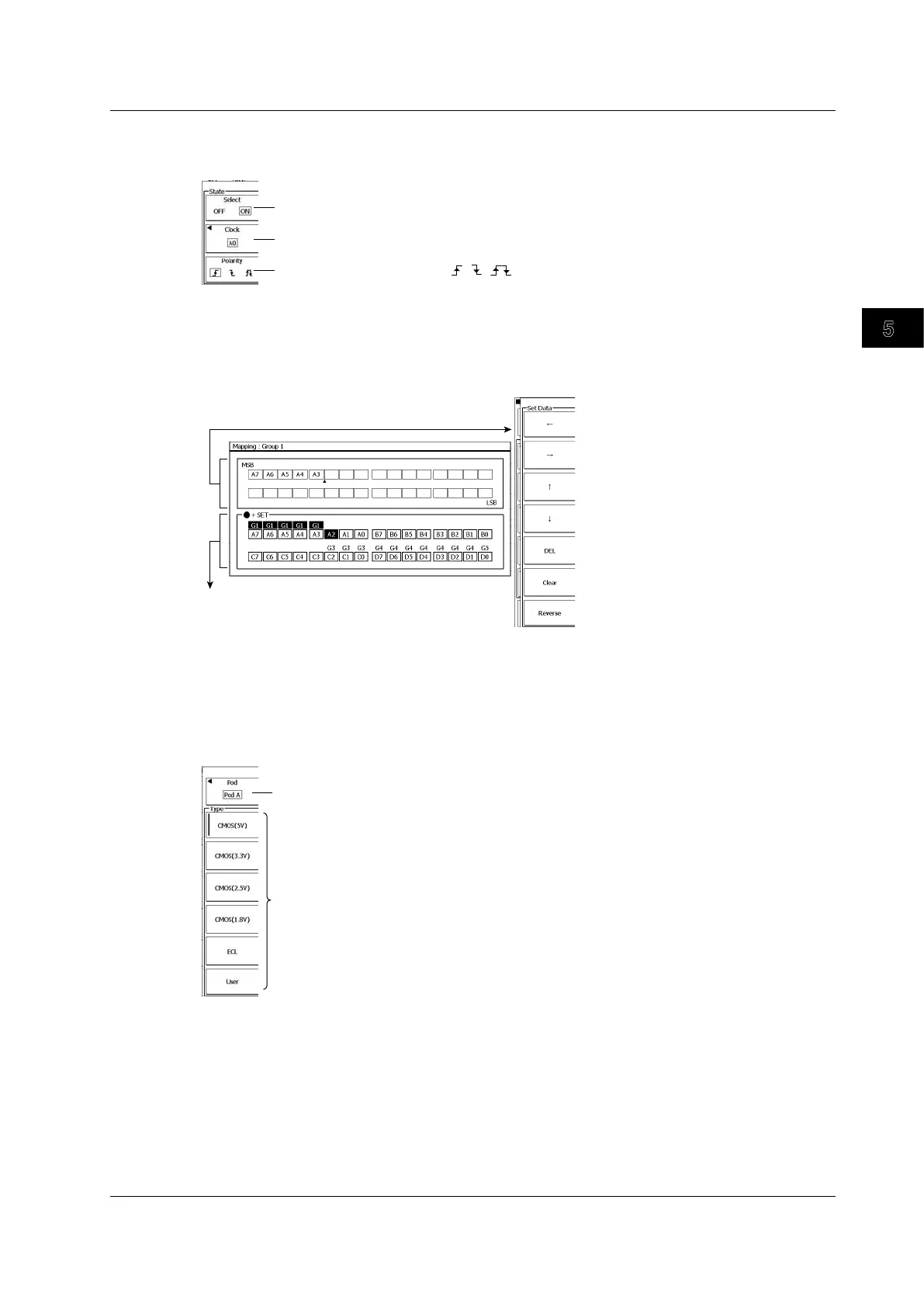

Configuring the State Display (State)
Press the State soft key to display the following menu.
Turns state display on and off
Set the clock bit (A0–A7, B0–B7, C0–C7, D0–D7).*
Set the clock signal polarity ( , , ).
* On 16-bit models, you can select from bits A0 to A7 or C0 to C7.
Configuring Grouping (Mapping)
Press the Mapping soft key to display the following menu.
You can use soft keys to perform actions such
as selecting where in a group you want assign
a bit, reversing the bit order, and deleting bits.
Use the jog shuttle and the SET key to select
which bits to assign to a group.
Moves the cursor to the left
Moves the cursor to the right
Moves the cursor up
Moves the cursor down
Deletes the bit at the cursor position
Deletes all bits
Reverses the bit order
You can choose bits from A0 to A7, B0 to B7,
C0 to C7 and D0 to D7.
(On 16-bit models, you can choose bits from A0
to A7 and C0 to C7.)
Setting the Threshold Levels (Thresholds)
Press the Thresholds soft key to display the following menu.
Select the port whose threshold you want to set
(Pod A–Pod D).
Set the threshold level.
5.2 Vertical Axis Settings for Logic Input Signals
