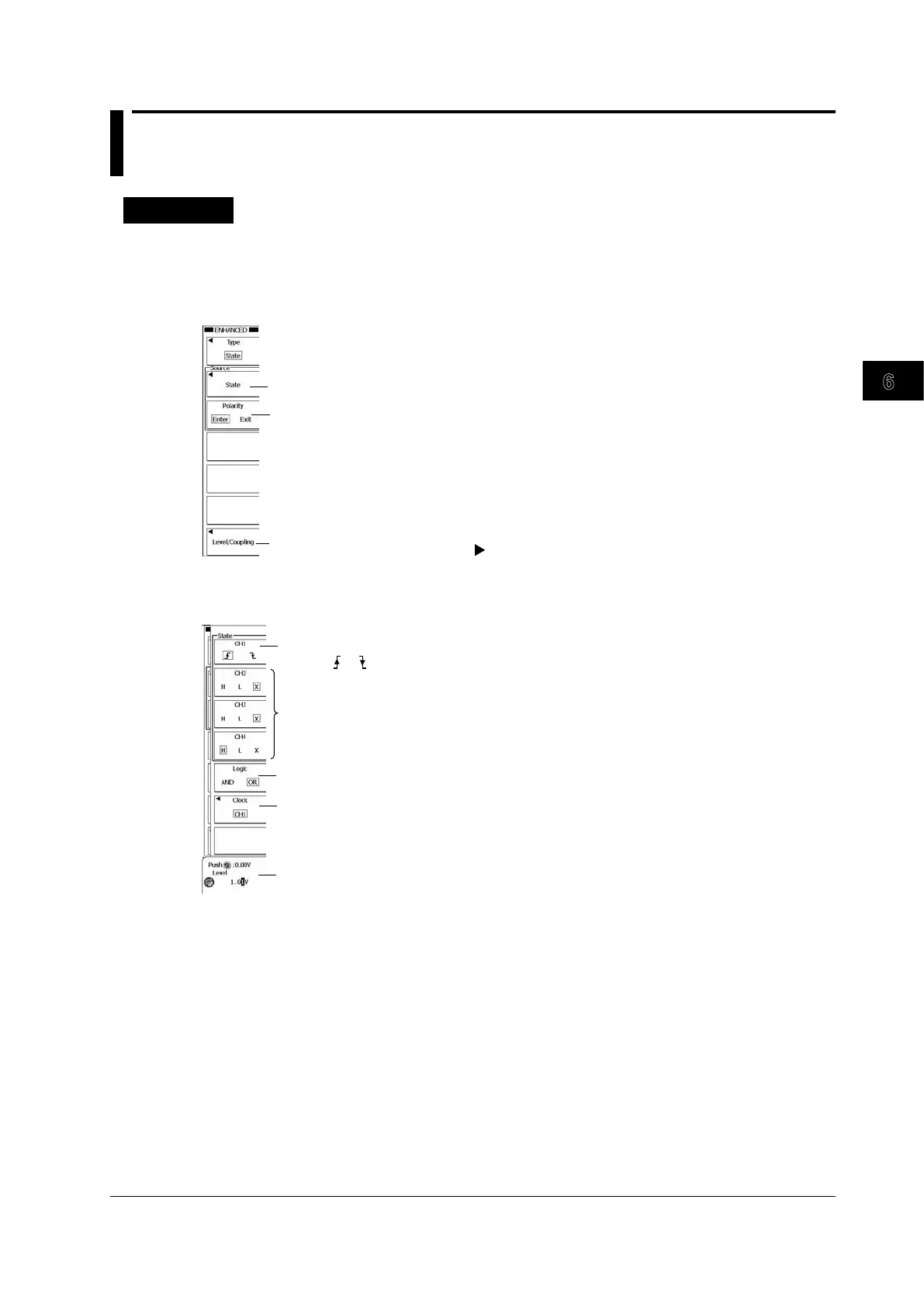

6.6 Triggering on State Conditions
Procedure
ENHANCED Edge State Menu
Set a trigger using a channel from CH1 to CH4 as the trigger source.
Press ENHANCED, the Type soft key, the Edge/State soft key, and then the Edge State soft key to
display the following menu.
Press to configure the state conditions.
Press to configure the trigger coupling, HF rejection, noise rejection,
and window comparator settings. section 6.3.
Set the trigger condition ( Enter, Exit).
Setting the State Conditions (State)
Press the State soft key to set the state conditions and the clock channel.
Set the state conditions for signals other than the clock source.
• Select H, L, or X when the window comparator is off.
• Select In, Out, or X when the window comparator is on.
Set the state condition logic (AND, OR).
Set the slope for the clock source signal.
• Select or when the window comparator is off.
• Select Enter or Exit when the window comparator is on.
Set the value used to determine the H, L,
IN, and OUT states.
Set the clock source (CH1-CH4, X).
