6-16
IM DLM6054-01EN

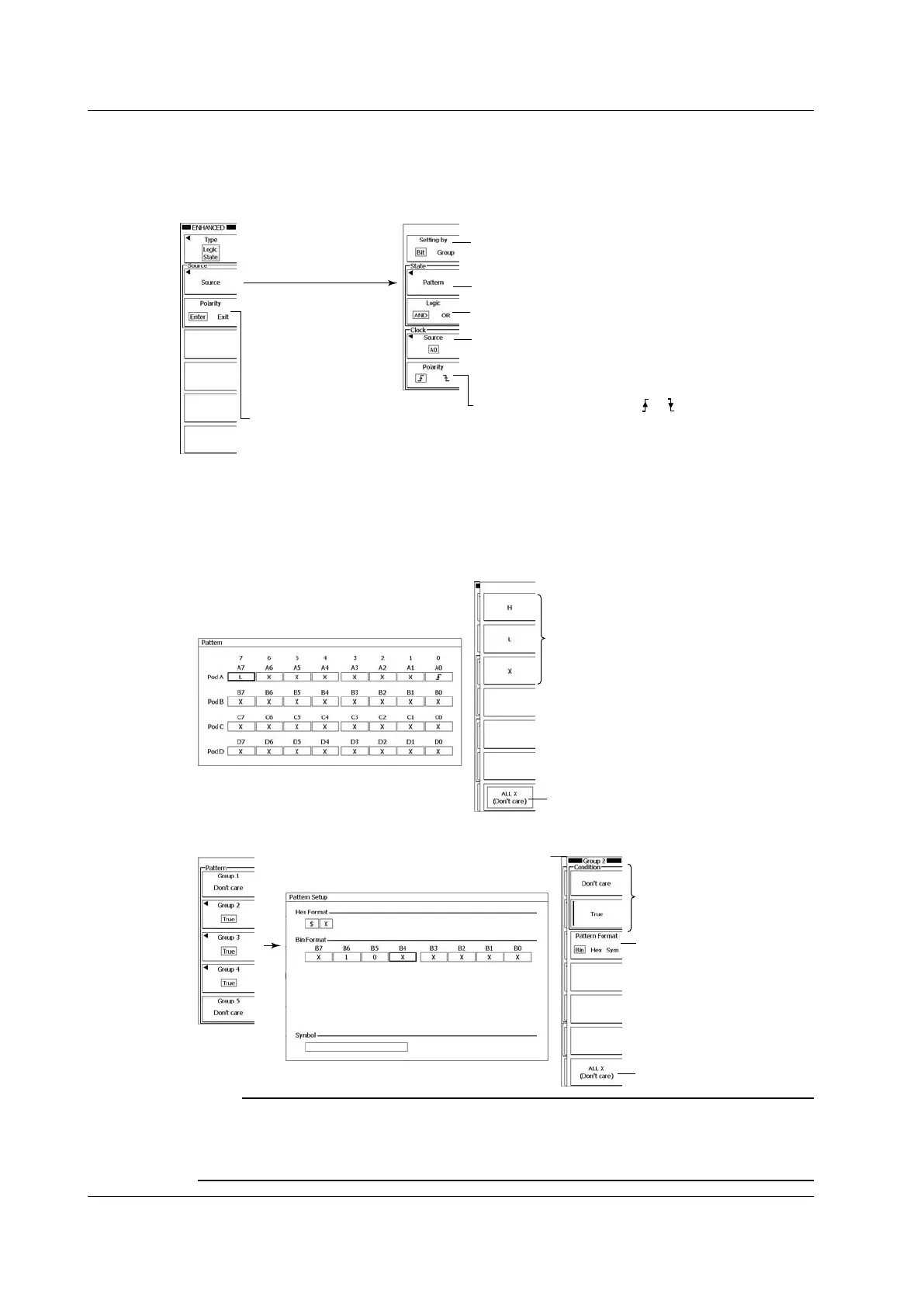

ENHANCED Logic State Menu (DLM6000)
Set a trigger using a logic signal bit as the trigger source.
Press ENHANCED, the Type soft key, the Edge/State soft key, and then the Logic State soft key to
display the following menu.
Set the logic (AND, OR).
Press to configure the state conditions.
Select the state determination method.
Bit: States are determined by bit.
Group: States are determined by group.
Select the clock bit
(A0-A7, B0-B7, C0-C7, D0-D7).
(On 16-bit models, you can choose a bit from A0
to A7 or C0 to C7.)
Set the clock source slope ( , ).
Set the trigger condition.
Enter: The comparison result must change
from “not met” to “met.”
Exit: The comparison result must change
from “met” to “not met.”
Setting the State Condition (Pattern)
Press the Pattern soft key to display the following menu.
When “Setting by” Is Set to “Bit”
Sets all bits to X
Set each bit to H, L, or X.
When “Setting by” Is Set to “Group”
Sets all bits to X
To apply a pattern to a
group, select True. To not
apply a pattern to the
group, select Don’t care.
Set the pattern format
(Bin, Hex, Sym).
Note
• Groups that do not have logic signal bits assigned to them and groups that contain the logic signal bit that
has been selected as the clock source are always set to “Don’t care.”
• If there is even one X in a group of four bits in the binary format row, the corresponding indication in the
hexadecimal format row will be a dollar sign ($).
6.6 Triggering on State Conditions
To Next Page
