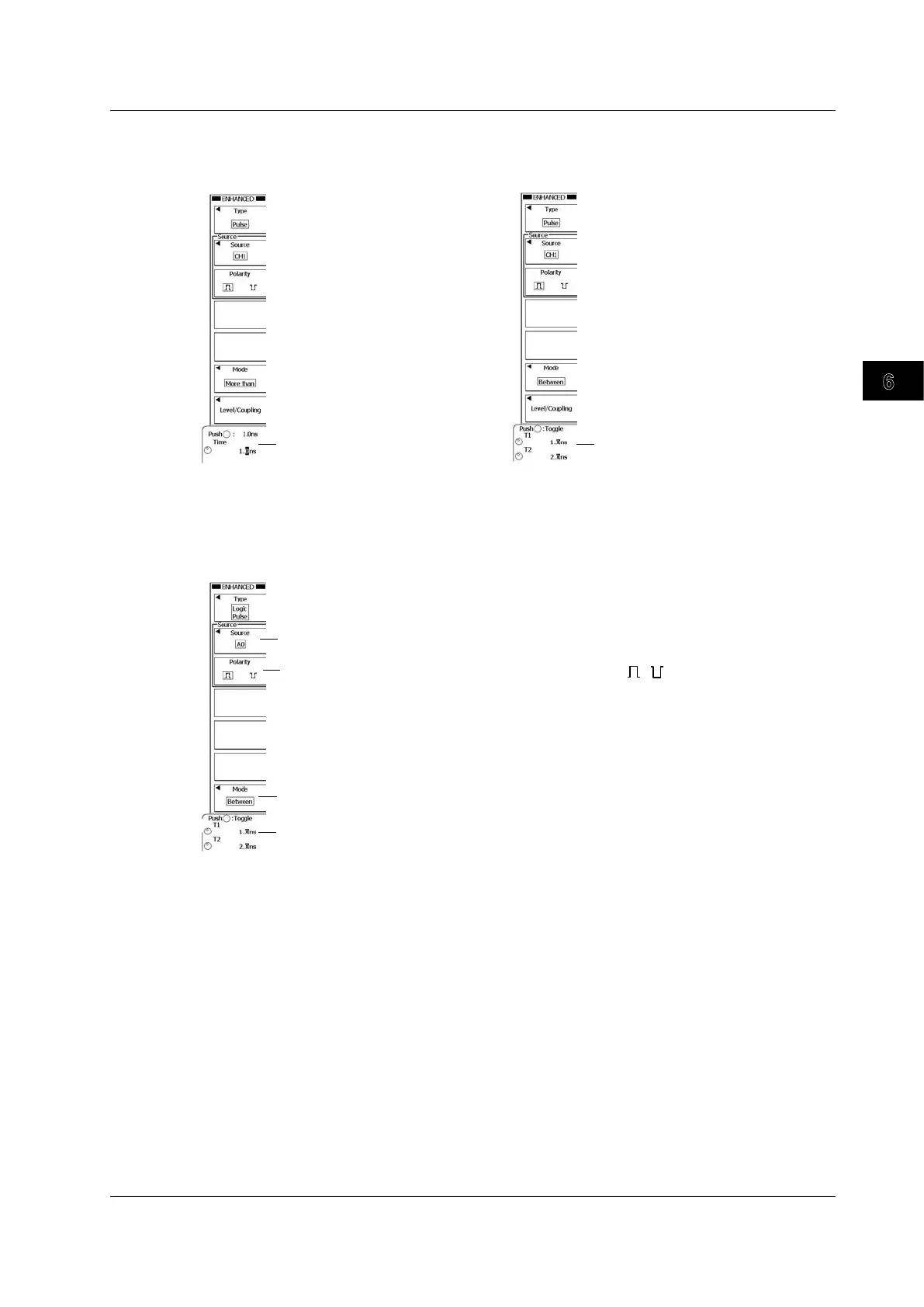

Setting the Reference Times
Set the reference time.
Set reference times T1 and T2.
When the Time Width Mode Is “More than,”
“Less than,” or “Time Out”
When the Time Width Mode Is “Between”
or “Out of Range”
ENHANCED Logic Pulse Menu (DLM6000)
Set a trigger using a logic signal bit as the trigger source.
Press ENHANCED, the Type soft key, the Width soft key, and then the Logic Pulse soft key to display
the following menu.
Select the kind of pulse to compare to the specified time ( , ).
Select the trigger source (A0-A7, B0-B7, C0- C7, D0-D7).
(On 16-bit models, you can select a bit from A0 to A7 or C0 to C7.)
Set the reference time.
Set the time width mode.
Setting the Time Width Mode (Mode)
Press the Mode soft key. This setting is the same as the setting in the Pulse menu.
Setting the Reference Times (Time1 and Time2)
These settings are the same as the setting in the Pulse menu.
6.7 Triggering on a Pulse Width Condition
