6.8 Triggering on a Pulse Width Condition under
Specified Qualifications
Procedure

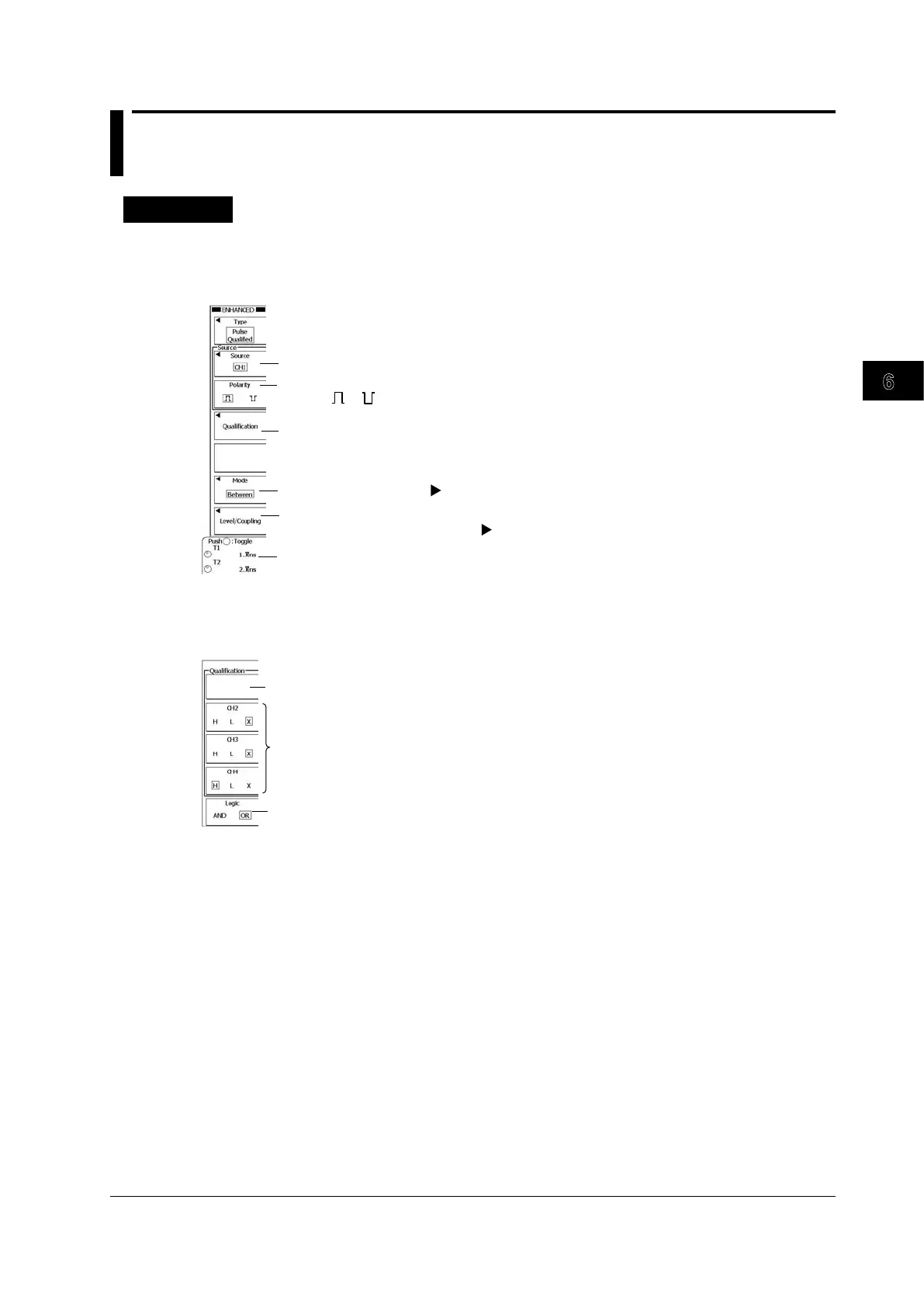

ENHANCED Pulse Qualified Menu
Press ENHANCED, the Type soft key, the Width soft key, and then the Pulse Qualified soft key to
display the following menu.
Set the trigger source (CH1-CH4, EXT).
Set the reference time.
Set the time width mode. section 6.7.
Select the kind of pulse to compare to the specified time.
• Select or when the window comparator is off.
• Select IN or OUT when the window comparator is on.
Press to configure the trigger coupling, HF rejection, noise rejection,
and window comparator settings. section 6.3.
Set the qualifications.
Setting the Qualifications (Qualification)
Press the Qualification soft key to display one of the menus shown below. The menu that is displayed
varies depending on the specified trigger source.
You cannot set the trigger source channel.
Set the logic for the qualifications.
Set the qualifications.
Select H, L, or X when the window comparator is on.
Select IN, OUT, or X when the window comparator is off.
