YOKOGAWA DL6000 Series User Manual

6-42
IM DLM6054-01EN

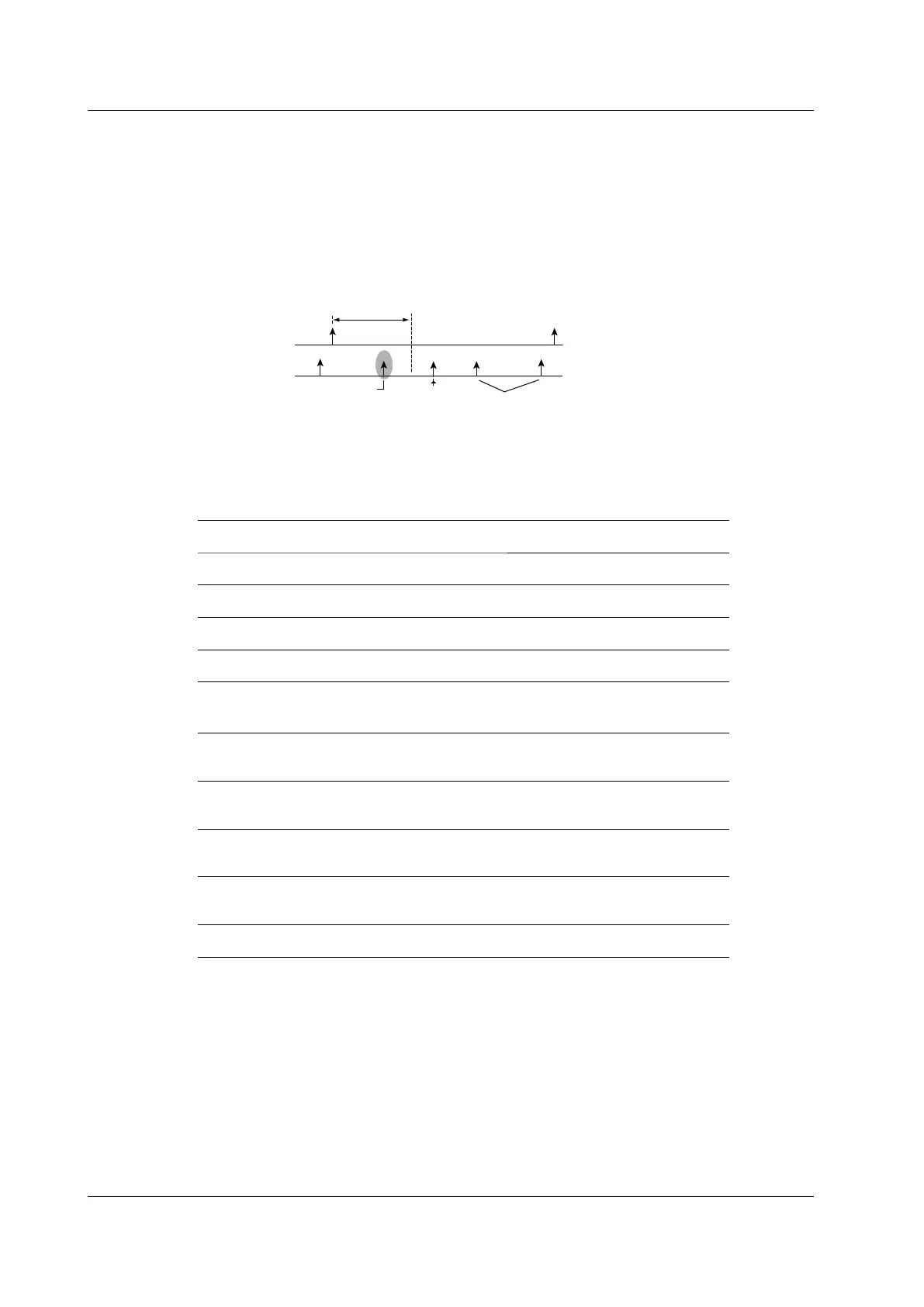

Event Sequence (Event Sequence)
The DL6000/DLM6000 triggers according to the relationship between two events.
The DL6000/DLM6000 will trigger when the specified relationship is established between the set
time and the time interval from the occurrence of event 1 to the first occurrence of event 2. If the
time interval between from the occurrence of event 1 to the first occurrence of event 2 does not
match the specified time conditions, the DL6000/DLM6000 will ignore the first occurrence of event 2
and wait until event 2 occurs at a time that satisfies the time conditions. The following is an example
for when the time width mode is set to “More than.”
Event 1
Reference time
Event 2
Trigger
No triggering
More than
The occurrence of event 2
within the reference time is
ignored.
Time Width Modes (Mode)
For Event Cycle
More than The DL6000/DLM6000 triggers on the ends of event intervals that exceed the
specified reference time.
Less than The DL6000/DLM6000 triggers on the ends of event intervals that are shorter
than the specified reference time.
Between The DL6000/DLM6000 triggers on the ends of event intervals that are longer
than T1 and shorter than T2.
Out of Range The DL6000/DLM6000 triggers on the ends of event intervals that are shorter
than T1 or longer than T2.
Time out The DL6000/DLM6000 triggers when an event interval exceeds the specified
reference time.
For Event Delay and Event Sequence
More than The DL6000/DLM6000 triggers on the occurrence of event 2 when the time
between the occurrence of event 1 and the occurrence of event 2 is longer than
the specified reference time.
Less than The DL6000/DLM6000 triggers on the occurrence of event 2 when the time
between the occurrence of event 1 and the occurrence of event 2 is shorter than
the specified reference time.
Between The DL6000/DLM6000 triggers on the occurrence of event 2 when the time
between the occurrence of event 1 and the occurrence of event 2 is longer than
T1 and shorter than T2.
Out of Range The DL6000/DLM6000 triggers on the occurrence of event 2 when the time
between the occurrence of event 1 and the occurrence of event 2 is shorter than
T1 or longer than T2.
Time out The DL6000/DLM6000 triggers when the time between the occurrence of event
1 and the occurrence of event 2 exceeds the specified reference time.
6.11 Triggering on Period, Delay, and Sequence Events
