YOKOGAWA DL6000 Series User Manual

6-48
IM DLM6054-01EN

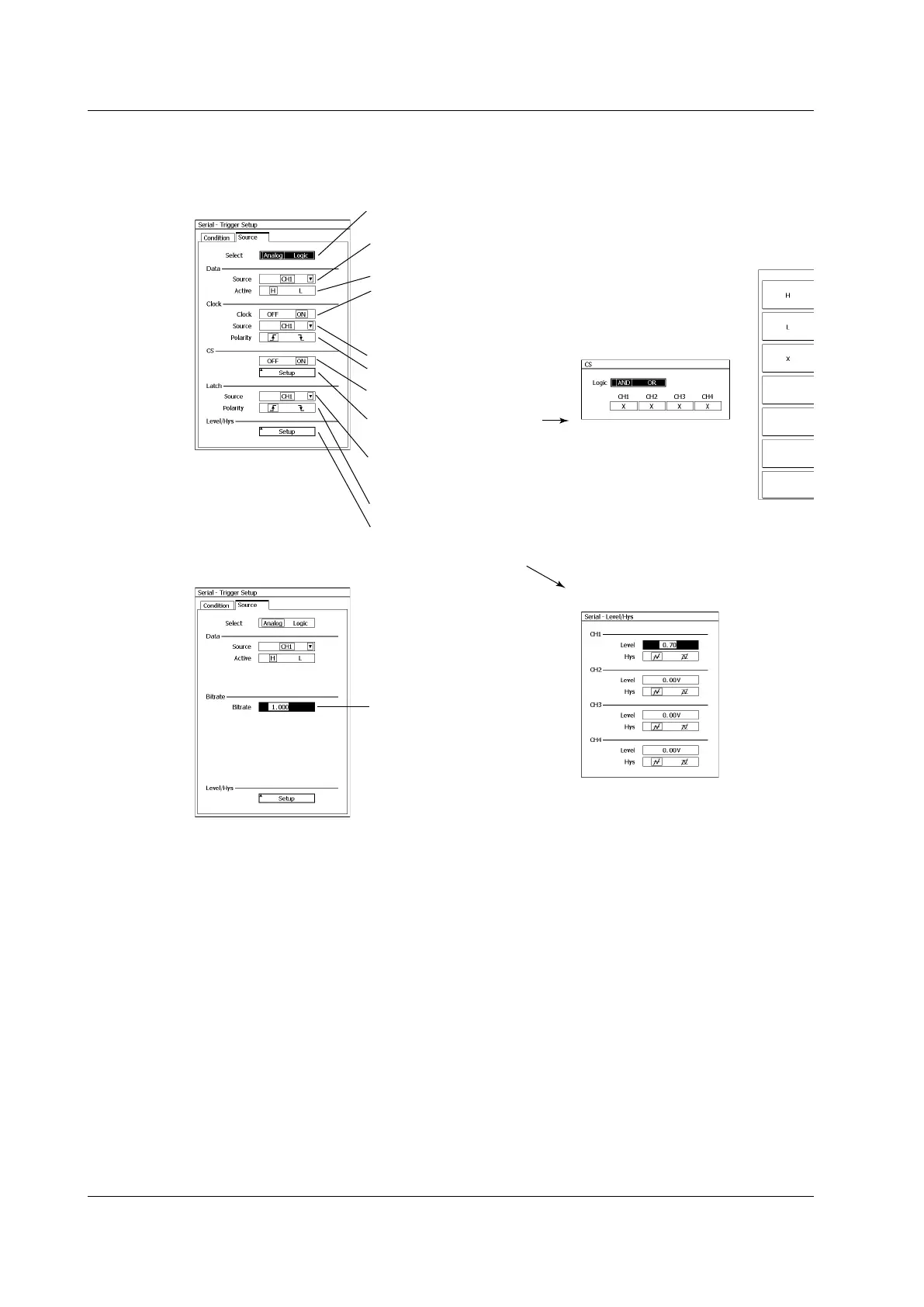

Setting the Trigger Source (Source)
Specify the trigger source to compare with the data pattern and the comparison conditions.
For Analog Sources
Set the trigger source type
to Analog.
Select the active state.
Select the data source
(CH1-CH4).
Select the clock source.
Turns clock source
synchronization on and off
(the same as the Clock setting
in the Condition tab)
Configure the detection level
and hysteresis settings.
State condition settings
Select rising or falling.
Turns state condition
comparison on and off
Set the state conditions
(when CS is set to ON).
Select the latch source.
(Select a channel from CH1 to
CH4 or select X to not specify a latch.)
Press to configure the levels and
hysteresis for the data, clock, CS,
and latch sources.
Select rising or falling.
When Clock Is Set to ON
When Clock Is Set to OFF
Set the bit rate.
6.13 Triggering on a Serial Pattern Signal
