6-58
IM DLM6054-01EN
Creating a New Zone from a Previously Saved Zone (Load Zone)
Press the Edit soft key, the Load Zone soft key, and then a soft key from #1 to #4. The zone that
you specified is loaded.
Editing Zones (Modify Zone)
Press the Edit soft key and then the Modify Zone soft key to display the waveform zone edit menu.

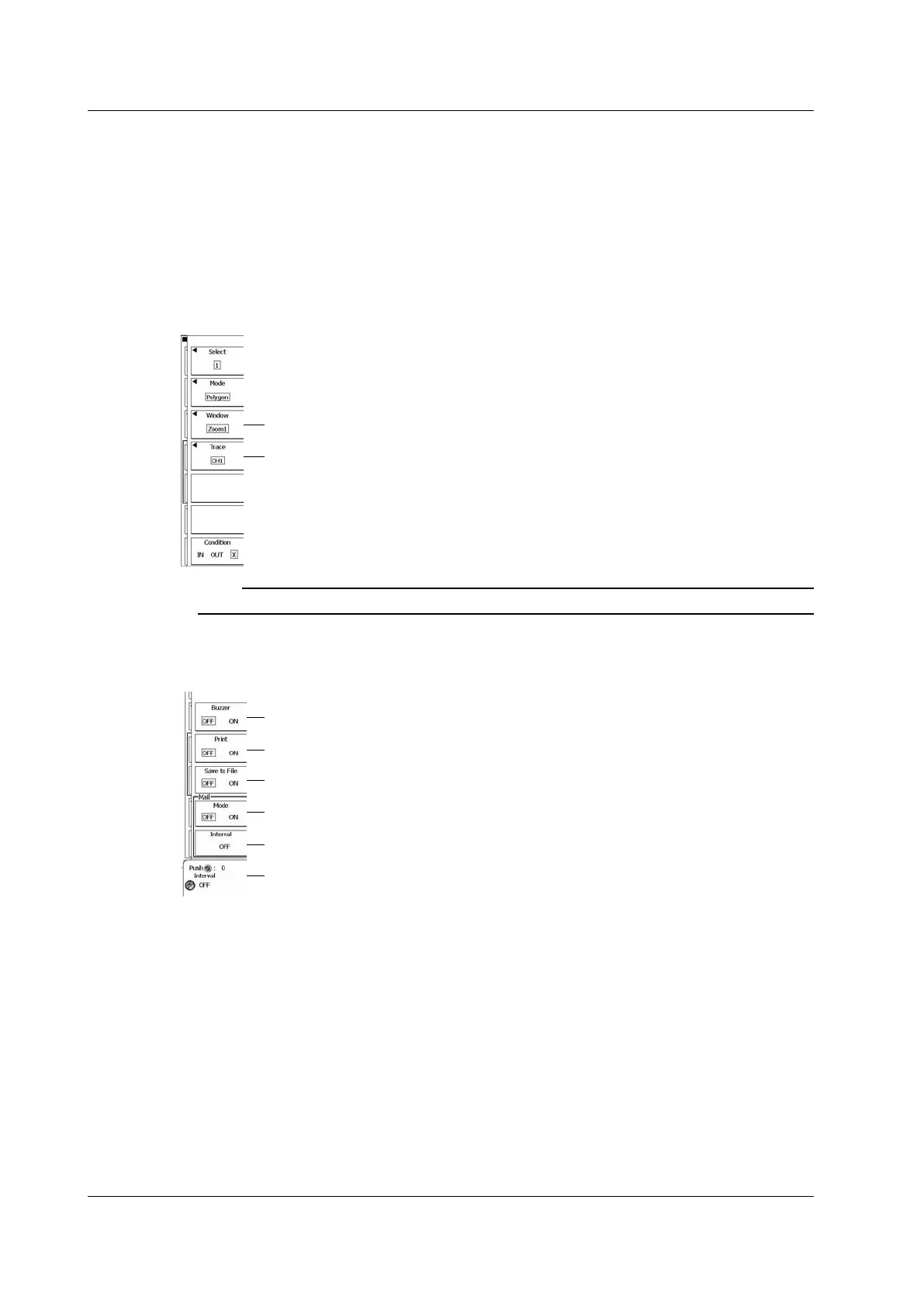

Using a Polygonal Zone for Determination (Polygon)
Using the FILE menu, load a polygon image into a specified zone (Zone1 to Zone4).
Set the determination source window (Main, Zoom1, Zoom2, XY1, XY2).
Select the source waveform (CH1-CH4, M1-M4).
Note
You can create polygon images on a PC by using the Mask Editor Software.
Actions to Execute When Conditions Are Met (Action)
Press the Action soft key to display the following menu.
Turns the buzzer on and off
Turns screen capture printing and saving on and off
Turns the saving of measured data on and off
Turns mail transmission on and off
Set the e-mail transmission interval (using the jog shuttle).
Set the transmission interval.
6.15 Performing GO/NO-GO Determination with Zones
To Next Page
