CURSOR
Serial
Menu

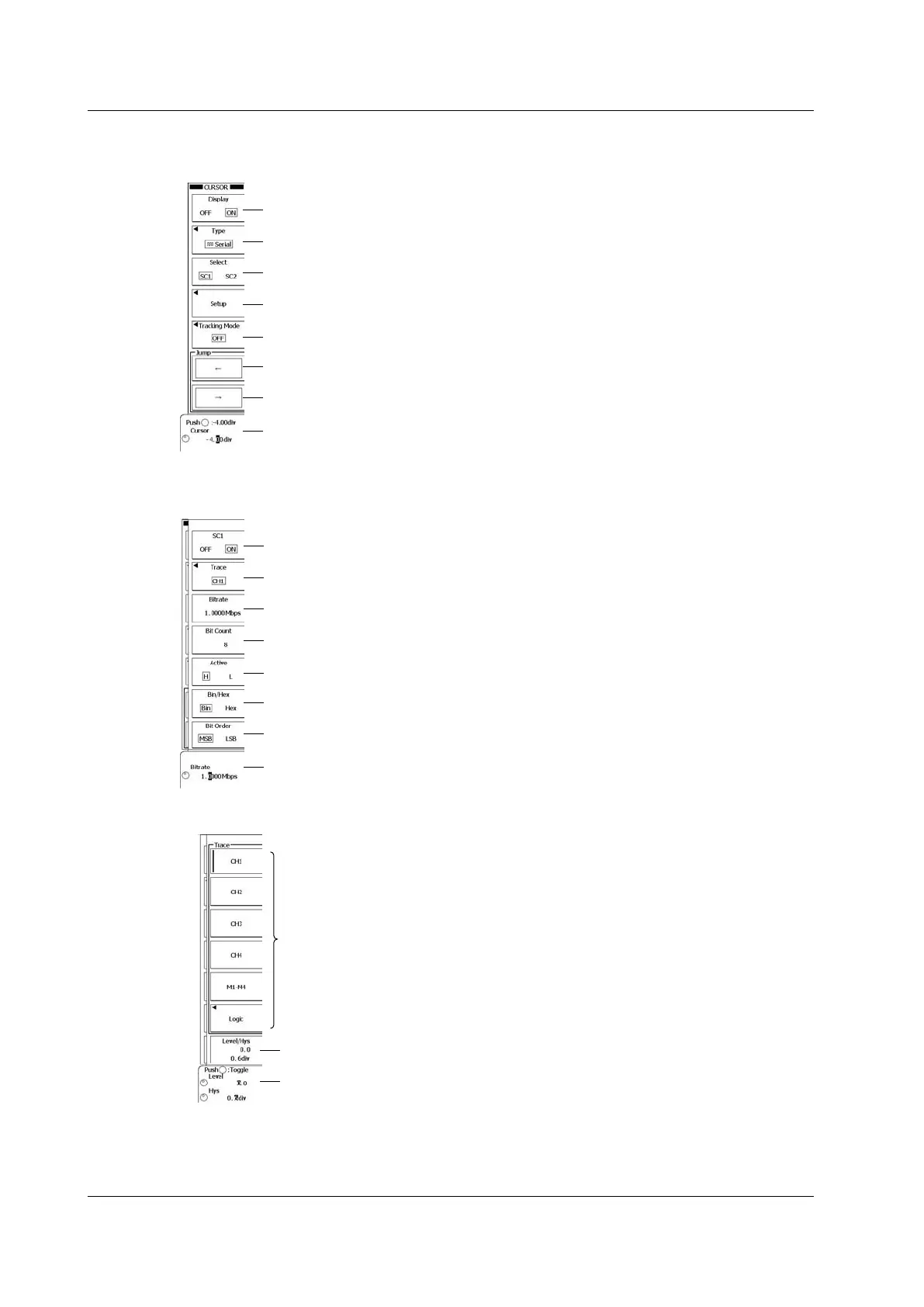

Press the CURSOR key, the Type soft key, and then the Serial soft key to display the following menu.
Turns cursor measurement on and off
Set the cursor type to Serial.
Set the cursor that you want to configure (SC1, SC2).
Press to configure the SC1 or SC2 cursor.
Set the tracking mode (OFF, Zoom1, Zoom2).
Moves the cursor to the left by the specified number of bits.
Moves the cursor to the right by the specified number of bits.
Set the cursor position.
Setting the SC1 or SC2 Cursor (Setup)
Press the Setup soft key to display the following menu.
Turns the SC1 cursor on and off
Set the waveform to measure.
Set the bitrate (using the jog shuttle).
Set the bit count (using the jog shuttle).
Set whether to make the high (H) or low (L) signals ones.
Set the format (Bin, Hex).
Set the bit order (MSB, LSB).
Set the bitrate and bit count.
Setting the Source Waveform (Trace)
Set the threshold level and the hysteresis.
Switches the value that the jog shuttle adjusts (Level, Hys)
Set the waveform to measure.
* When you set Trace to Logic, you can select
one of the following bits to measure:
A0 to A7, B0 to B7, C0 to C7, and D0 to D7.
(On 16-bit models, you can select from bits A0 to A7 and C0 to C7.)
