YOKOGAWA DL6000 Series User Manual

10-14
IM DLM6054-01EN

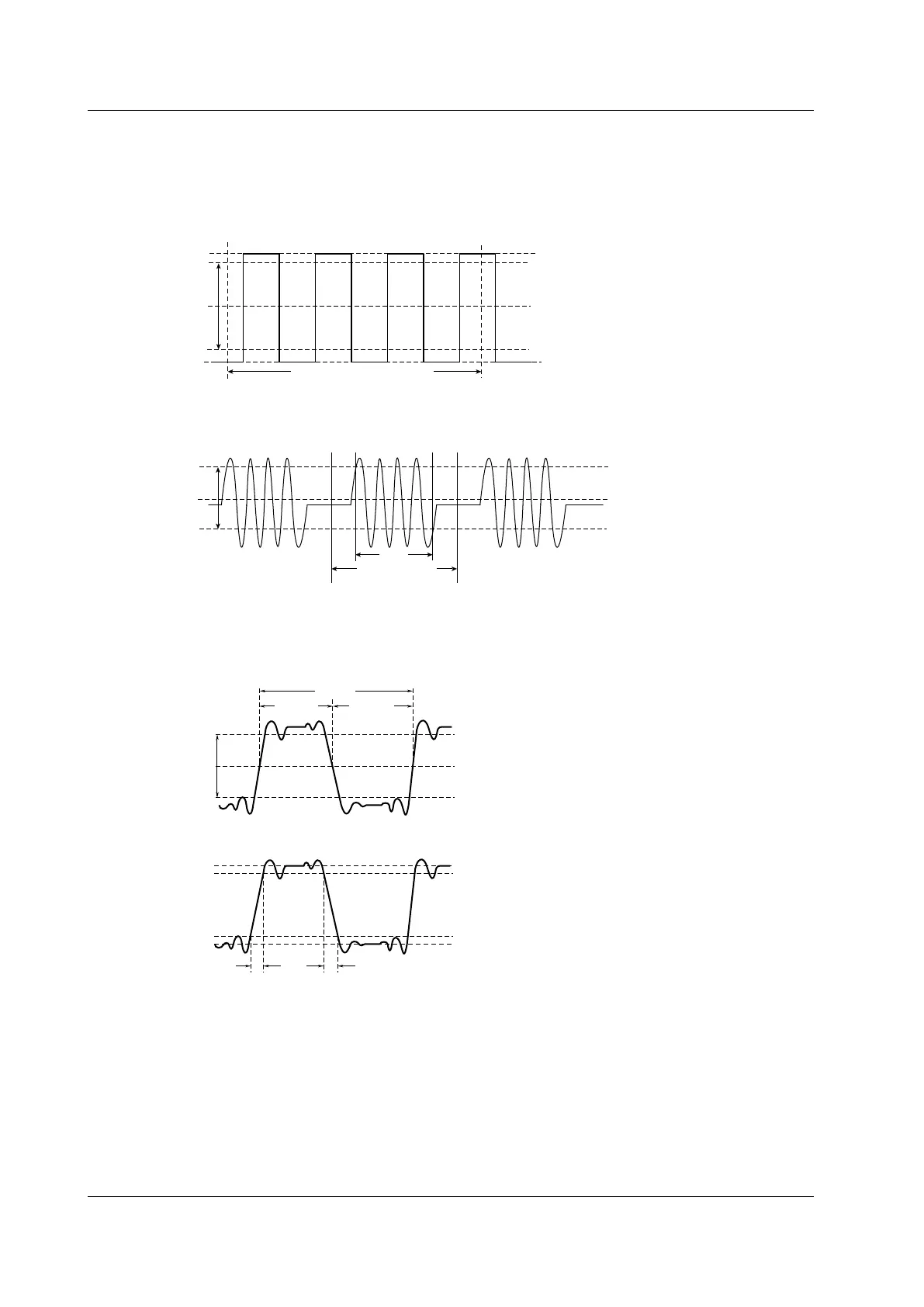

Time Measurement Items
Measurement time range
Hys
Freq (Freq): Frequency [Hz]
Avg Period (Avg Period): Average period in the measurement time range [s]
Edge Count (Edge): Edge count [no unit]
T Range1
T Range2
Level (threshold):
Min or Low (0% when Mode is set to Auto)
When Count = 4
Max or High (100% when Mode is set to Auto)
Upper (80% when mode is set to Auto)
(Upper – Lower)/2 (50% when Mode is set to Auto)
Lower (20% when Mode is set to Auto)
Hys
Upper (80%)
Lower (20%)
Burst
Measurement
time range
Burst (Burst): Burst period [s]
Set the measurement time range appropriately for the burst period that you want to measure.
T Range1
T Range2
(Upper – Lower)/2 (50%)
Level:
+Width
Hys
–Width
Period
Upper (80% when mode is set to Auto)
(Upper – Lower)/2 (50%)
Lower (20%)
Rise Fall
Distal line (90%)
Proximal line (10 %)
High (100%)
Low (0%)
Level:
+Width (+Width): Duration for which the waveform is above the reference line [s]
-Width (-Width): Duration for which the waveform is below the reference line [s]
Period (Period): Period [s]
Duty (Duty): Duty cycle (+Width/Period × 100) [%]
Rise (Rise): Rise time [s]
Fall (Fall): Fall time [s]
Other Measurement Items
Delay (Dly): The delay time in seconds
10.2 Automatically Measuring Waveform Parameters
