YOKOGAWA DL6000 Series User Manual

1-7
Component Names and Functions
IM DLM6054-01EN
3
2
1
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
Index
App

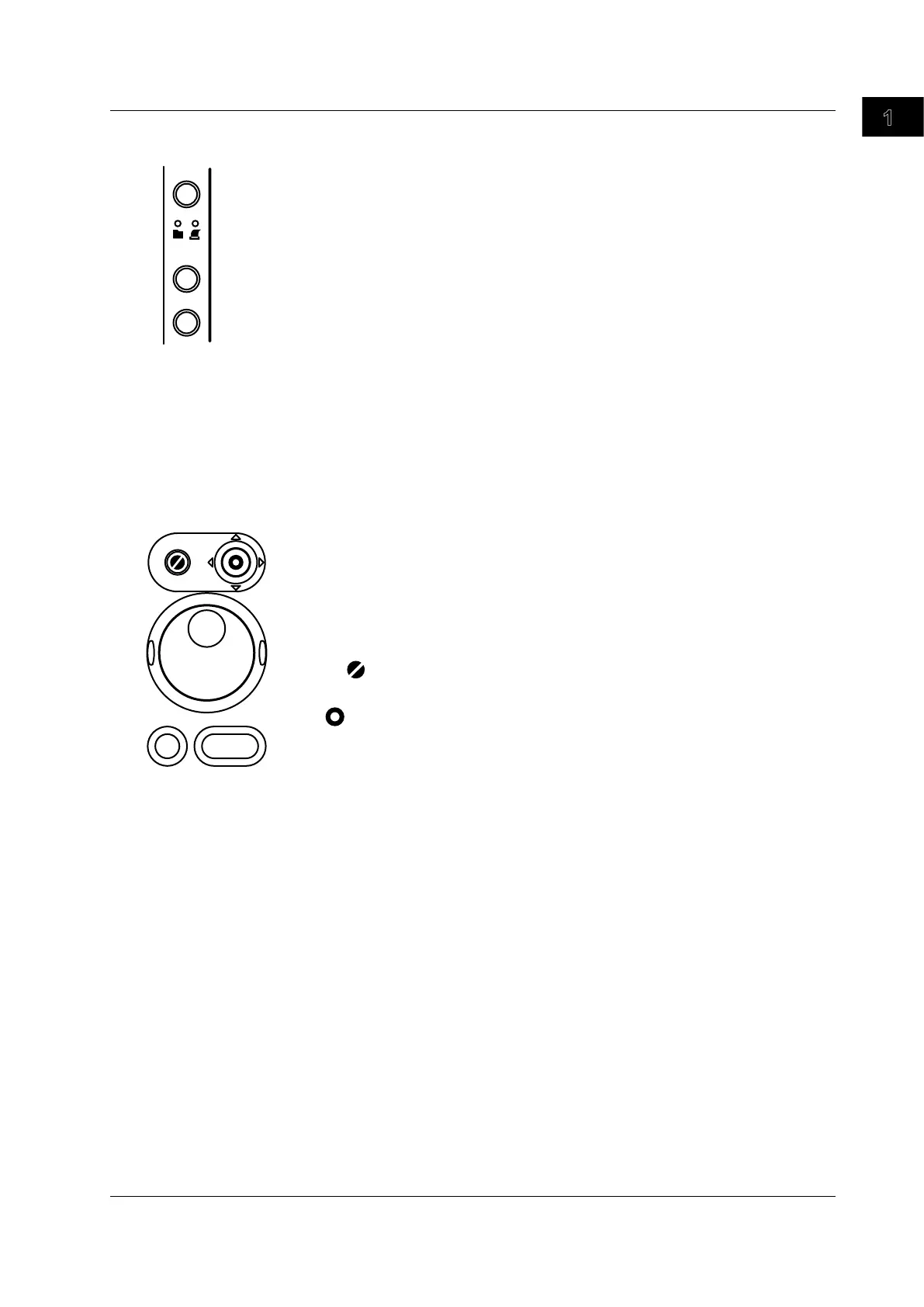

Printing Screen Captures, Saving Data, and Utilities
PRINT Key  Sections 12.2 to 12.4 and 13.9
Prints the screen capture data.
SHIFT+PRINT (MENU) Key  Sections 12.2 to 12.4 and 13.9
Press SHIFT and then PRINT to display a menu for printing screen captures to the built-
in printer or a USB printer or display a menu for saving screen capture data to a storage
medium. An indicator illuminates to show which menu is selected.
FILE Key  Sections 13.4 to 13.8 and 13.10 to 13.13
Displays a menu for manipulating files and saving and loading data from a PC card or
USB memory device.
UTILITY Key  Chapters 14 and 16
Displays a menu for calibrating the DL6000/DLM6000, formatting storage media,
executing self-tests, and for configuring the network, the connection to the PC, the date
and time, the message language, and the click sound. You can also use this key to
display system information (installed options and the firmware version).
Waveform Acquisition and Miscellaneous Operations
RUN/STOP Key  Section 7.2
Starts and stops signal acquisition in accordance with the specified trigger mode. The
key illuminates while the DL6000/DLM6000 is acquiring waveforms.
SINGLE Key  Section 7.2
Causes the DL6000/DLM6000 to acquire one waveform. In Average mode, the DL6000/
DLM6000 acquires one waveform that has been obtained through the linear averaging of
waveforms for the specified number of times.
RESET ( ) Key
Resets a value to its default.
SET ( ) Key
Press this key to enter the menu item that you selected using the jog shuttle.
Or, if there are two items on the jog shuttle setup menu, you can press SET to change
the item that the jog shuttle adjusts.
Move the SET key left and right to move the cursor between numeric digits.
Move the select key up or down to increase or decrease a value. On a dialog menu,
move the select key up and down to change the setting.
1.2 Keys and Knobs
PRINT
MENU
FILE
UTILITY
RUN / STOP
SINGLE
REST SET
