YOKOGAWA DL6000 Series User Manual

1-6
IM DLM6054-01EN

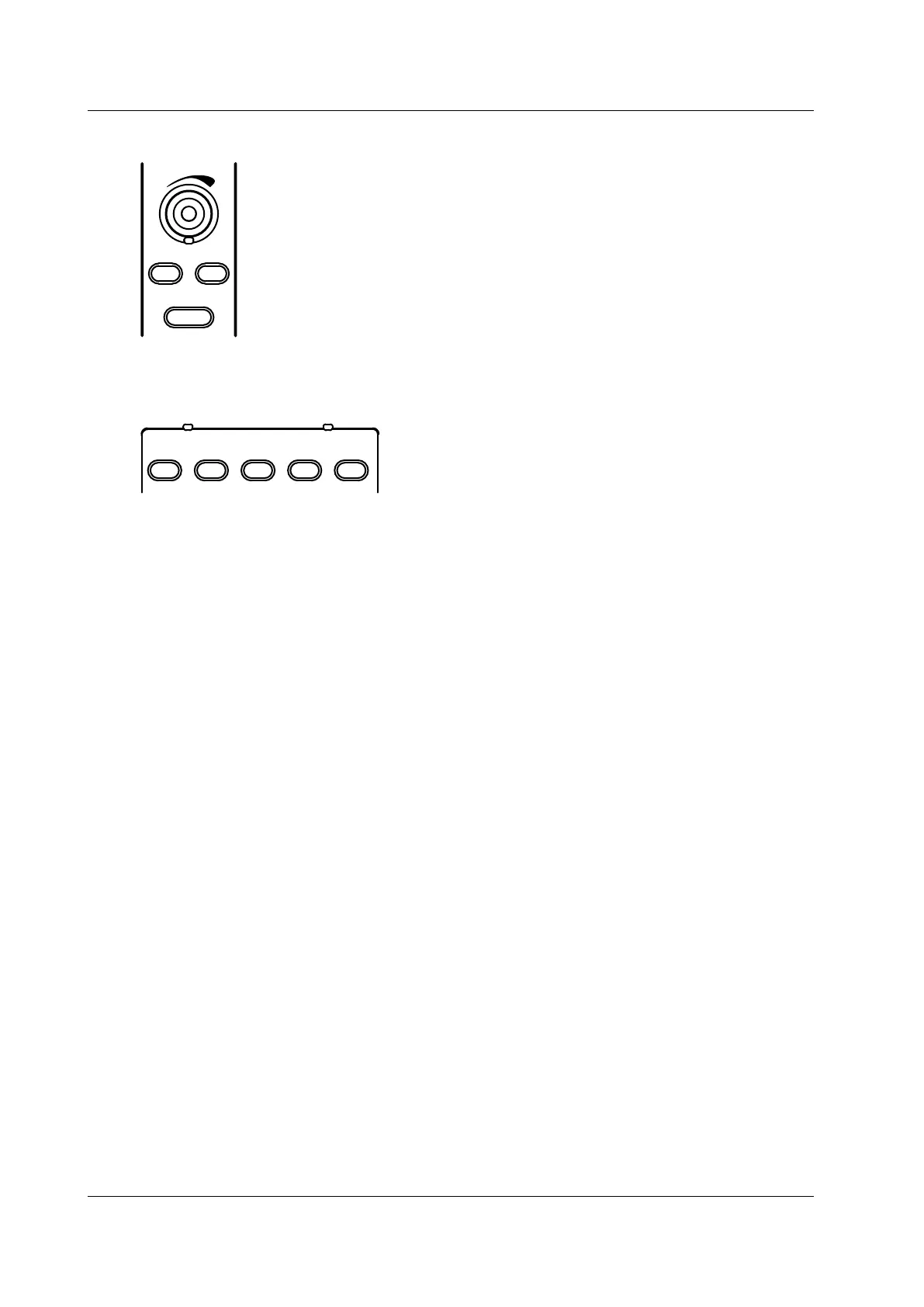

Zooming and Searching
ZOOM1 and ZOOM2 Keys  Sections 8.4, and 8.5
Displays a waveform zoom display menu. When one of the waveform zoom displays is
on, its corresponding key illuminates. When ZOOM1 and ZOOM2 are both on, the key
that is under the control of the ZOOM knob illuminates more brightly.
ZOOM Knob  Section 8.4
When a zoom display is on, you can turn this knob to set the magnification of the
selected vertical or horizontal axis. Before turning this knob, press ZOOM1 or ZOOM2 to
select the zoom waveform whose magnification you want to control.
SEARCH Key  Section 10.9
Displays a waveform search menu.
Analysis, Computation, and Reference Waveforms
SHIFT
CURSOR
MEASURE
ANALYSIS
MATH/REF
FFTMASK
CURSOR Key  Section 10.1
Displays a menu for making cursor measurements.
MEASURE Key  Sections 10.2 and 10.3
Displays a menu for automated measurements of waveform parameters and for
statistical processing.
SHIFT+MEASURE (MASK) Key  Section 10.8
Press SHIFT and then MEASURE to display a mask test menu.
ANALYSIS Key  Sections 10.4 to 10.8
Displays a menu for configuring serial bus signal analysis, XY display, FFT analysis,
waveform parameter histograms and lists, etc. The key illuminates when the menu is
displayed.
MATH/REF Key  Chapter 9
Displays a menu for configuring waveform computations and reference waveforms.
SHIFT+MATH/REF (FFT) Key  Section 10.5
Press SHIFT and then MATH/REF to display an FFT menu.
SHIFT Key
Press this key once to access the features that are written in purple below each key. The
shift key illuminates when the keys are shifted. Press the key again to clear the shifted
state.
ZOOM
ZOOM1 ZOOM2
SEARCH
1.2 Keys and Knobs
