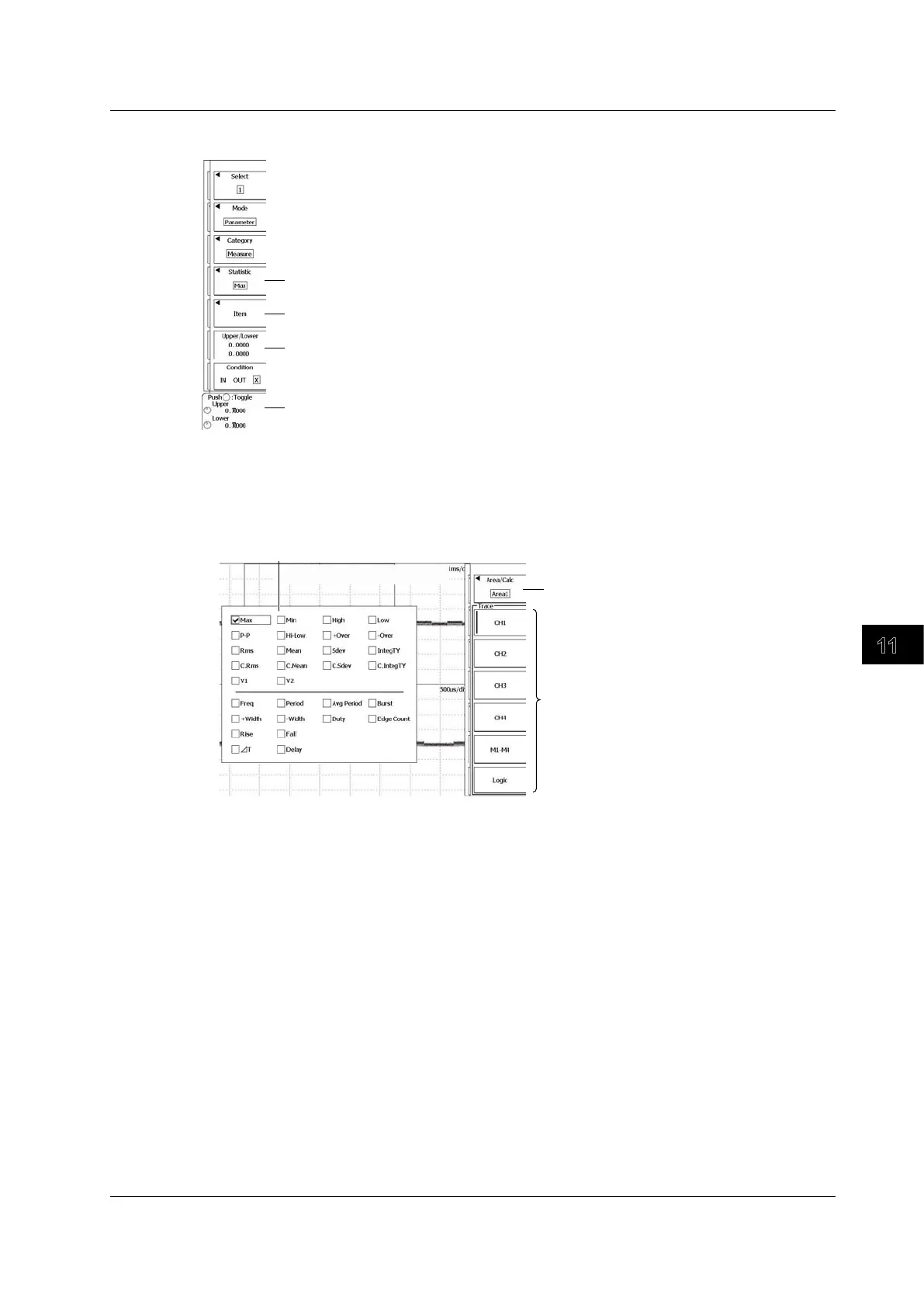

Searching for Waveform Parameters (Measure)
Set which parameters to search for.
Set the upper and lower limits of the search range.
Switches the item that the jog shuttle adjusts (Upper, Lower)
Set the item to perform statistical analysis on (Max, Min, Mean, s).*
* Only when the waveform mode is Cycle Statistics
Setting Which Parameters to Search For (Item)
Press the Item soft key to display the following menu.
When Mode in the MEASURE Menu Is Set to Basic, Continuous Statistics, or History
Statistics
Set the item to search for
(Area1, Area2, Calc).*
Set the source waveform
(CH1–CH4, M1–M4, LOGIC).
* When the waveform mode is Cycle Statistics, this becomes the Select soft key (Basic/Calc).
Select the check box of the item you want to search for.
11.3 Searching for History Waveforms Using Parameters
