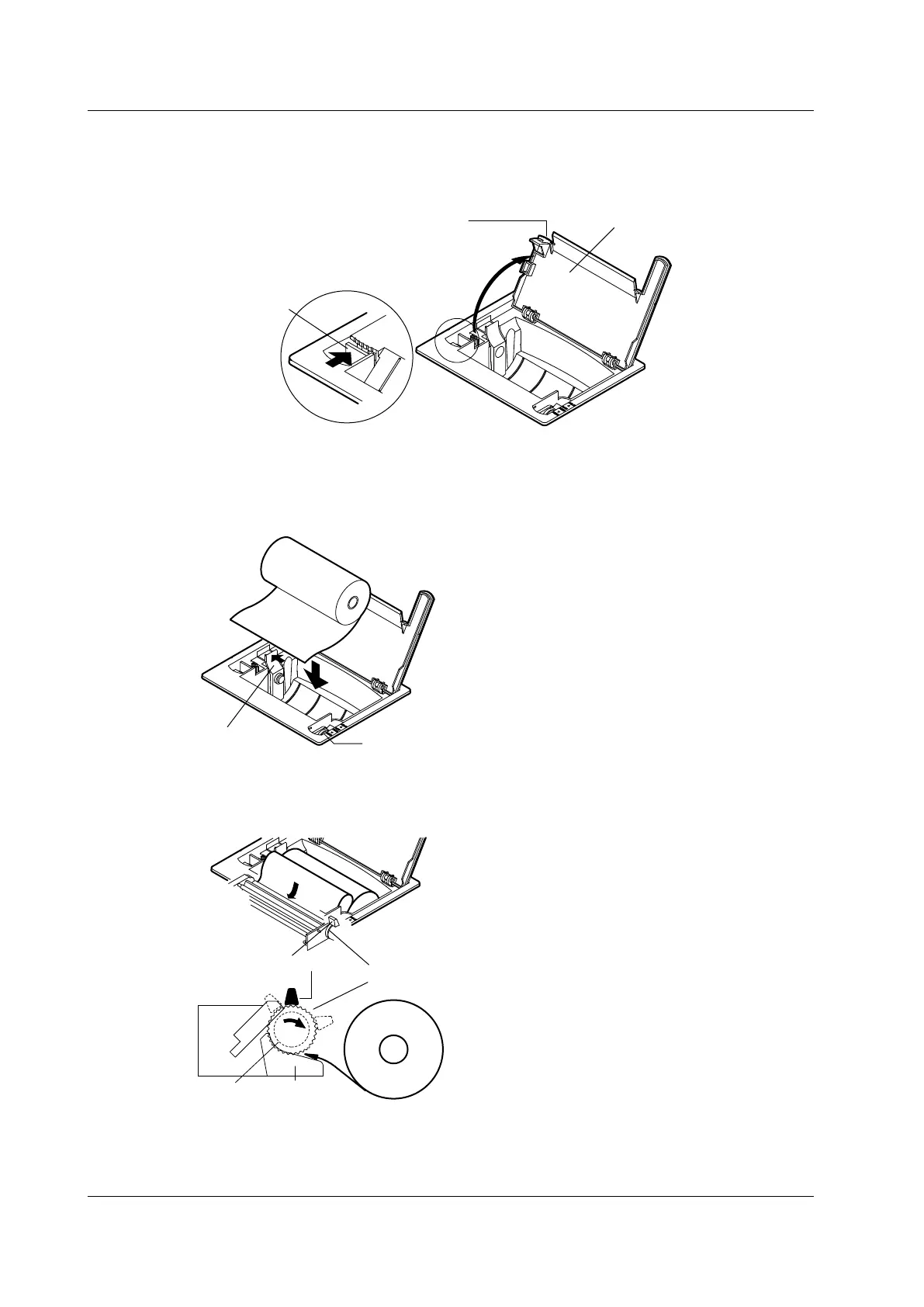

Attaching the Roll Paper (DLM6000)
1.
Push the lock release lever in the direction of the OPEN arrow. Then, lift the handle on the left of the
printer cover to open it.
Printer cover
Handle
Lock release lever
2.
Move the release arm in the front right of the printer to the MAN FEED position. While holding the
roll paper so that the inside (the unglossed side) is facing up and pushing the moveable holder on
the left side of the roll paper storage space further to the left, attach the core of the roll paper to the
holder on the right side. Then, release the moveable holder.
Release arm
Moveable holder
3.
Insert the edge of the roll paper evenly into the space between the roller and the black guide, and
then turn the paper feed knob clockwise (in the direction of the back of the printer) so that the roll
paper sticks out from the roller by about 10 cm.
MAN FEED
Turn the paper feed knob.
Roll paper
Release arm
Guide
Roller
12.1 Loading Roll Paper Into the Built-In Printer (Optional)
