Monitoring

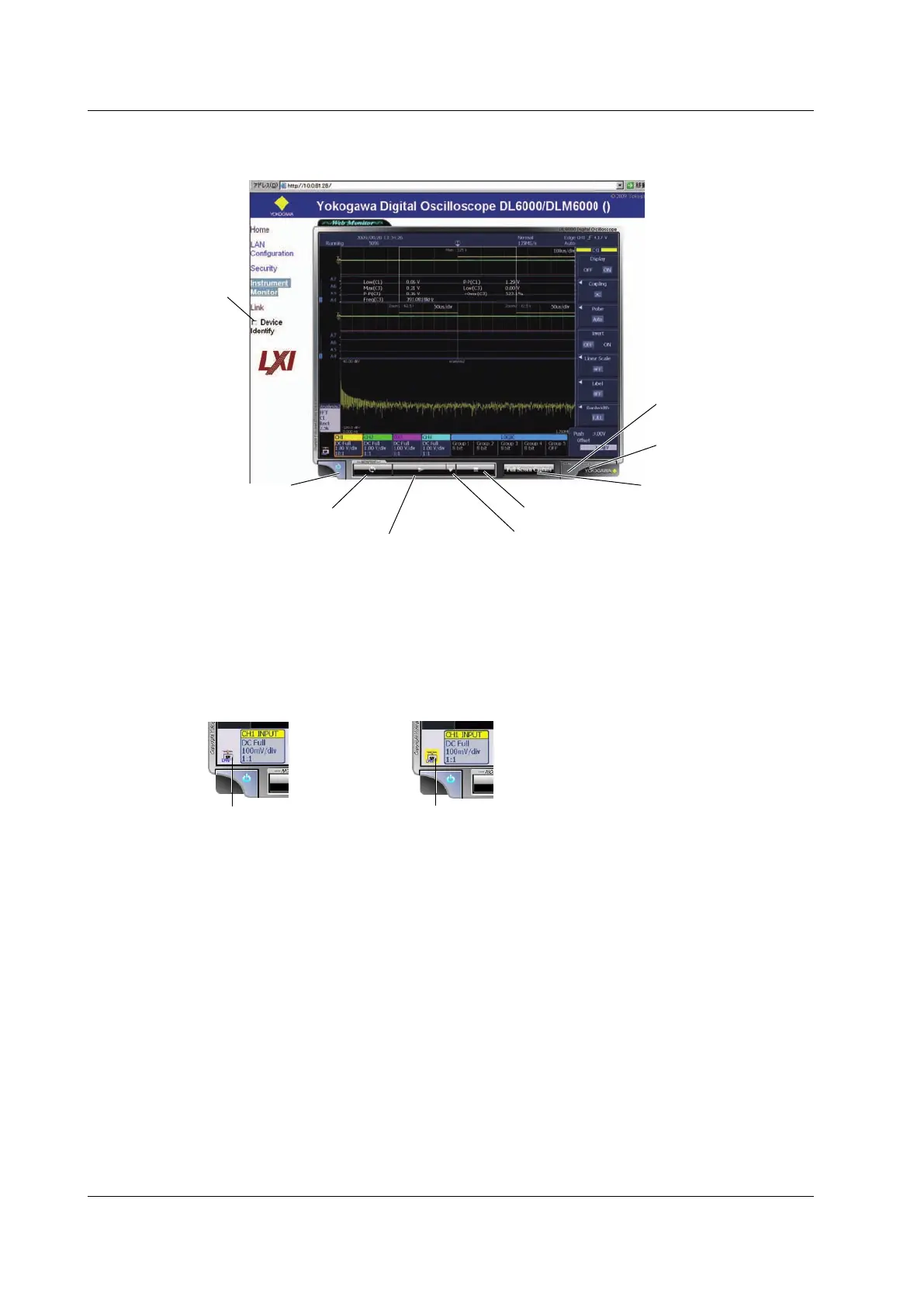

On the DL6000/DLM6000 Web page, click Instrument Monitor to monitor the DL6000/DLM6000.
Closes the browser
Starts updating the screen
The display is updated
automatically at the rate
that you specified.
Stops updating the screen
Sets the screen update rate
Click here to display a menu for setting
the screen update rate.You can set the
update rate to 2, 5, 10, 30, or 60 s.
Takes a screen capture
The entire screen is captured.
Starts measurement on
the DL6000/DLM6000
Stops measurement on
the DL6000/DLM6000
Manually updates
the screen
Shows or hides the
connection status
Showing and Hiding the Connection Status
If you select the Device Identify check box, an icon that indicates the connection status blinks in
yellow on the DL6000/DLM6000 screen.
When the Device Identify
check box is selected
When the Device Identify
check box is cleared
This icon indicates the
connection status.
Blinks in yellow
