YOKOGAWA DL6000 Series User Manual

2-7
IM DLM6054-01EN
Features
3
2
1
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
Index
App
Edge OR Trigger (ENHANCED)
The DL6000/DLM6000 triggers on multiple trigger source edges.
When the DL6000/DLM6000 triggers using Edge OR, the trigger source frequency is limited to 200
MHz or less.

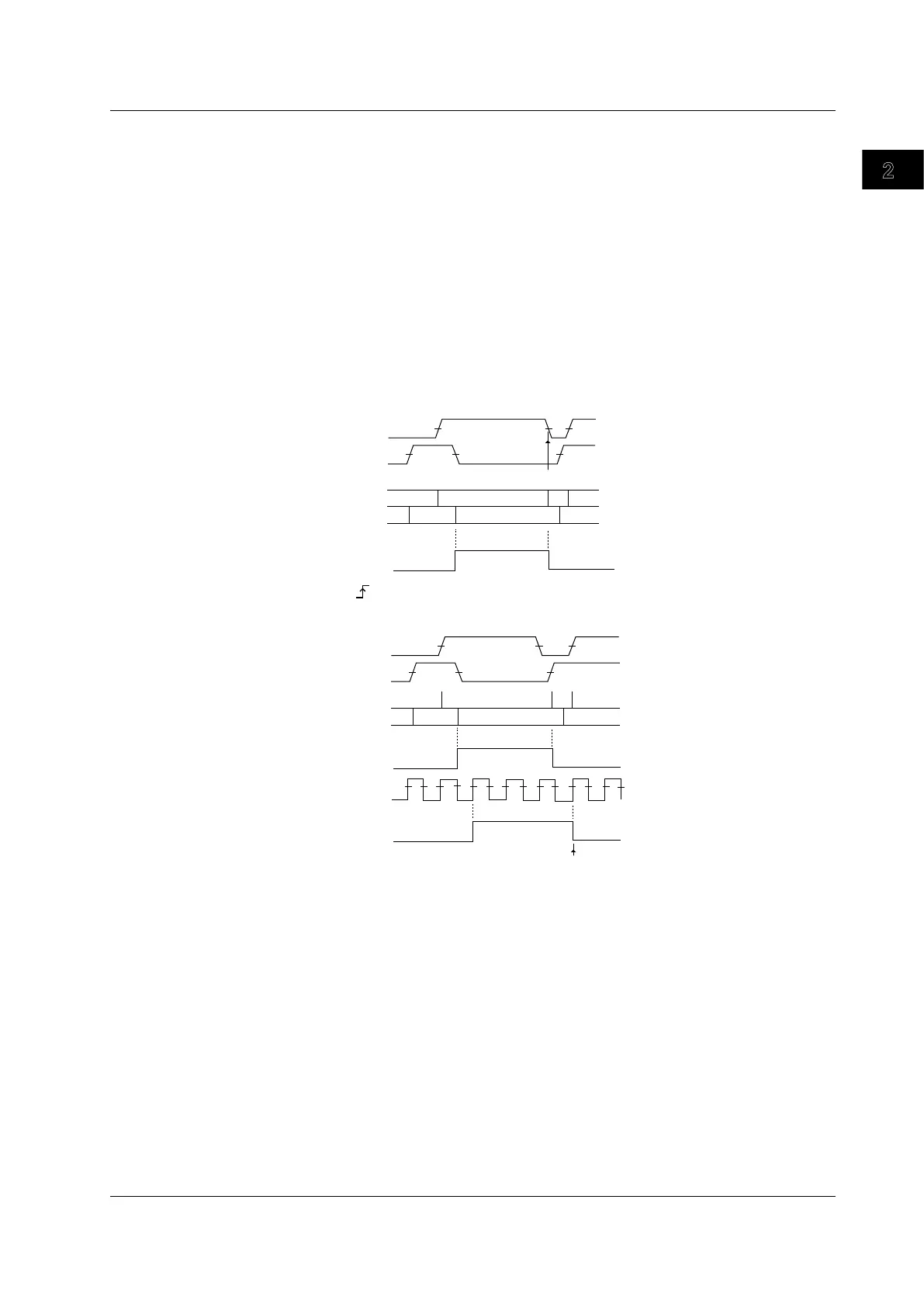

State and Logic State Triggers (ENHANCED)
The DL6000/DLM6000 triggers when the result of comparing the signal states to their specified state
conditions changes from met to not met or from not met to met. If you specify a clock source, the
DL6000/DLM6000 samples the comparison results using the clock and detects the point of change in
sync with the clock.
You cannot trigger using combinations of analog and logic signal states.
L
H
H
CH1
CH2
Clock source: None
State: CH1 = H, CH2 = L, other channels = X, AND
Condition: Exit
Trigger
CH1
CH2
H
H
L
L
L
Not met Not met
Met
Result of comparison
with the state conditions
Not met
Not met
Not met
Not met
Met
Met
CH1
CH2
Trigger
CH3
Clock source: CH3,
State: CH1 = H, CH2 = L, CH4 = X, AND
Condition: Exit
L
H
H
CH1
CH2
H
H
L
L
L
Results of comparisons
that have been sampled
using the clock
Result of comparison
with the state conditions
2.3 Triggering
