4-4
IM DLM6054-01EN
How to Enter Values in Setup Dialog Boxes
Use the jog shuttle or the SET key to move the cursor up, down, left, and right. Depending on the
position of the cursor, pressing SET can have one of the following effects:
• T
urns a check box on or off.
• Performs an action.
• Displays a related soft key menu.
• Changes a setting.
• Displays the selected menu. (After you select a menu with the
jog shuttle, you can press SET to
confirm the selection.)
• Displays a related dialog box.
• Displays a keyboard. (For information about how to operate th
e keyboard, see section 4.2.)

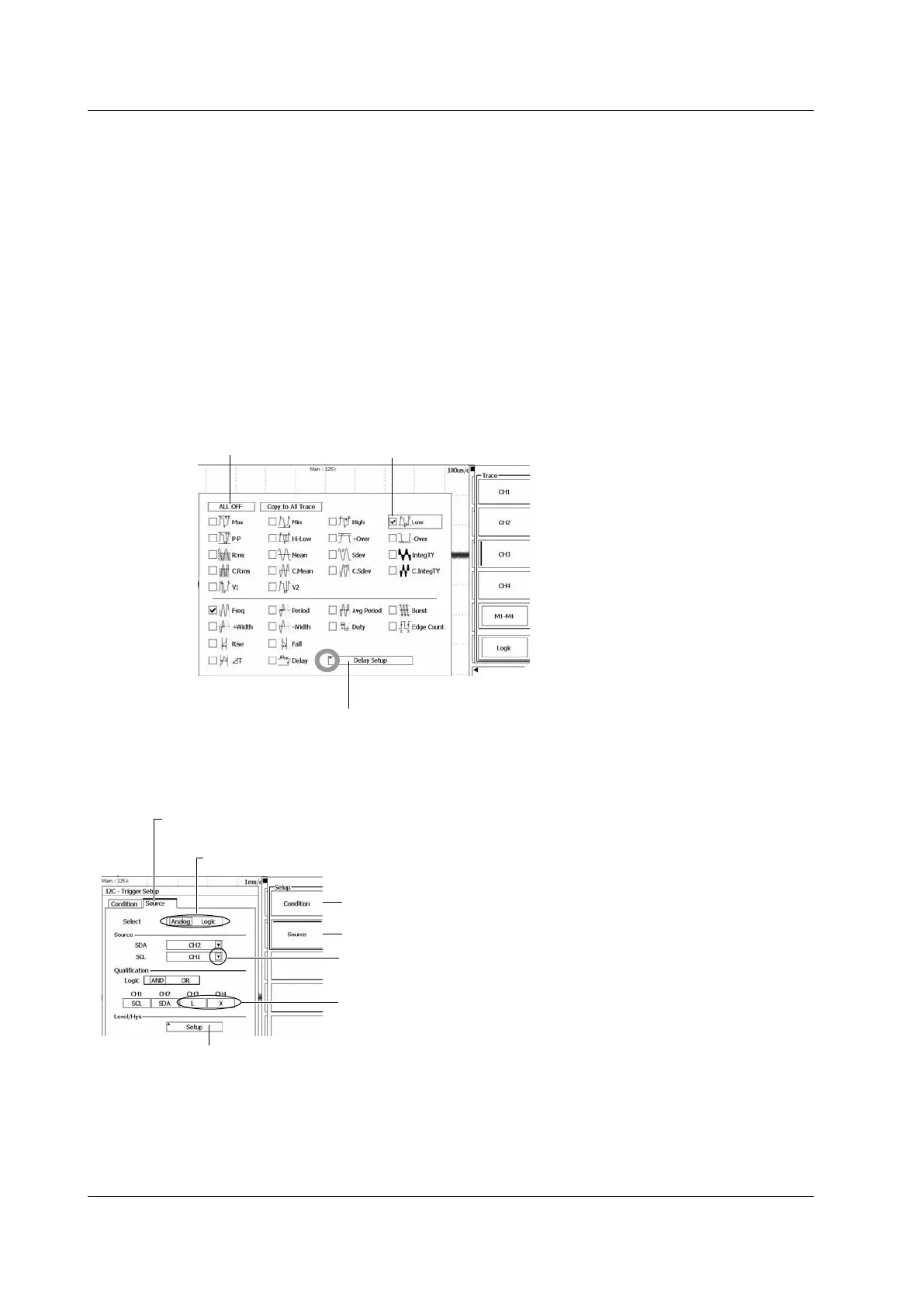

Dialog Box Operation Example 1
Press SET to execute.
Press SET to display a related soft key menu.
(When â—„ appears)
After you move the cursor with the jog shuttle or the SET key
(by moving it up, down, left, right), press SET to select or
deselect the item.
Dialog Box Operation Example 2
Switches to the Condition tab
Switches to the Source tab
Move the cursor to the tab that you want to select, and press SET.
(You can also select a tab by pressing the Condition soft key or the Source soft key.)
Press SET to switch between Analog and Logic.
Press SET to display a selection menu.
(Select an item in the menu using the jog shuttle and SET.)
Switches between H, L, and X each time
you press SET
Press SET to display a related dialog box.
4.1 Key and Dialog Box Operations
To Next Page
