YOKOGAWA DL6000 Series User Manual

4-3
IM DLM6054-01EN
Basic Operations
3
2
1
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
Index
App

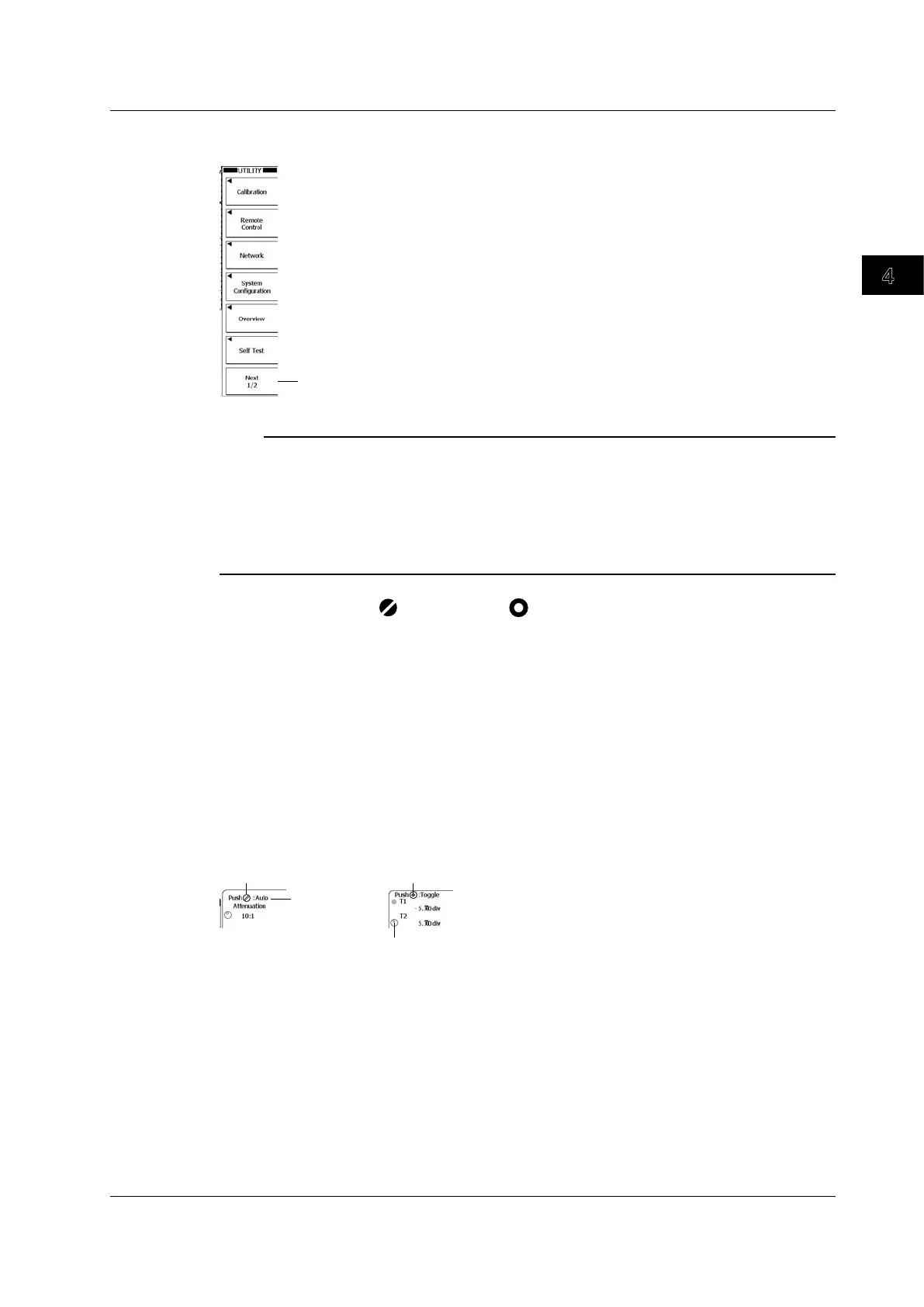

Switching Pages in Setup Menus
Displays the next page of the menu.
(Press Back 2/2 to display the previous page of the menu.)
Note
When there are multiple pages in a setup menu, the DL6000/DLM6000 remembers the page that was last
selected until the power is turned off. This means that if you switch out of a setup menu by pressing another
panel key and then open the setup menu again, the last page that you were viewing will appear.
The explanations in this manual are written under the assumption that the first page of a setup menu will
appear when you press its corresponding panel key.
The menu that actually appears when you press a panel key may be different from the menu described in
this manual.
Using the RESET ( ) and SET ( ) Keys
When you specify a value with the jog shuttle, a RESET key mark or a SET key mark will appear in the
jog shuttle setup menu.
RESET Key Mark
If the RESET key mark is displayed, you can press RESET to reset the value to its default.
(Depending on the condition of the DL6000/DLM6000, the value may not return to its default.) The
default value is displayed next to the RESET key mark.
SET Key Mark
If there are two values to set, the SET key mark appears. Press SET to select which value you want
to set using the jog shuttle. The jog shuttle mark of the selected value is larger.
Just as when the RESET
key mark is displayed, you can press RESET to reset the value to its
default.
RESET key mark SET key mark
Default value
Value selected for jog shuttle adjustment
How to Display the Setup Menus That Are Written in Purple below
the Keys
In the explanations in this manual, “SHIFT+key name (written in purple)” is used to indicate the
following operation.
1.
Press SHIFT. The SHIFT key illuminates to indicate that the keys are shifted.
Now you can select the setup menus written in purple below the keys.
2.
Press the key for the setup menu that you want to display.
How to Clear Setup Menus and Setup Dialog Boxes
Press ESC to clear the active setup menu or setup dialog box.
4.1 Key and Dialog Box Operations
