5.1 Vertical Axis Settings for Analog Input Signals
This section explains how to configure the vertical scale, vertical position, input coupling, probe
attenuation, linear scaling, and bandwidth limit settings of the CH1 through CH4 input signals.
Procedure
CH Menu

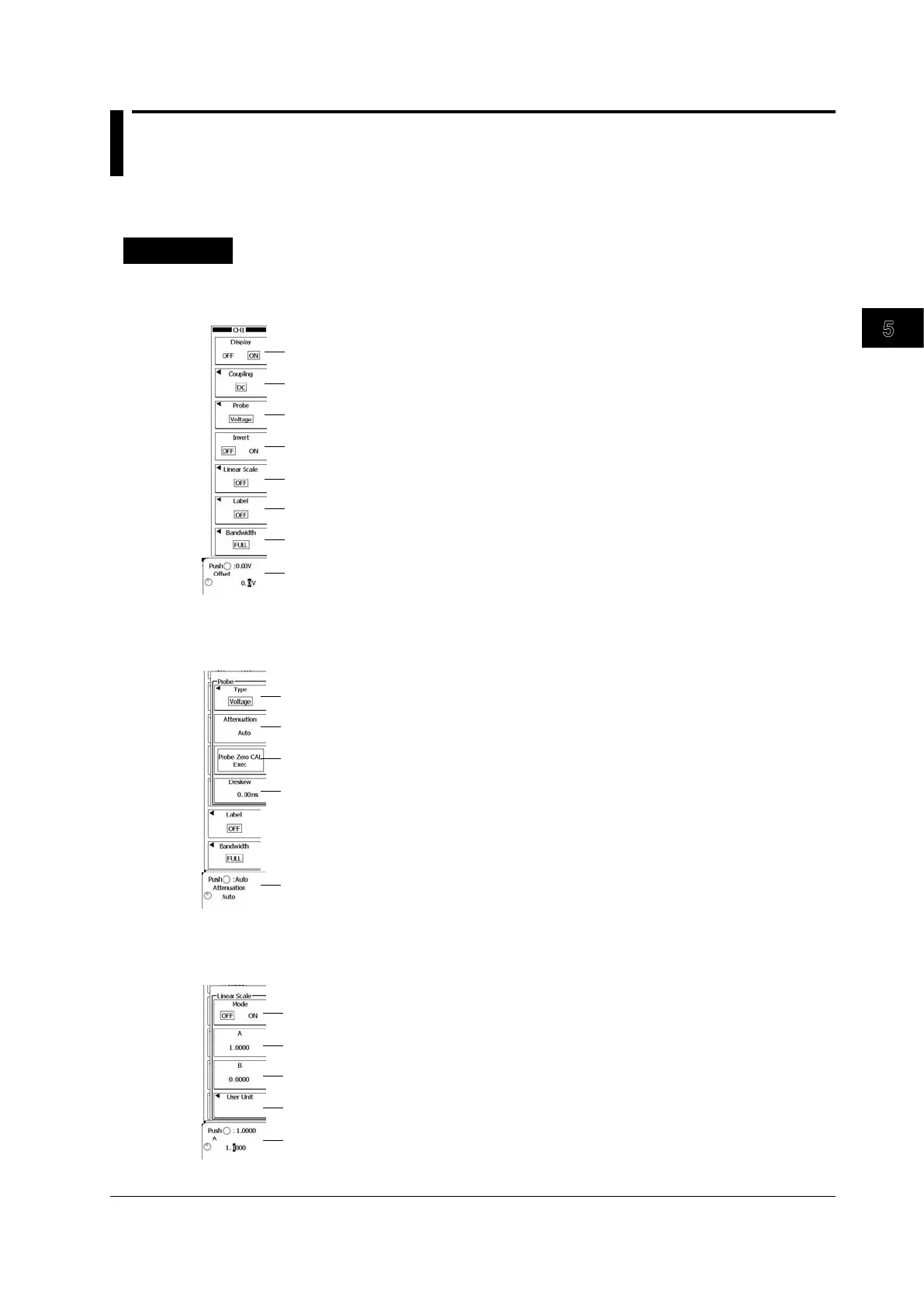

Press a key from CH1 to CH4 to display the following menu.
Turns the waveform display on and off
Set the input coupling (AC, DC, GND, DC50).
Set the probe attenuation.
Turns inverted waveform display on and off
Set the linear scaling.
Configure label settings (turn the label on or off and set the label name).
Set the bandwidth limit (FULL, 200MHz, 20MHz, 8M-1MHz, 500k-8kHz).
Set the offset voltage.
Setting the Probe Attenuation (Probe)
Press the Probe soft key to display the following menu.
Set the probe type (voltage, current).
Set the attenuation (using the jog shuttle).
Set the deskew value (using the jog shuttle).
Executes automatic zero adjustment for the current probe.
(Zero adjustment can only be executed when a probe is connected.)
Set the attenuation and the deskew value.
Setting the Linear Scaling (Linear Scale)
Press the Linear Scale soft key to display the following menu.
Turns linear scaling on and off
Set scaling coefficient A (using the jog shuttle).
Set offset B (using the jog shuttle).
Set the unit.
Set scaling coefficient A and offset B.
