5-2
IM DLM6054-01EN

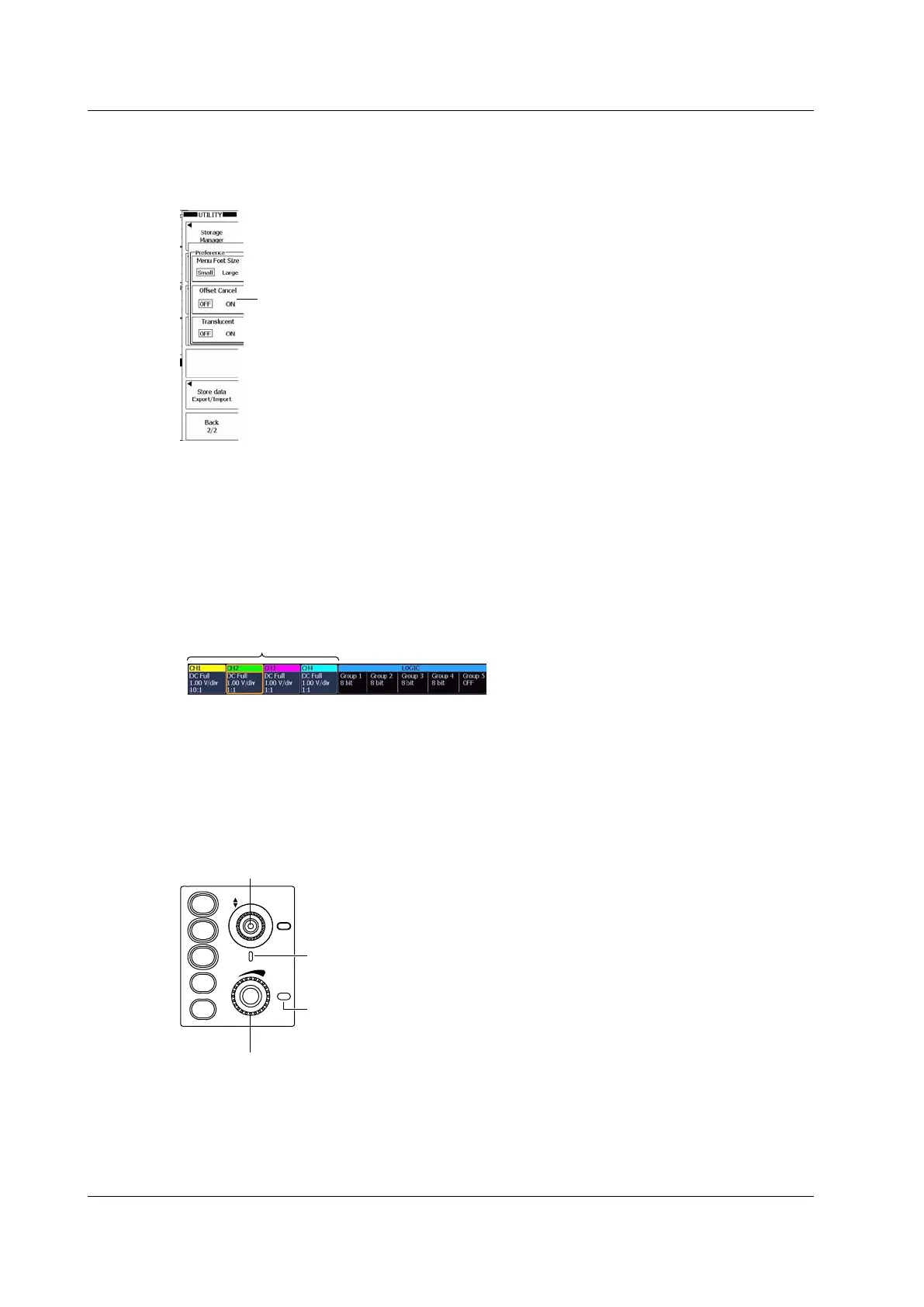

UTILITY Preference Menu
Turning Offset Cancel On and Off
Press UTILITY, the Next soft key, and then the Preference soft key to display the following menu.
Turns Offset Cancel on and off
Setting the Vertical Scale (SCALE)
Press a key from CH1 to CH4 to select the channel whose vertical scale you want to set.
The LED between the SCALE and POSITION knobs illuminates in the representative color for the
selected channel (yellow, green, magenta, or cyan).
Turn the SCALE knob to set the vertical scale.
The SCALE knob has a push switch. If you push the knob, the FINE indicator illuminates, and you can
set the vertical scale at a higher resolution.
Displays the vertical scale, input impedance,
and probe attenuation for each channel
Setting the Vertical Position (POSITION)
Press a key from CH1 to CH4 to select the channel whose vertical position you want to set.
The LED between the SCALE and POSITION knobs illuminates in the representative color for the
selected channel (yellow, green, magenta, or cyan).
Turn the POSITION knob to set the vertical position.
You can set the vertical position to 0 div by pressing the knob.
VERTICAL
POSITION
PUSH
0DIV
SCALE
PUSH
FINE
1
2
3
4
LOGIC
When the FINE indicator is illuminated, you can set
the vertical position at a higher resolution.
(Press the push knob to turn on the FINE indicator.)
Illuminates in the representative color for the
selected channel
5.1 Vertical Axis Settings for Analog Input Signals
