• To exit the menu during operation, press ESC located
above the soft keys.
• For a description of the operation using a USB keyboard or
a USB mouse, see section 4.3.

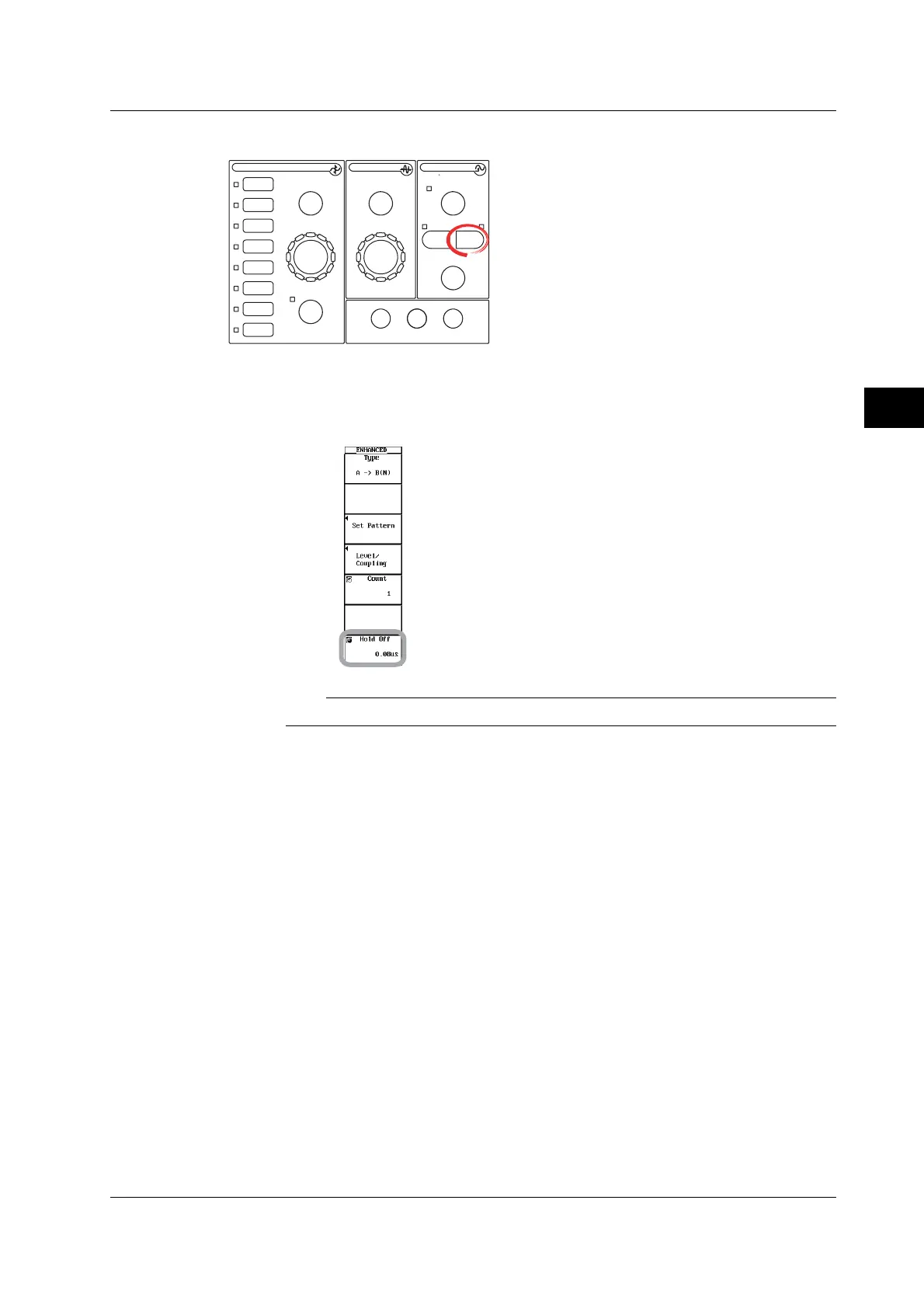

1. Press ENHANCED. The ENHANCED menu appears.
2. Press the Hold Off soft key.
3. Turn the jog shuttle to set the hold off time.
Pressing RESET resets the value to 0.08 us.
Note
The hold off time setting applies to both simple and enhanced triggers.
