Checking the Contents of the Package
Unpack the box and check the contents before operating the instrument. If some of the
contents are not correct, or if any items are missing or damaged, contact the dealer from
whom you purchased them.
DL7440/DL7480

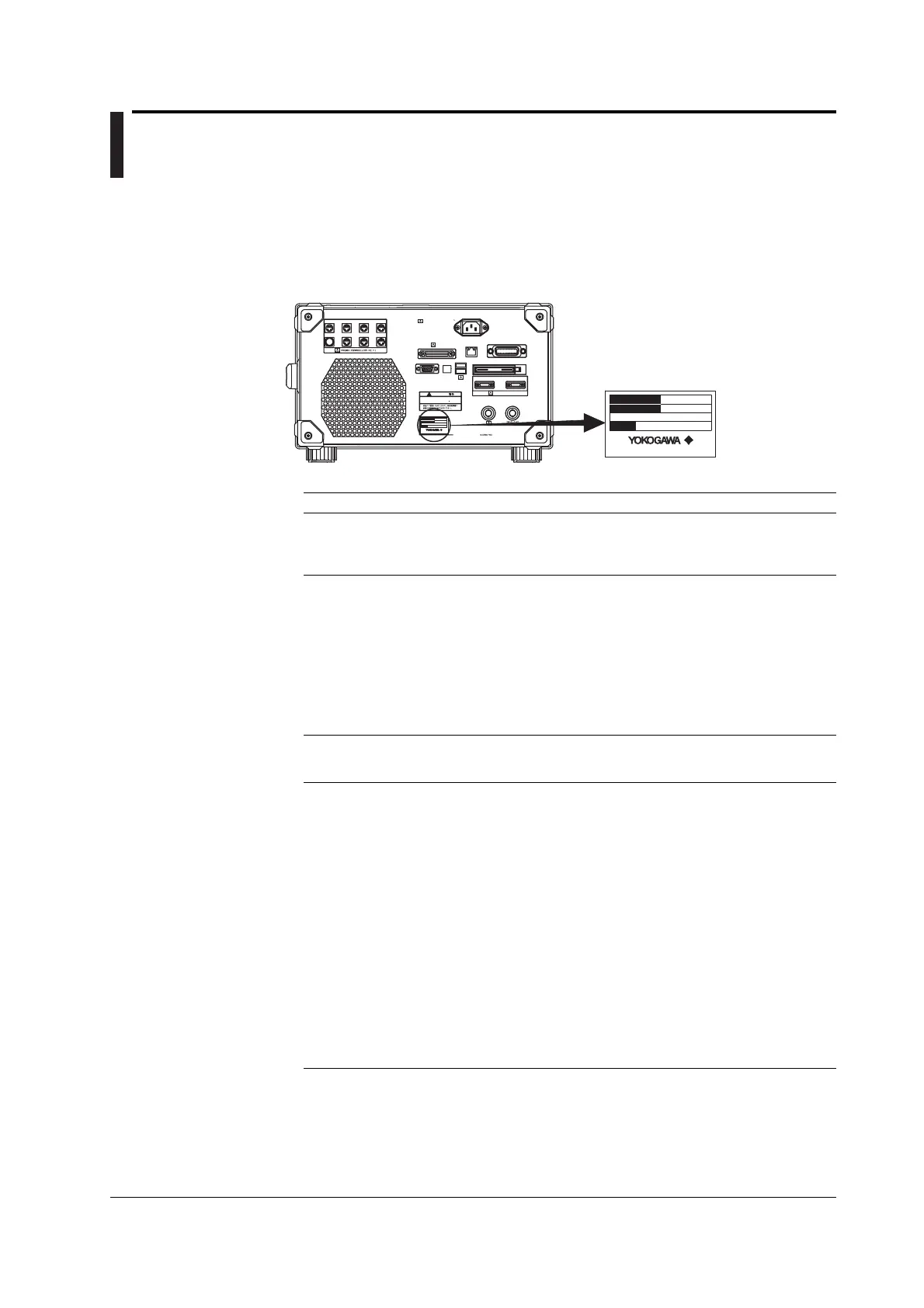

Check that the model name and suffix code given on the name plate on the rear panel
match those on the order.
100-120/220-240V AC
320VA MAX 50/60Hz
SCSI
LINK ACT
100BASE-TX
ETHERNET
GP-IB(IEEE488)
USB
USB
PERIPHERAL
LOGIC PROBE
EXT CLOCK IN
EXT TRIG IN
TRIG GATE IN
VIDEO OUT
(VGA)
WARNING
Do not operate within reading the
safety precautions in the user
s manual.
A
ABCD
EFGH
B
MODEL
NO.
SUFFIX
Made in Japan
MODEL
NO.
SUFFIX
Made in Japan
Model and Suffix Codes
Model Suffix Specifications
701450 (DL7440) 4-channel, 4 MW memory model
701460 (DL7440) 4-channel, 16 MW memory model
701470 (DL7480) 8-channel, 4 MW memory model
701480 (DL7480) 8-channel, 16 MW memory model
Power cord -D UL/CSA Standard power cord (Part No.: A1006WD)
[Maximum rated voltage: 125 V; Maximum rated current: 7 A]
-F VDE Standard Power Cord (Part No.: A1009WD) [Maximum
rated voltage: 250 V; Maximum rated current: 10 A]
-Q BS Standard Power Cord (Part No.: A1054WD) [Maximum
rated voltage: 250 V; Maximum rated current: 10 A]
-R AS Standard Power Cord (Part No.: A1024WD) [Maximum
rated voltage: 250 V; Maximum rated current: 10 A]
-H GB Standard Power Cord (complies with the CCC)(Part
No.: A1064WD) [Maximum rated voltage: 250 V, Maximum
rated current: 10 A]
Built-in storage -J1 Floppy disk drive
media drive -J2 Zip drive
(Select either drive for the built-in storage media drive at the time of purchase)
Options /B5 Built-in printer
1
/E4 4 additional 700988 passive probes
2,6,7
(option only for the
DL7480)
/EX4 4 additional 701941 miniature passive probes in place of
700988 passive probes
6
/EA4 4 additional 701941 miniature passive probes
7
(option only
for the DL7480)
/P4 4 additional probe power supply terminals
3
(option only for
the DL7480)
/N3 Logic input for the 4 MW memory model
/N4 Logic input for the 16 MW memory model
/C7 SCSI
/C10 Ethernet interface
/G2 User-defined computation
/G4 Power supply analysis function
4
(includes user-defined
computation)
/F5 I
2
C + SPI bus analysis
5
/F7 CAN + SPI bus analysis
5
/F8 I
2
C + CAN + SPI bus analysis
5
/F9 FlexRay Signal Analyzer
8
11 roll paper (B9850NX) is included.
2 The DL7480 comes standard with four 700988 passive probes.
3 The DL7480 comes standard with 4 probe power supply terminals.
4 The /G4 option contains the user-defined computation function. Therefore, it cannot be
specified simultaneously with the /G2 option.
5 /F5, /F7, and /F8 options cannot be specified simultaneously.
6 /E4 and /EX4 options cannot be specified simultaneously.
7 /E4 and /EA4 options cannot be specified simultaneously.
8 When the /F9 option is specified, the marking on the DL7400 front panel changes to
“FLEXRAY SIGNAL ANALYZER.” In addition, the FLEXRAY key (SHIFT+MEASURE) is added.
