YOKOGAWA DL7440 User Manual

4-3
IM 701450-01E
4
Common Operations

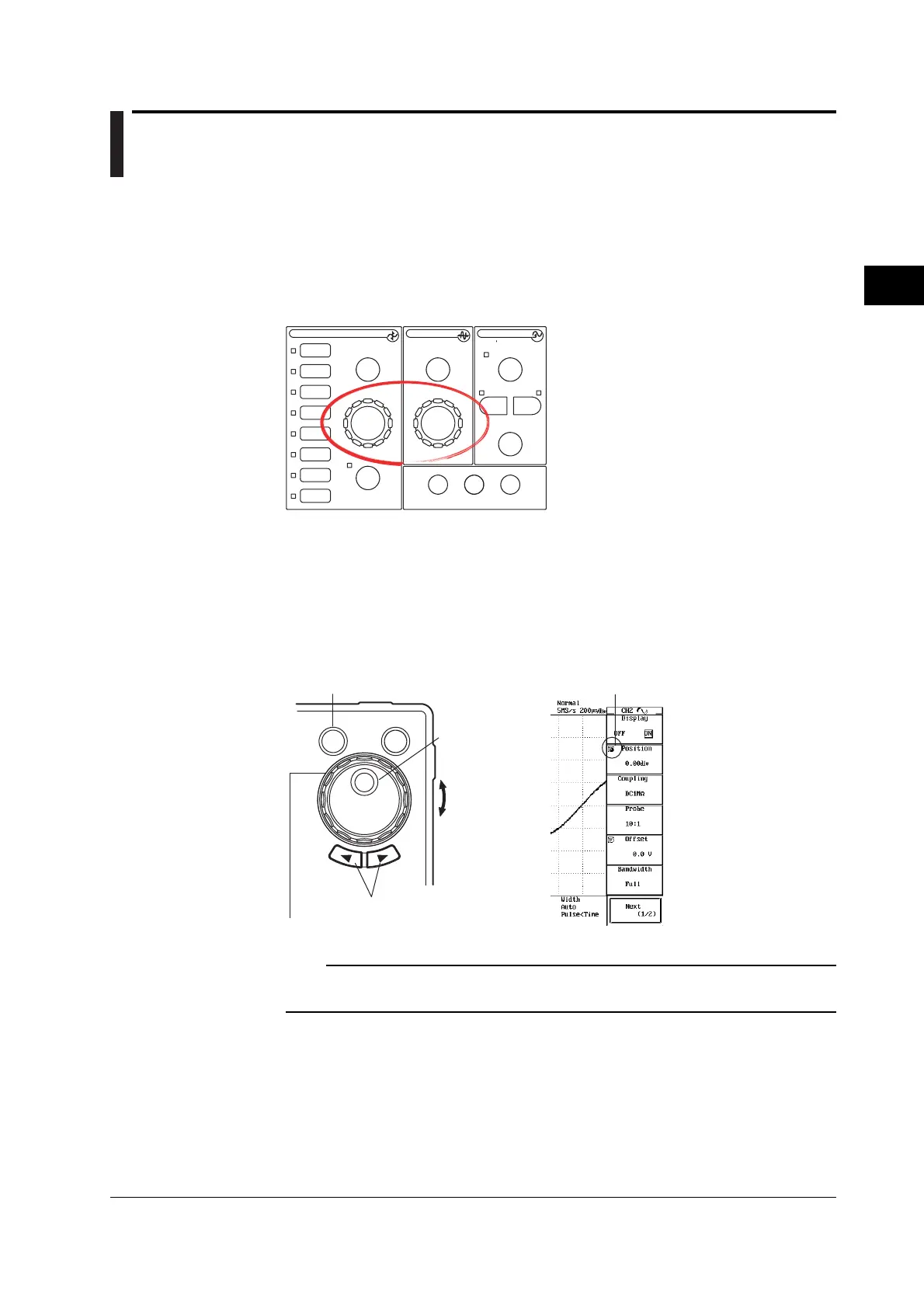

4.2 Entering Values and Strings
Entering Values
Entering Values Directly Using the Dedicated Knobs
The dedicated knobs indicated below can be turned to directly enter values.
• V/DIV knob
• TIME/DIV knob
SEARCH
PRESET ZOOM MODE
POSITION
ENHANCED
SIMPLE
LOGIC
CH 1
CH 2
CH 3
CH 4
CH 5
CH 6
CH 7
CH 8
V/DIV TIME/DIV
VERTICAL TRIGGER
TRIG D
ACTION
DELAY
CLEAR TRACESNAPSHOT HELP
HORIZONTAL
Entering Values Using the Jog Shuttle
After selecting the setup item using the soft key, use the jog shuttle to change the value
(in the explanations in this manual, this operation may be indicated as “jog shuttle &
SELECT”. The outer shuttle ring can be used step through the values in large
increments. On some items, the arrow keys below the jog shuttle can be used to change
the selected digit.
RESET SELECT
Resets the value to the initial value.
Arrow keys: Changes the current digit.
Jog shuttle
Shuttle ring
Increases
the value.
Decreases
the value.
Mark indicating that the jog shuttle
can be used to set the value
Note
The items that can be changed using the jog shuttle are reset to their default values when the
RESET key is pressed.
