7-4 IM 701450-01E

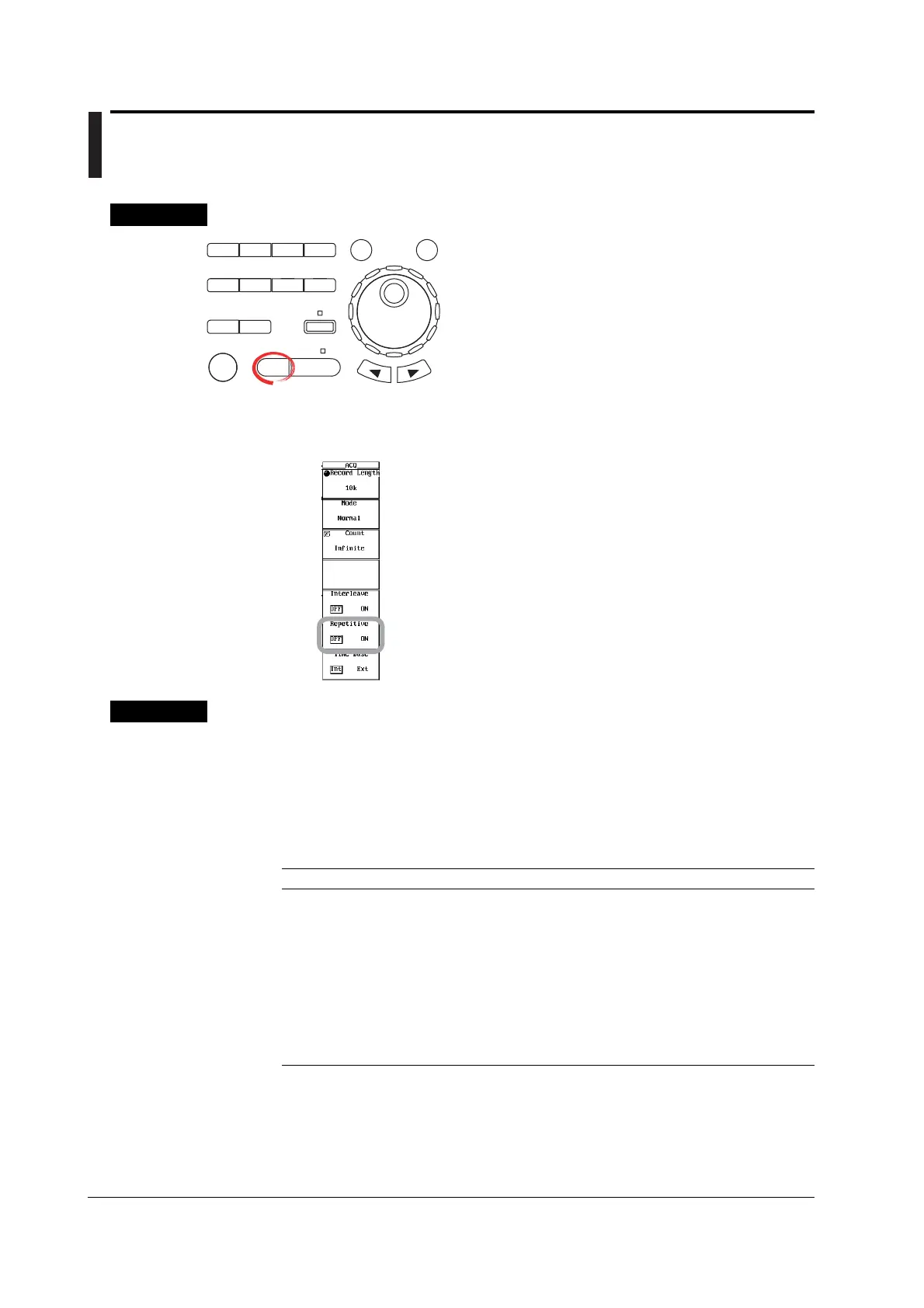

7.4 Turning ON/OFF Repetitive Sampling Mode
<For a description of this function, refer to page 2-15.>
Procedure
X-Y
PHASE
MENU MENU
SETUP FILE
MISC
RESET
SELECT
MATH
SHIFT
GO/NOGO
CURSOR
MEASURE
HISTORY
PRINT
ACQ
START/STOP
IMAGE SAVE
DISPLAY
• To exit the menu during operation, press ESC located
above the soft keys.
• For a description of the operation using a USB keyboard or
a USB mouse, see section 4.3.
1. Press ACQ. The ACQ menu appears.
2. Press the Repetitive soft key to select ON or OFF.
Explanation
You can turn repetitive sampling ON or OFF. For a description of the record length and
sample rate when in repetitive sampling mode, see appendix 1.
Possible T/div Settings for Performing Repetitive Sampling
If repetitive sampling mode is turned ON and the time axis is set according to the table
below, repetitive sampling is performed. The possible T/div settings for performing
repetitive sampling vary depending on the record length and model.
Record Length T/div
1 kW 1 ns/div to 50 ns/div (1 ns/div to 20 ns/div)
10 kW 1 ns/div to 500 ns/div (1 ns/div to 200 ns/div)
50 kW 1 ns/div to 2 µs/div (1 ns/div to 1 µs/div)
100 kW 1 ns/div to 5 µs/div (1 ns/div to 2 µs/div)
250 kW 1 ns/div to 10 µs/div (1 ns/div to 5 µs/div)
500 kW 1 ns/div to 20 µs/div (1 ns/div to 10 µs/div)
1 MW 1 ns/div to 50 µs/div (1 ns/div to 20 µs/div)
2 MW 1 ns/div to 100 µs/div (1 ns/div to 50 µs/div)
4 MW 1 ns/div to 200 µs/div (1 ns/div to 100 µs/div)
8 MW 1 ns/div to 500 µs/div (1 ns/div to 200 µs/div)
16 MW – (1 ns/div to 5 ns/div)
2
1 The record length is up to 2 MW when interleave mode is OFF on the 4 MW memory model
(701450 and 701470). The values inside the parentheses are the selectable ranges when
interleave mode is ON.
2 The repetitive sampling mode setting remains OFF, but repetitive sampling is performed.
To Next Page
