6-30 IM 701450-01E

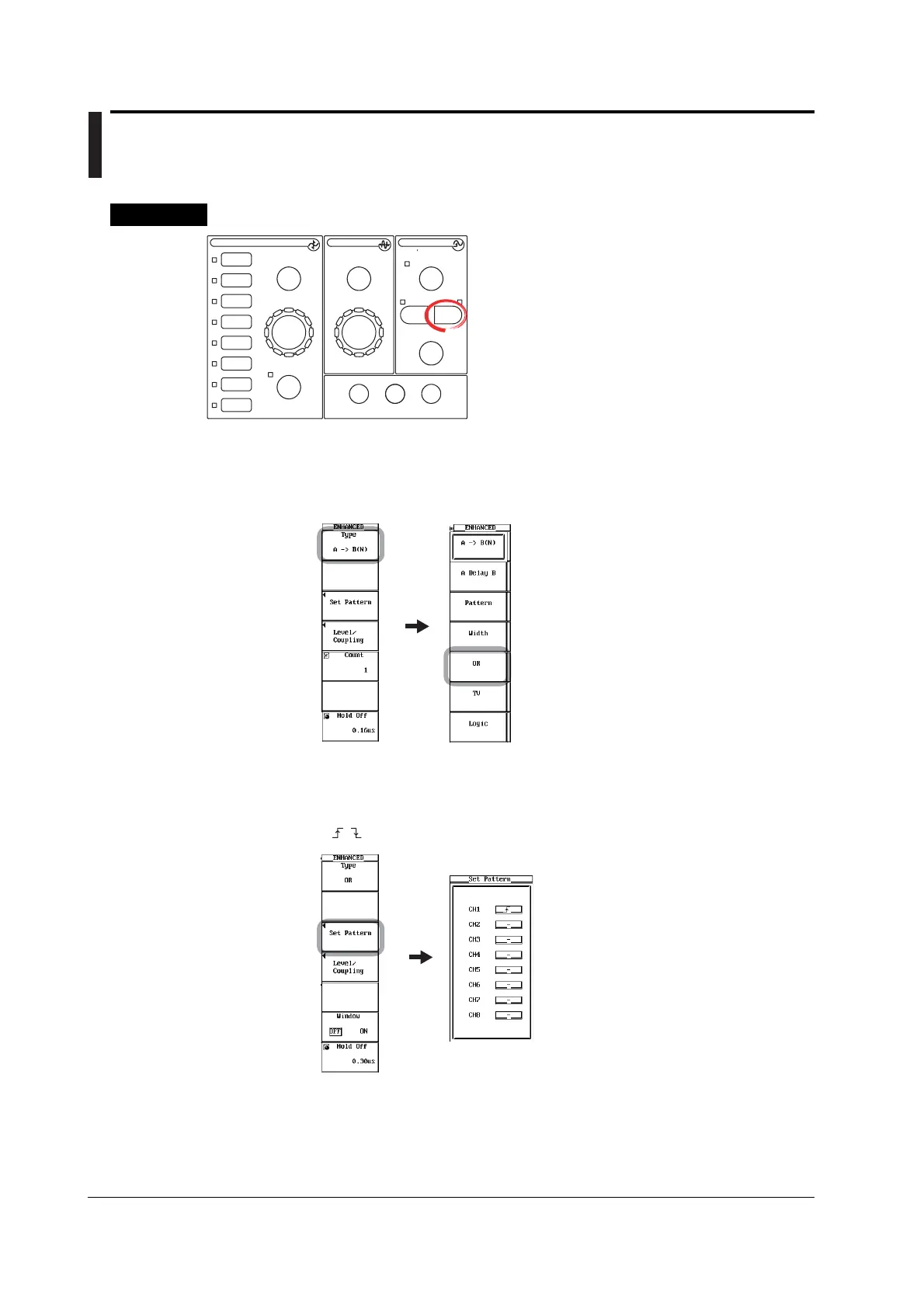

6.12 Setting the OR Trigger (ENHANCED)
<For a description of this function, refer to page 2-11.>
Procedure
SEARCH
PRESET
ZOOM
MODE
POSITION
ENHANCED
SIMPLE
LOGIC
CH 1
CH 2
CH 3
CH 4
CH 5
CH 6
CH 7
CH 8
V/DIV TIME/DIV
VERTICAL
TRIGGER
TRIG D
ACTION
DELAY
CLEAR TRACESNAPSHOT
HELP
HORIZONTAL
• To exit the menu during operation, press ESC located
above the soft keys.
• In the procedural explanation below, the term
jog shuttle & SELECT refers to the operation of
selecting/setting items and entering values using the
jog shuttle and SELECT and RESET keys. For details
on this operation, see sections 4.1 or 4.2.
• For a description of the operation using a USB keyboard
or a USB mouse, see section 4.3.
Setting the Trigger Type
1. Press ENHANCED. The ENHANCED menu appears.
2. Press the Type soft key. The Type menu appears.
3. Press the OR soft key.
Setting the Slope of the Edge Trigger of Each Channel
4. Press the Set Pattern soft key. The Set Pattern dialog box opens.
5. Use jog shuttle & SELECT to set the slope of the edge trigger of each channel
to
, , or – (IN, OUT, or – if Window is ON).
6. Press ESC. The Set Pattern dialog box closes.
To Next Page
