9-6 IM 701450-01E

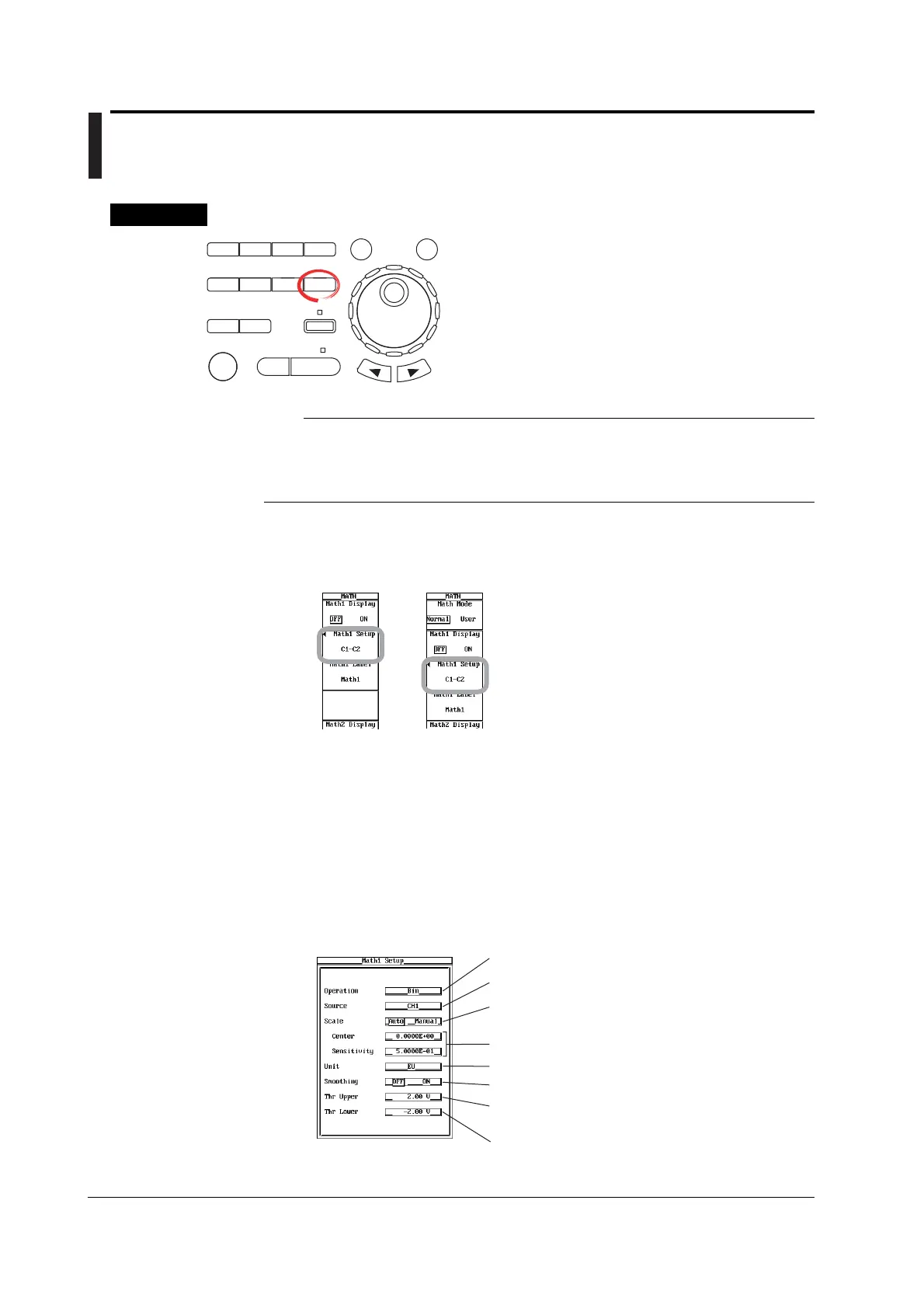

9.3 Performing Binary Computation
Procedure
X-Y
PHASE
MENU MENU
SETUP FILE
MISC
RESET
SELECT
MATH
SHIFT
GO/NOGO
CURSOR
MEASURE
HISTORY
PRINT
ACQ
START/STOP
IMAGE SAVE
DISPLAY
• To exit the menu during operation, press ESC located
above the soft keys.
• In the procedural explanation below, the term
jog shuttle & SELECT refers to the operation of
selecting/setting items and entering values using the
jog shuttle and SELECT and RESET keys. For details
on this operation, see sections 4.1 or 4.2.
• For a description of the operation using a USB keyboard
or a USB mouse, see section 4.3.
Note
• If the user-defined computation option is installed, you must first enter normal computation
mode as described in section 9.1.
• The setup procedures for computed waveform Math1 are described below. Perform similar
steps for Math2.
1. Press the Math1 Setup soft key. The Math1 Setup dialog box opens.
When the user-defined
computation option is installed
Setting the Equation, Unit, Smoothing, and Threshold Level for Binary
Computation
2. Use jog shuttle & SELECT to select the operator for binary computation (Bin)
and the waveform on which to perform computation.
When the Math1 Setup dialog box is closed by pressing ESC or another key, the
specified equation appears in the Math1 Setup menu column.
3. Use jog shuttle & SELECT to set the unit, smoothing, and level when
performing binary computation (convert into 0s and 1s) of computed waveform
Math1.
4. Press ESC. The Math1 Setup dialog box closes.
Select Bin.
Select the waveform on which to perform computation.
Scaling used to display computed waveform Math1
cannot be selected.
The scaling level is fixed. It cannot be changed.
Set the unit of computed waveform Math1.
Tu rn ON/OFF zooming.
Set the level of computed waveform Math1 used to
switch from 0 to 1.
Set the level of computed waveform Math1 used to
switch from 1 to 0.
To Next Page
