Troubleshooting, Maintenance, and Inspection
16.4 Checking the System Conditions (Overview)
Procedure
X-Y
PHASE
MENU MENU
SETUP FILE
MISC
RESET
SELECT
MATH
SHIFT
GO/NOGO
CURSOR
MEASURE
HISTORY
PRINT
ACQ
START/STOP
IMAGE SAVE
DISPLAY
• To exit the menu during operation, press ESC located
above the soft keys.
• For a description of the operation using a USB keyboard or
a USB mouse, see section 4.3.

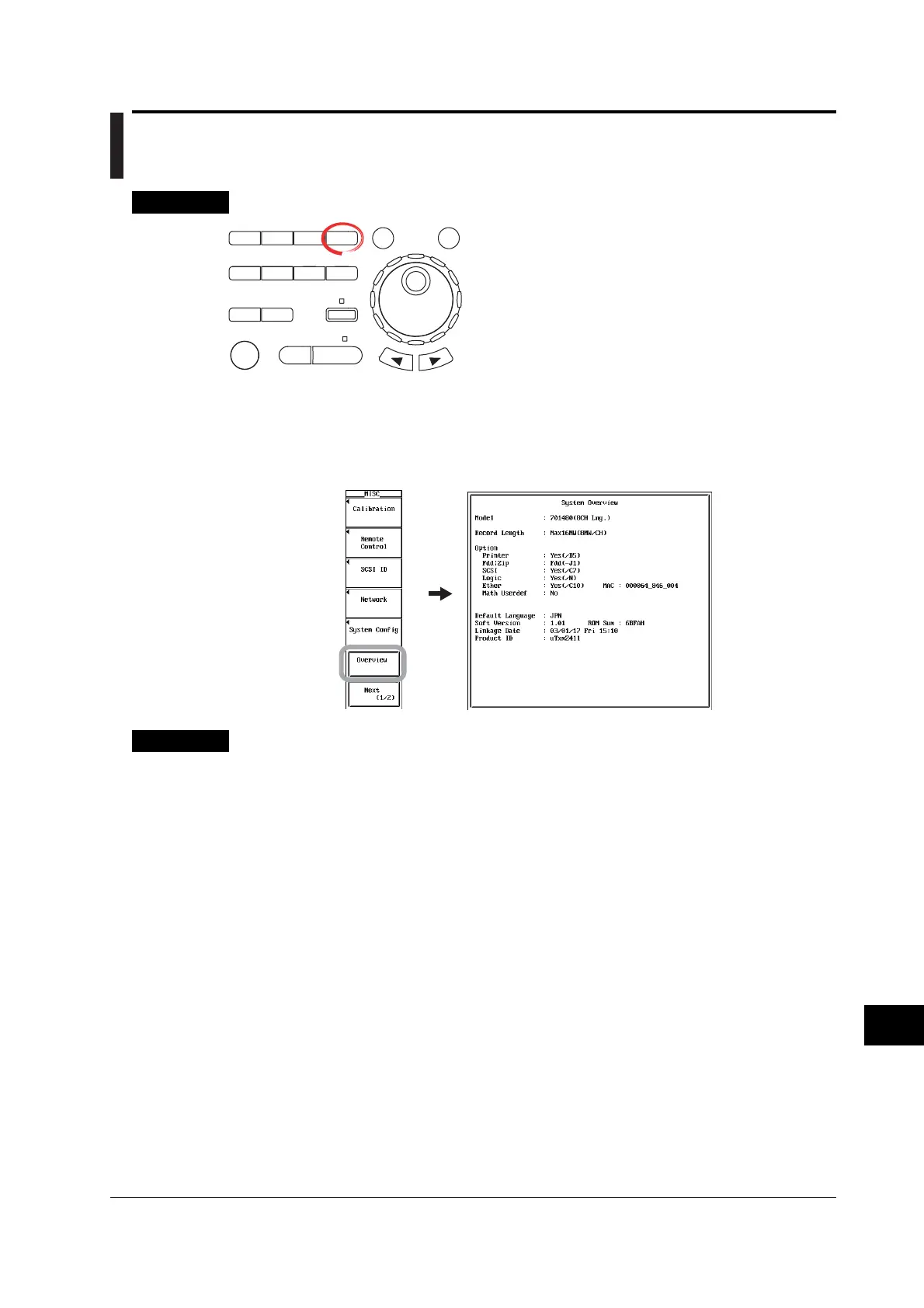

1. Press MISC. The MISC menu appears.
2. Press the Overview soft key. The Overview window opens.
Pressing a panel key other than the Overview soft key clears the Overview
window.
Explanation
You can check the firmware version, model, and the presence or absence of options on
a screen similar to the one shown above.
