Analyzing and Searching Waveforms
10.2 Searching the History Waveforms Using Zones
(History Search)
<For a description of this function, refer to page 2-25.>
Procedure
X-Y
PHASE
MENU MENU
SETUP FILE MISC RESET SELECT
MATH
SHIFT
GO/NOGO CURSOR MEASURE
HISTORY
PRINT
ACQ START/STOP
IMAGE SAVE
DISPLAY
• To exit the menu during operation, press ESC located
above the soft keys.
• For a description of the operation using a USB keyboard or
a USB mouse, see section 4.3.

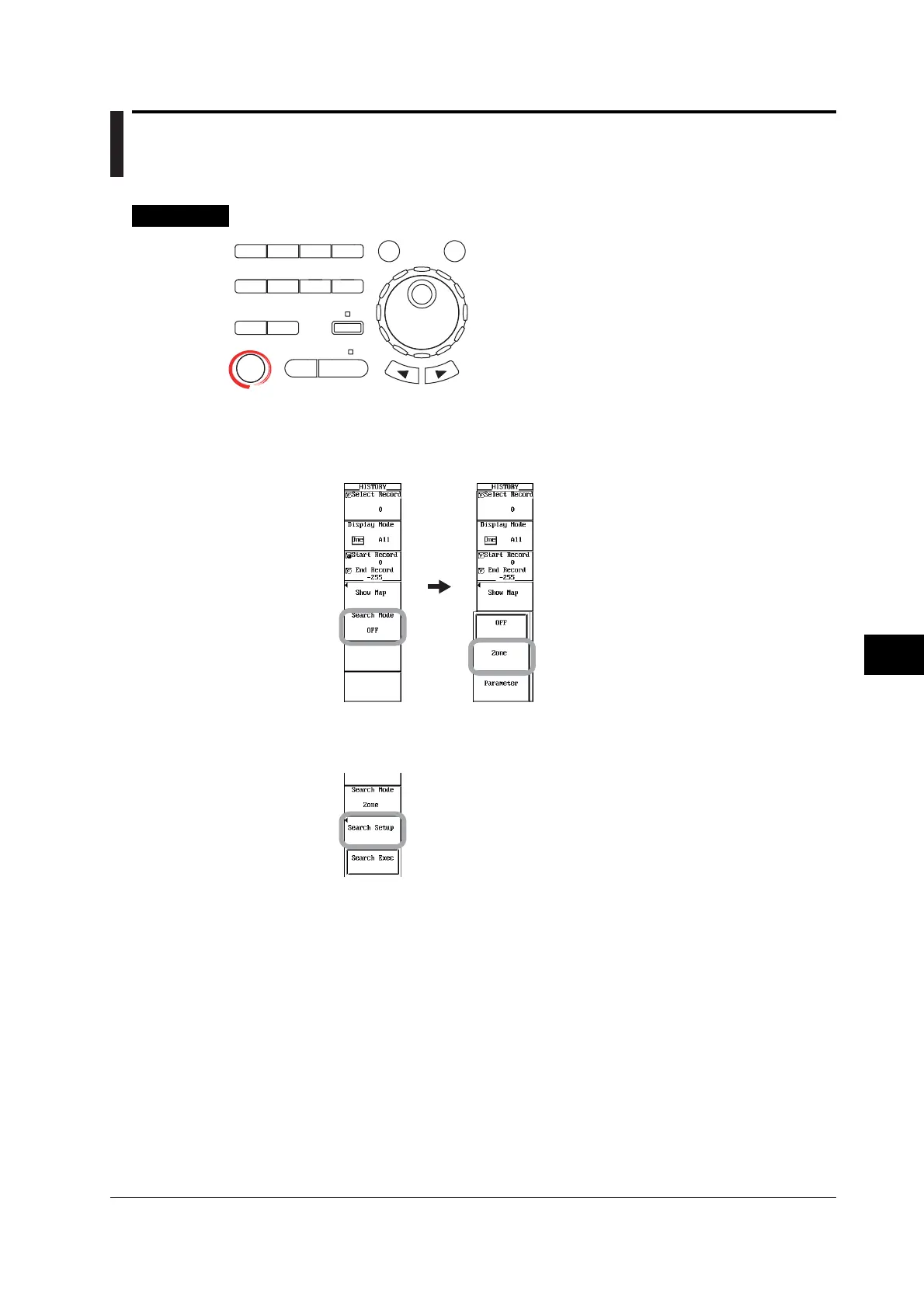

1. Press HISTORY. The HISTORY menu appears.
2. Press the Search Mode soft key. The Search Mode menu appears.
3. Press the Zone soft key.
Setting the Search Zone and Search Conditions
4. Press the Search Setup soft key. The Search Setup menu appears.
