YOKOGAWA DL7440 User Manual

6-18 IM 701450-01E

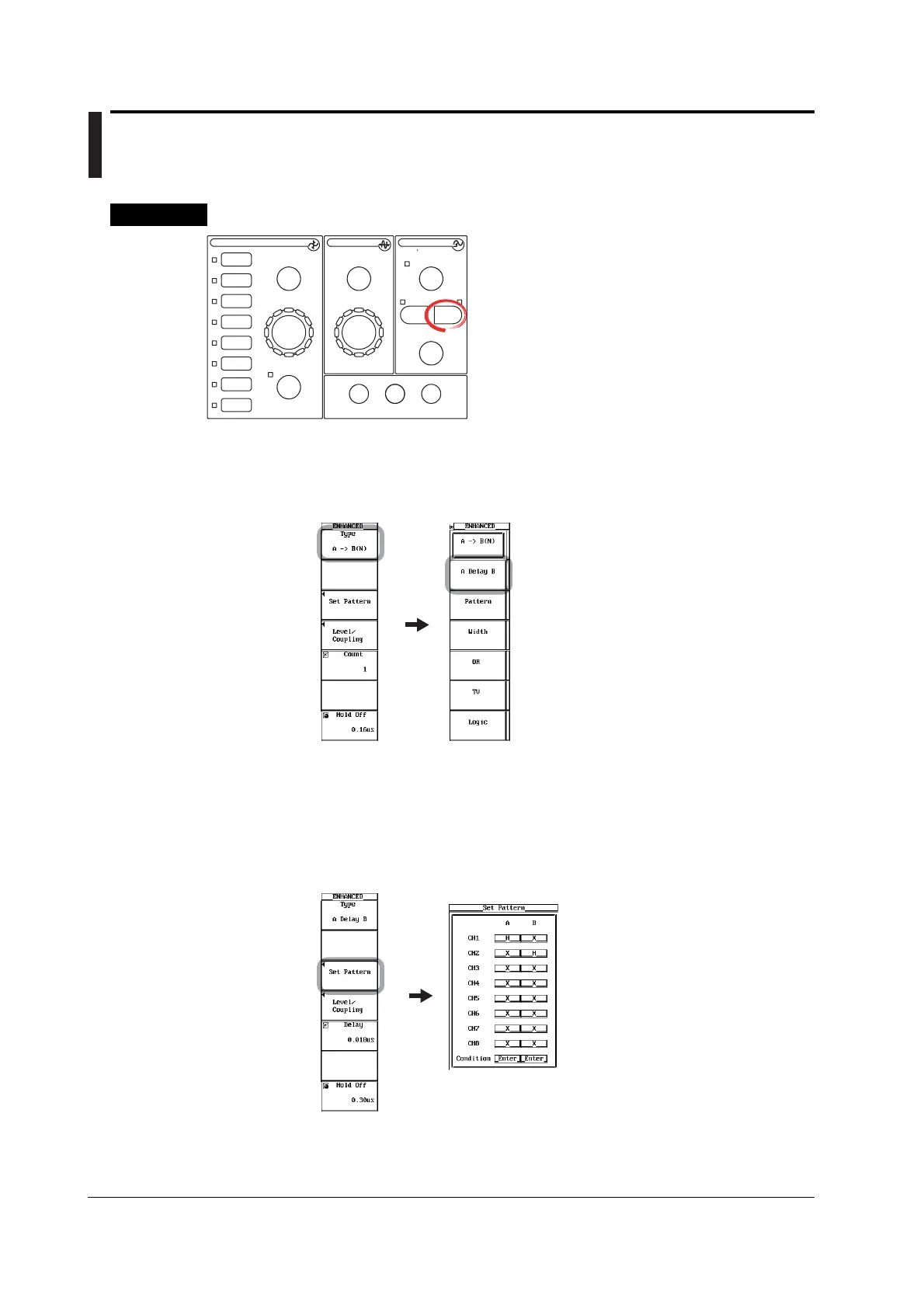

6.9 Setting the A Delay B Trigger (ENHANCED)
<For a description of this function, refer to page 2-9.>
Procedure
SEARCH
PRESET ZOOM MODE
POSITION
ENHANCED
SIMPLE
LOGIC
CH 1
CH 2
CH 3
CH 4
CH 5
CH 6
CH 7
CH 8
V/DIV TIME/DIV
VERTICAL TRIGGER
TRIG D
ACTION
DELAY
CLEAR TRACESNAPSHOT HELP
HORIZONTAL
• To exit the menu during operation, press ESC located
above the soft keys.
• In the procedural explanation below, the term
jog shuttle & SELECT refers to the operation of
selecting/setting items and entering values using the
jog shuttle and SELECT and RESET keys. For details
on this operation, see sections 4.1 or 4.2.
• For a description of the operation using a USB keyboard
or a USB mouse, see section 4.3.
Setting the Trigger Type
1. Press ENHANCED. The ENHANCED menu appears.
2. Press the Type soft key. The Type menu appears.
3. Press the A Delay B soft key.
Setting the Status and Condition of Condition A and Condition B
4. Press the Set Pattern soft key. The Set Pattern dialog box opens.
5. Use jog shuttle & SELECT to set the status of condition A of each channel to
H, L, or X.
6. Use jog shuttle & SELECT to set the condition of condition A to Enter or Exit.
7. Likewise, set condition B.
8. Press ESC. The Set Pattern dialog box closes.
