10-66 IM 701450-01E

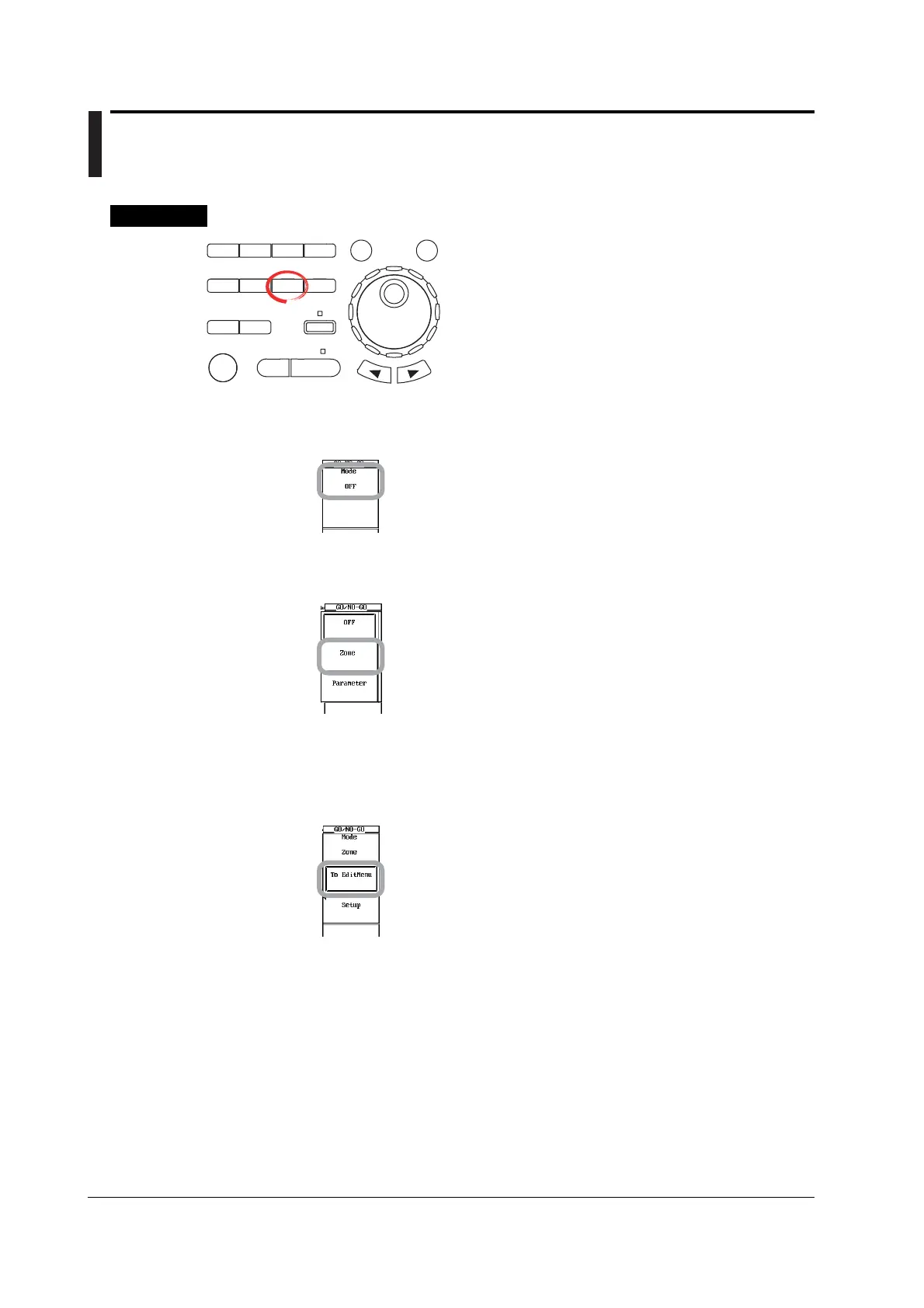

10.9 Performing GO/NO-GO Determination Using
Zones
Procedure
X-Y
PHASE
MENU MENU
SETUP FILE
MISC
RESET
SELECT
MATH
SHIFT
GO/NOGO
CURSOR
MEASURE
HISTORY
PRINT
ACQ
START/STOP
IMAGE SAVE
DISPLAY
• To exit the menu during operation, press ESC located
above the soft keys.
• In the procedural explanation below, the term
jog shuttle & SELECT refers to the operation of
selecting/setting items and entering values using the
jog shuttle and SELECT and RESET keys. For details
on this operation, see sections 4.1 or 4.2.
• For a description of the operation using a USB keyboard
or a USB mouse, see section 4.3.
1. Press GO/NOGO. The GO/NO-GO menu appears.
2. Press the Mode soft key. The Mode menu appears.
Entering the GO/NO-GO Determination Setup Menu
3. Press the Zone soft key. The Zone menu appears.
Creating Determination Zones
Stop waveform acquisition after displaying the reference waveform, and then create
the zone.
4. Press the To EditMenu soft key. The To Edit menu appears.
Creating a New Zone
5. Press the New soft key. The Trace menu appears.
6. Press the CH1 to CH8/4, Math1, or Math2 soft key to select the reference
waveform for creating the zone. The Edit menu appears.
• On the DL7440, select CH1 to CH4, Math1, or Math2.
• On the DL7480, select CH1 to CH8, Math1, or Math2. CH7, CH8, Math1, and Math2
appear when you press the To Page 2 soft key.
To Next Page
