8-18 IM 701450-01E
8.9 Setting Waveform Labels and Turning ON/OFF
the Display

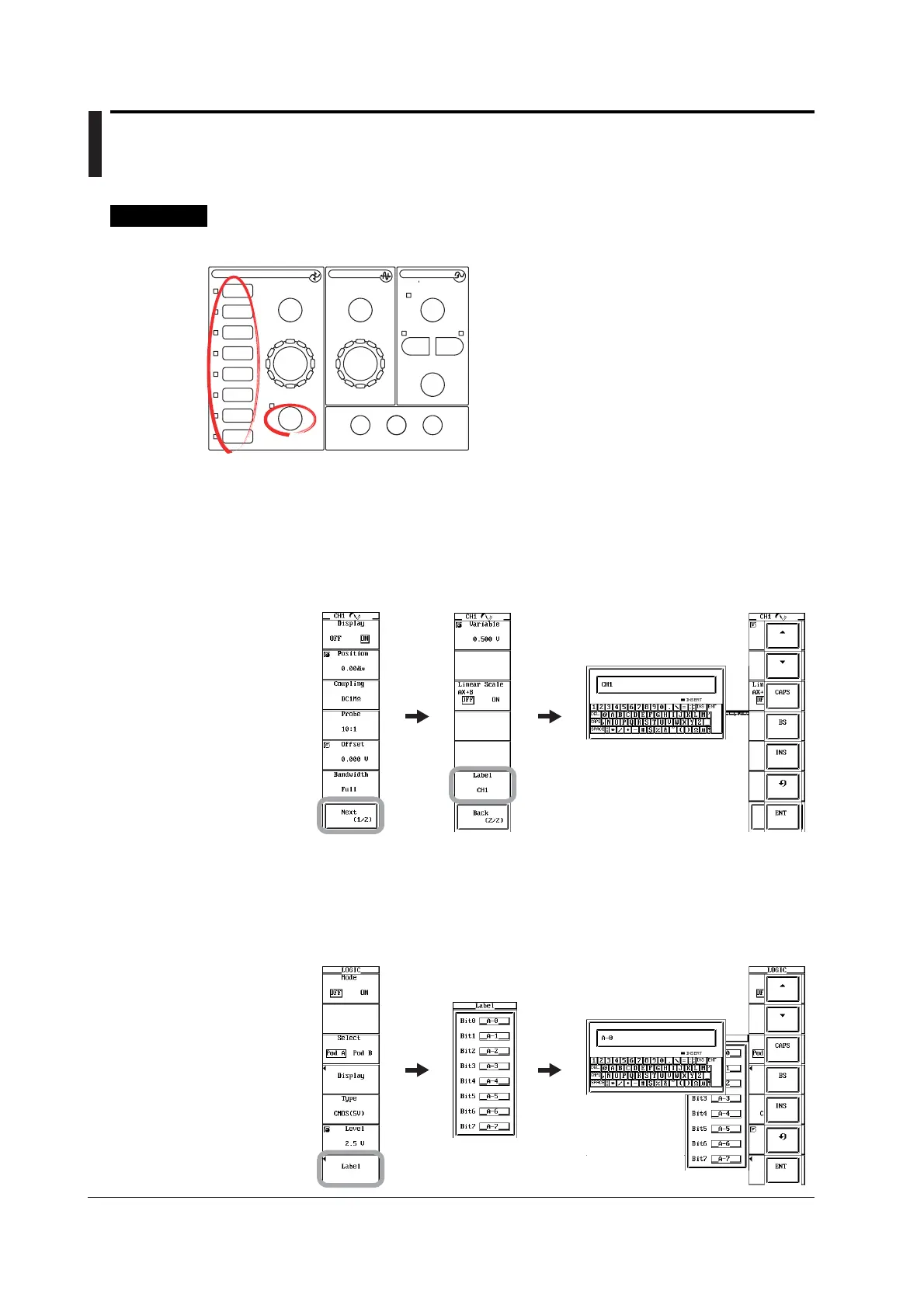

Procedure
Setting Waveform Labels
SEARCH
PRESET ZOOM MODE
POSITION
ENHANCED
SIMPLE
LOGIC
CH 1
CH 2
CH 3
CH 4
CH 5
CH 6
CH 7
CH 8
V/DIV TIME/DIV
VERTICAL TRIGGER
TRIG D
ACTION
DELAY
CLEAR TRACESNAPSHOT HELP
HORIZONTAL
• To exit the menu during operation, press ESC located
above the soft keys.
• For a description of the operation using a USB keyboard or
a USB mouse, see section 4.3.
Setting Waveform Labels for CH1 to CH8
1. Press one of the CH1 to CH8/4 keys to select the channel to which a waveform
label is to be assigned.
You can select up to CH4 and CH8 on the DL7440 and DL7480, respectively.
2. Press the Next (1/2) soft key. The page 2 menu appears.
3. Press the Label soft key. A keyboard used to enter values and strings appears.
4. Use jog shuttle & SELECT to set the waveform label.
Setting LOGIC Waveform Labels
1. Press LOGIC. The LOGIC menu appears.
2. Press the Label soft key. The Label dialog box opens.
3. Use jog shuttle & SELECT to select the bit to which the waveform label is to be
assigned. A keyboard used to enter values and strings appears.
4. Use jog shuttle & SELECT to set the waveform label.
