Explanation of Functions
Printing Screen Images <For the setup procedure, see chapter 11>
Screen images can be printed on the built-in printer (option), USB printer, or network
printer (when the Ethernet interface option is installed).
Saving and Loading Data from the Storage Medium <For the setup procedure, see
chapter 12>
The DL740 allows various data to be stored to and loaded from the following storage
media.
• Floppy disk or Zip disk (selected at the time of purchase)
• PC card (comes standard)
• External SCSI device (MO disk drive, hard disk drive, etc. When the SCSI interface
option is installed)
• External USB storage (MO disk drive, hard disk drive, and flash memory)
• Network drive (when the Ethernet interface option is installed)

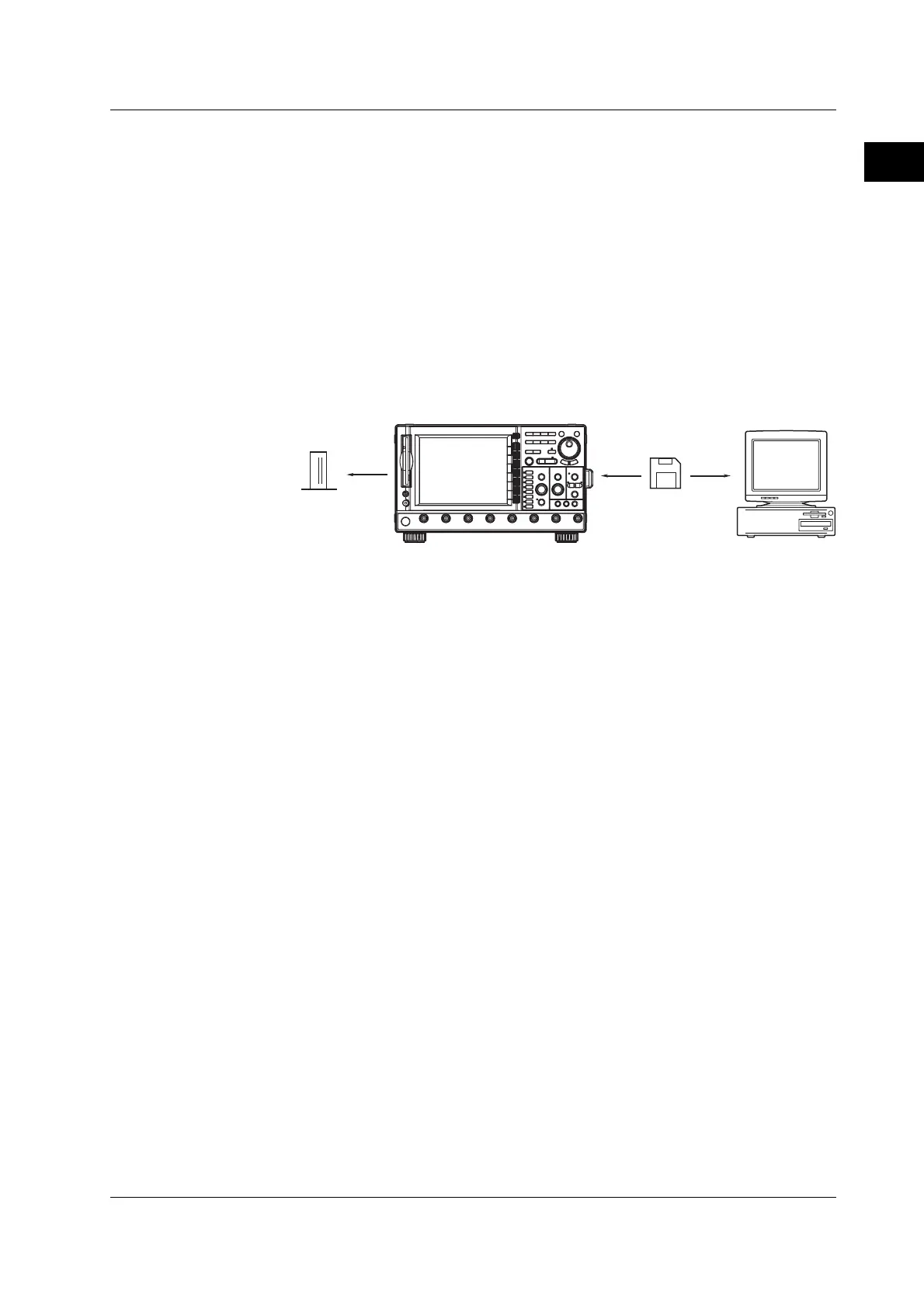

Floppy disk, Zip disk,
or PC card
MO/Hard disk
drive, etc.
PC
DL7400
Saving and Loading Setup Data, Waveform Data, and Snapshot Waveforms <For
the setup procedure, see sections 12.7, 12.8, and 12.9>
The setup data, waveform data, and snapshot waveforms can be saved to or loaded
from a selected storage medium.
Saving Screen Image Data and Displaying the Thumbnails of the Stored Screen
Image Data <For the setup procedure, see sections 12.12 and 12.13>
The screen image data can be stored to a selected storage medium. The data can be
stored in TIFF, BMP, PostScript, PNG, and JPEG formats allowing the data to be pasted
on a document created with a DTP application. In addition, the thumbnails (reduced and
simplified images) of the screen image data saved to the storage medium can be
displayed on the DL7400 screen. This feature is useful for checking the contents of the
stored screen image data.
Saving Automated Measurement Values of Waveform Parameters and Detailed
Analysis List of SPI Signals
The automated measurement values of waveform parameters and the detailed analysis
list of SPI signals can be saved to a selected storage medium.
Operating the DL7400 Using a Free Software Program
The DL7400 can be controlled from a PC using Wirepuller, a free software program,
when connected via the GP-IB, USB, or Ethernet interface. The software program can
be downloaded from the following Web pages.
• English version: http://www.yokogawa.com/tm/Bu/software.htm
• Japanese version: http://www.yokogawa.co.jp/Measurement/F-SOFT/
