YOKOGAWA DL7440 User Manual

5-17
IM 701450-01E
5
Vertical and Horizontal Axes

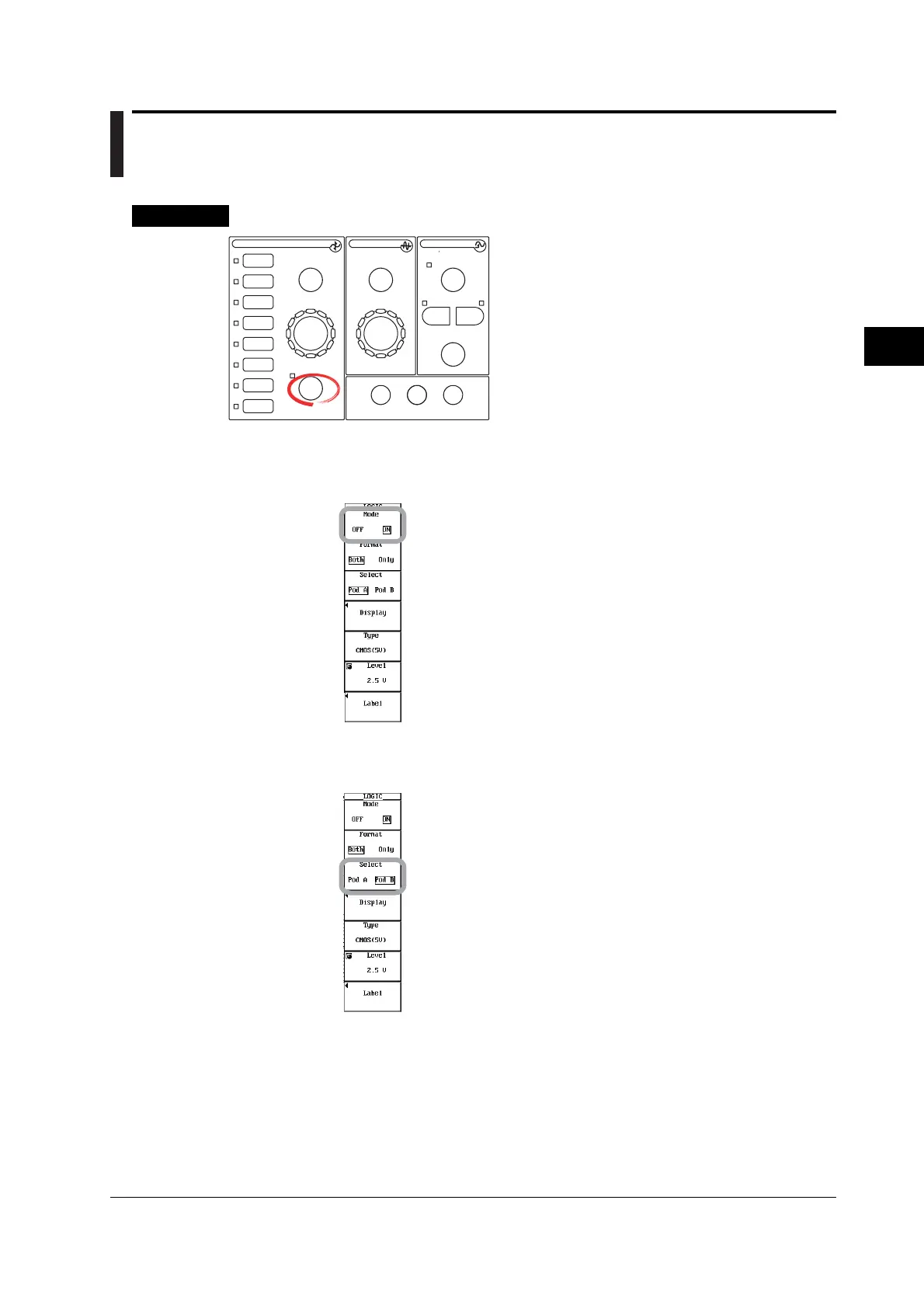

5.10 Turning ON/OFF the Logic Input and Setting
the Threshold Level
Procedure
SEARCH
PRESET ZOOM MODE
POSITION
ENHANCED
SIMPLE
LOGIC
CH 1
CH 2
CH 3
CH 4
CH 5
CH 6
CH 7
CH 8
V/DIV TIME/DIV
VERTICAL TRIGGER
TRIG D
ACTION
DELAY
CLEAR TRACESNAPSHOT HELP
HORIZONTAL
• To exit the menu during operation, press ESC located
above the soft keys.
• In the procedural explanation below, the term
jog shuttle & SELECT refers to the operation of
selecting/setting items and entering values using the
jog shuttle and SELECT and RESET keys. For details
on this operation, see sections 4.1 or 4.2.
• For a description of the operation using a USB keyboard
or a USB mouse, see section 4.3.
Turning ON/OFF the Logic Input
1. Press LOGIC. The LOGIC menu appears.
2. Press the Mode soft key to select ON or OFF.
Selecting the Target Pod
3. Press the Select soft key to select Pod A or Pod B.
